Home >> Cadillac >> 2009 >> XLR V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch >> Seat Adjuster Switch - Driver

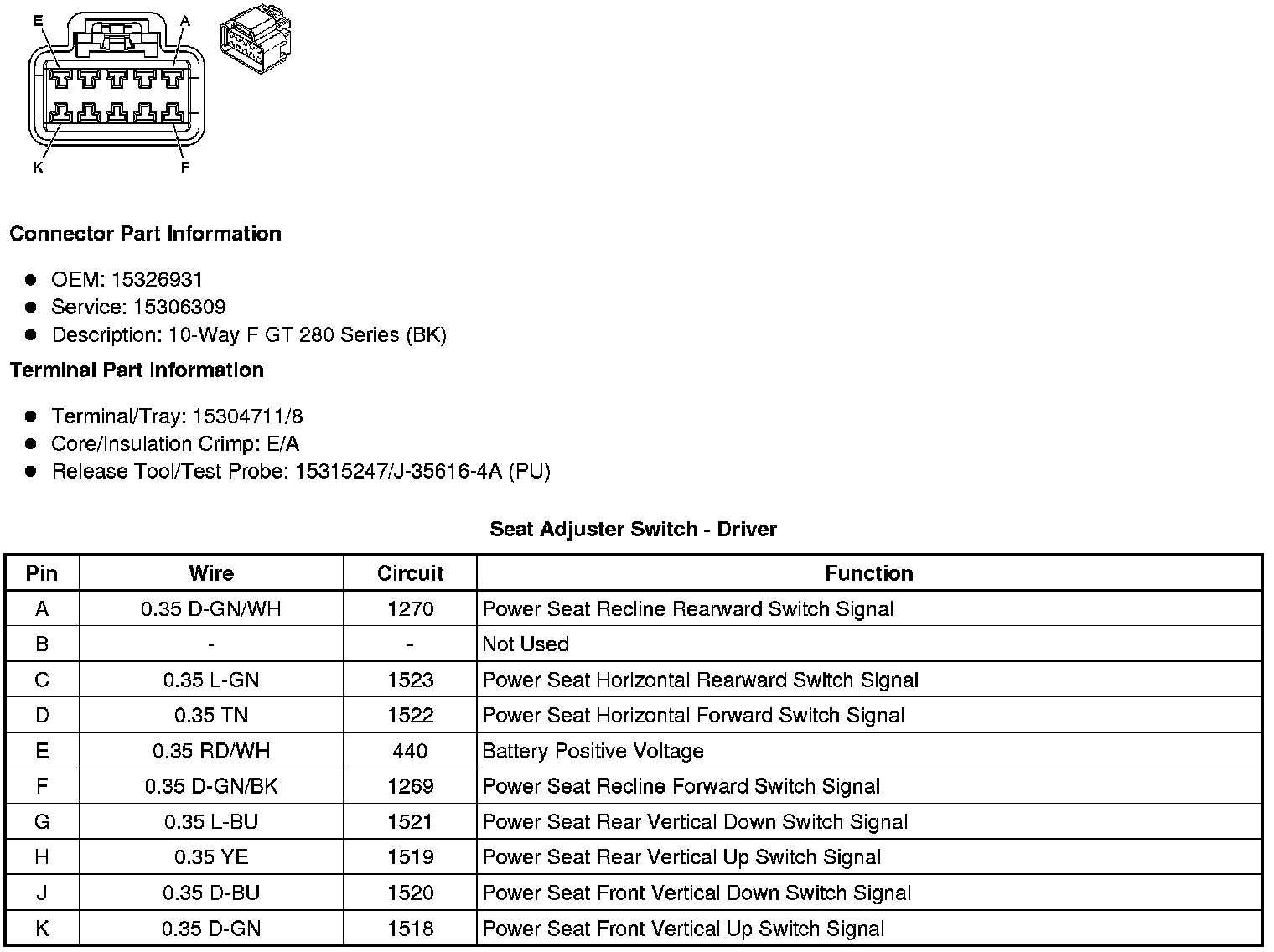

Seat Adjuster Switch - Driver




Component Connector End Views

Seat Adjuster Switch - Driver
