X435
X435

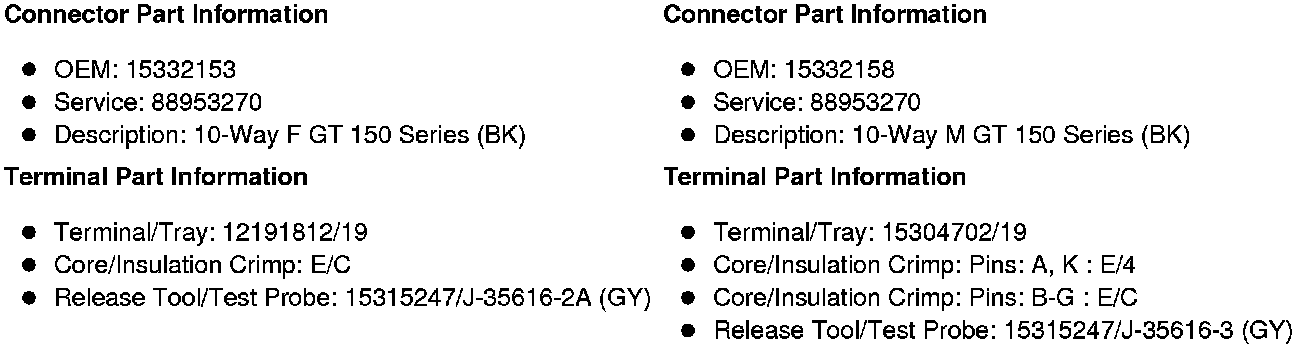

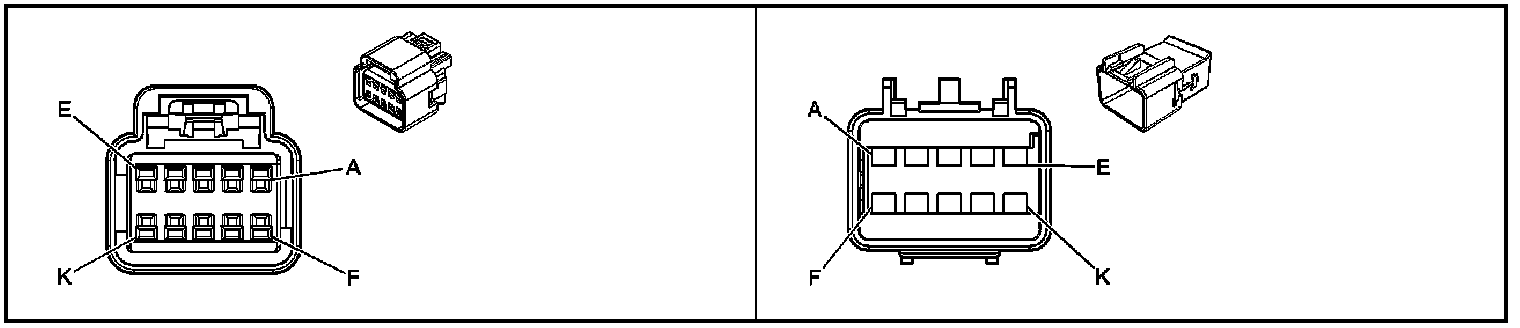

Inline Harness Connector End Views

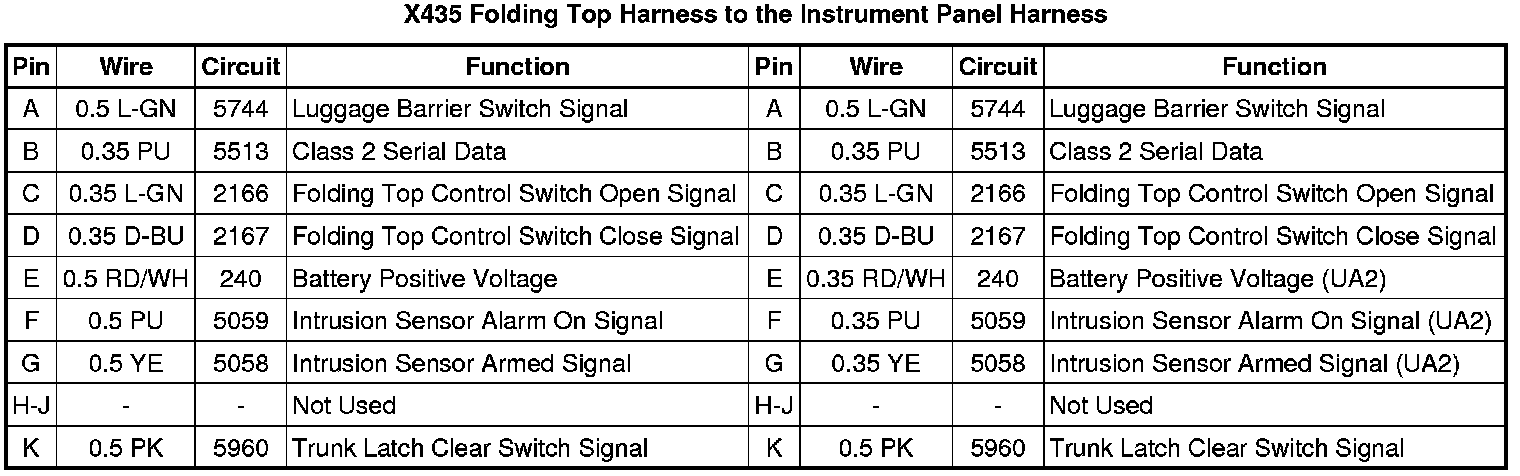

X435 Folding Top Harness to the Instrument Panel Harness
