X379
X379

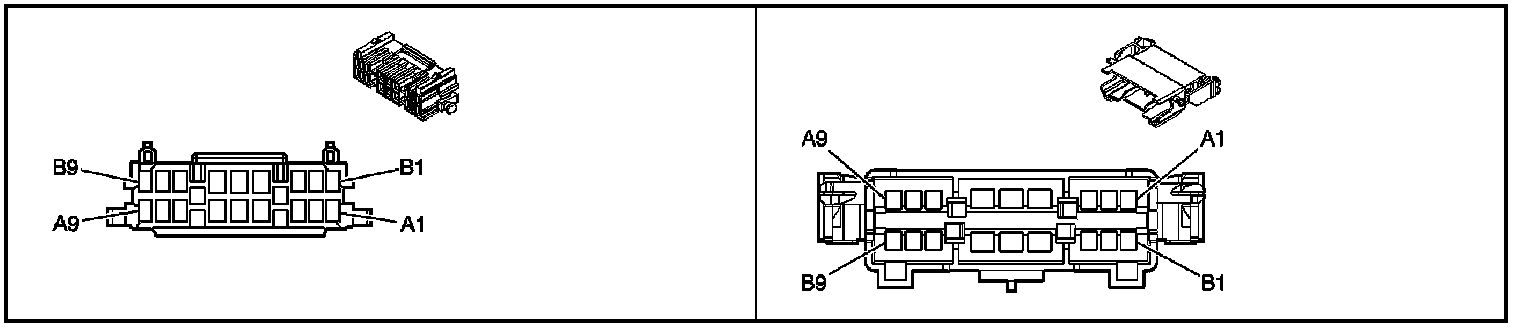

Inline Harness Connector End Views

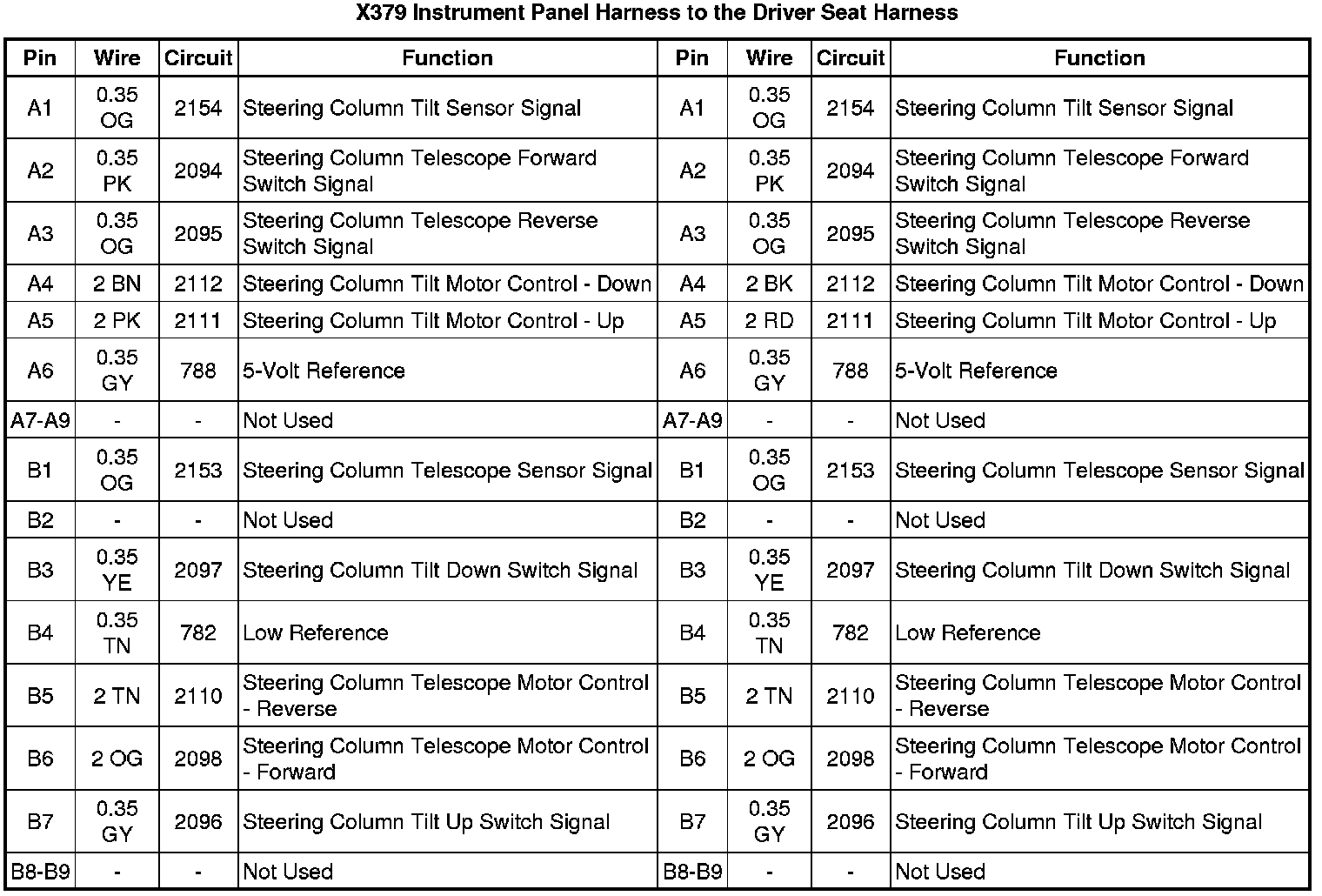

X379 Instrument Panel Harness to the Driver Seat Harness
