X231
X231

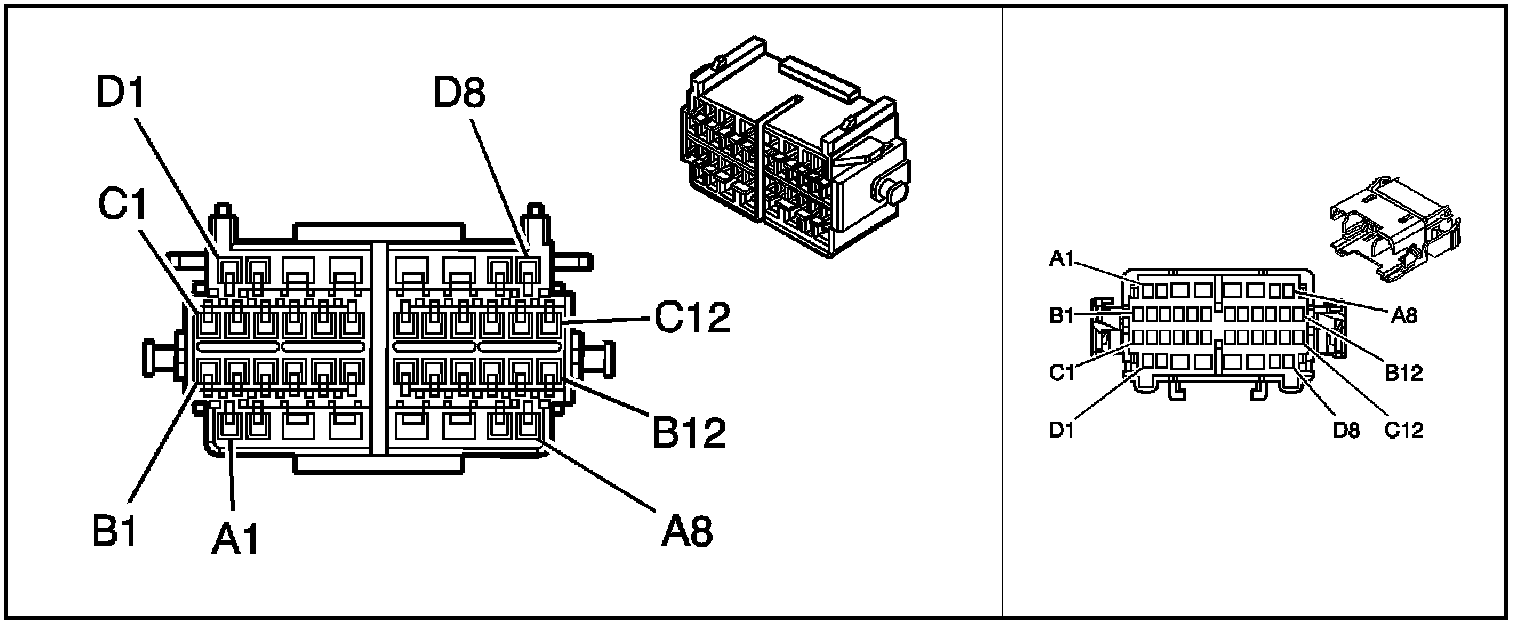

Inline Harness Connector End Views

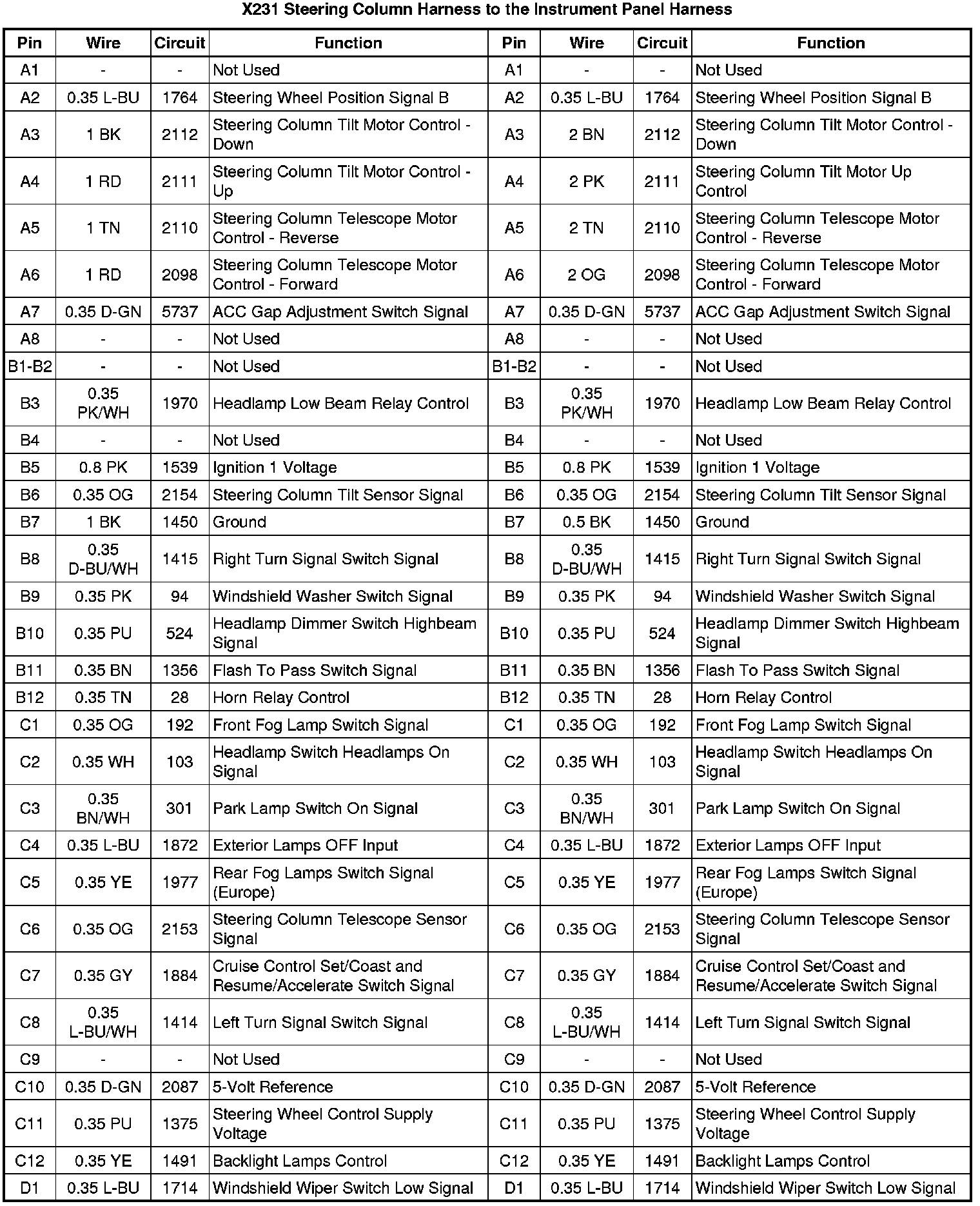

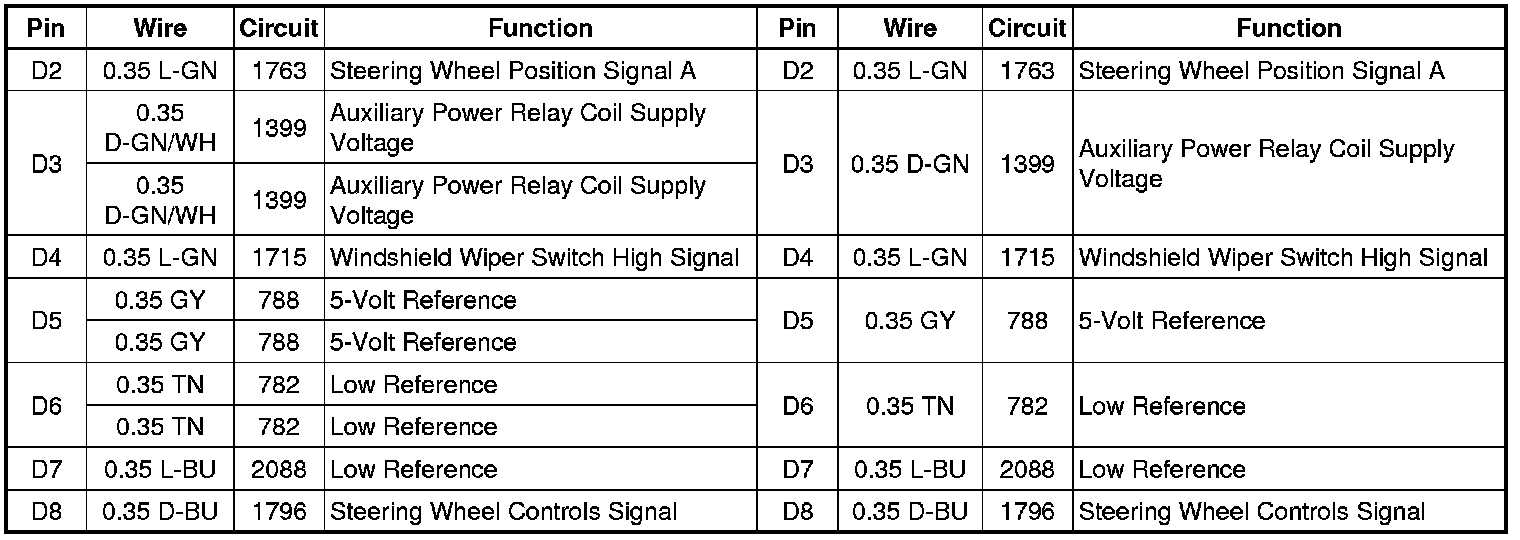

X231 Steering Column Harness to the Instrument Panel Harness
