Home
>>
Cadillac
>>
2009
>>
XLR V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
License Plate Lamp
>>
License Lamp - Left
License Lamp - Left

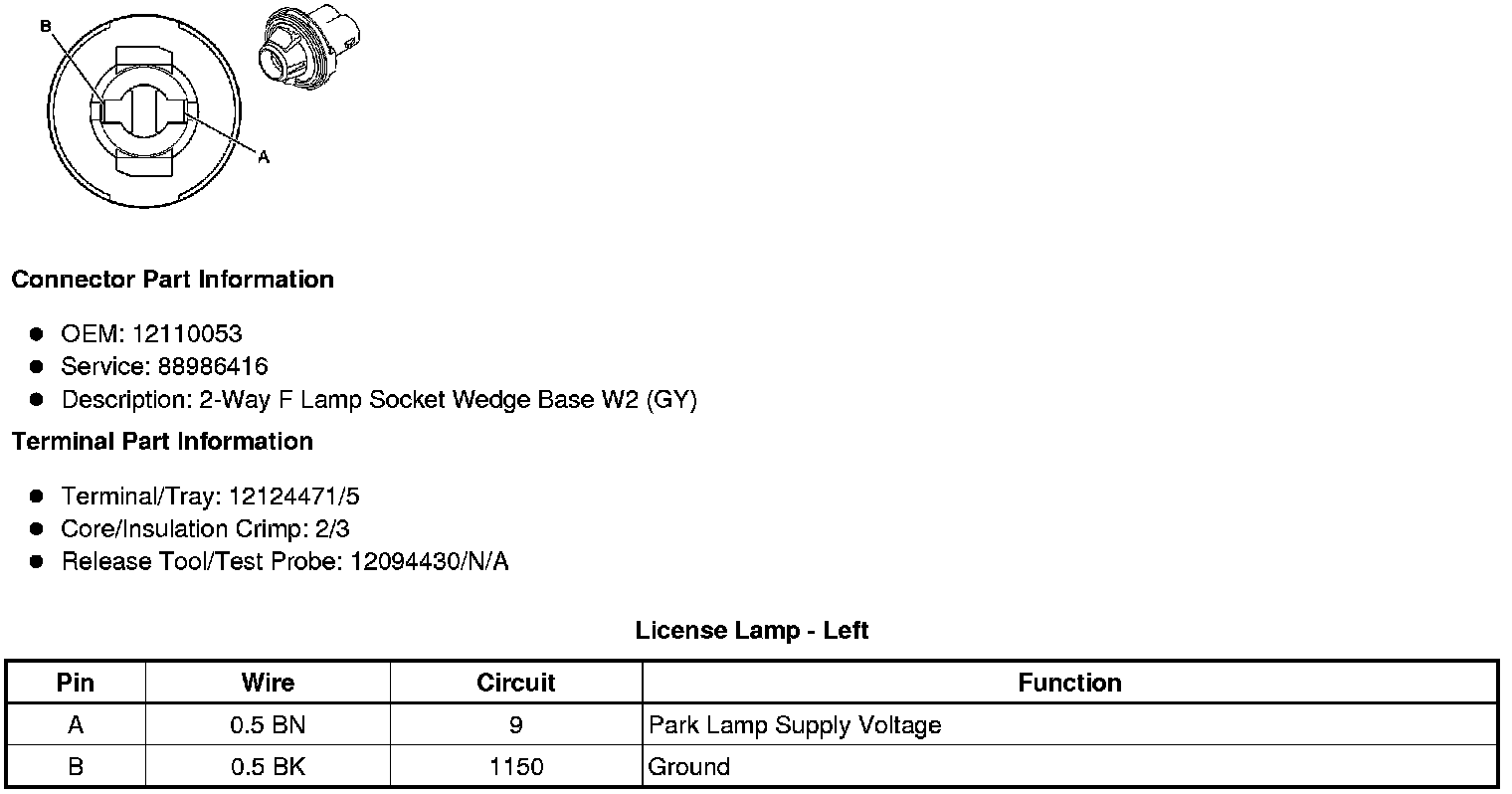

Component Connector End Views
License Lamp - Left
