Home
>>
Cadillac
>>
2009
>>
XLR V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Coil
>>
Ignition Coil 4
Ignition Coil 4

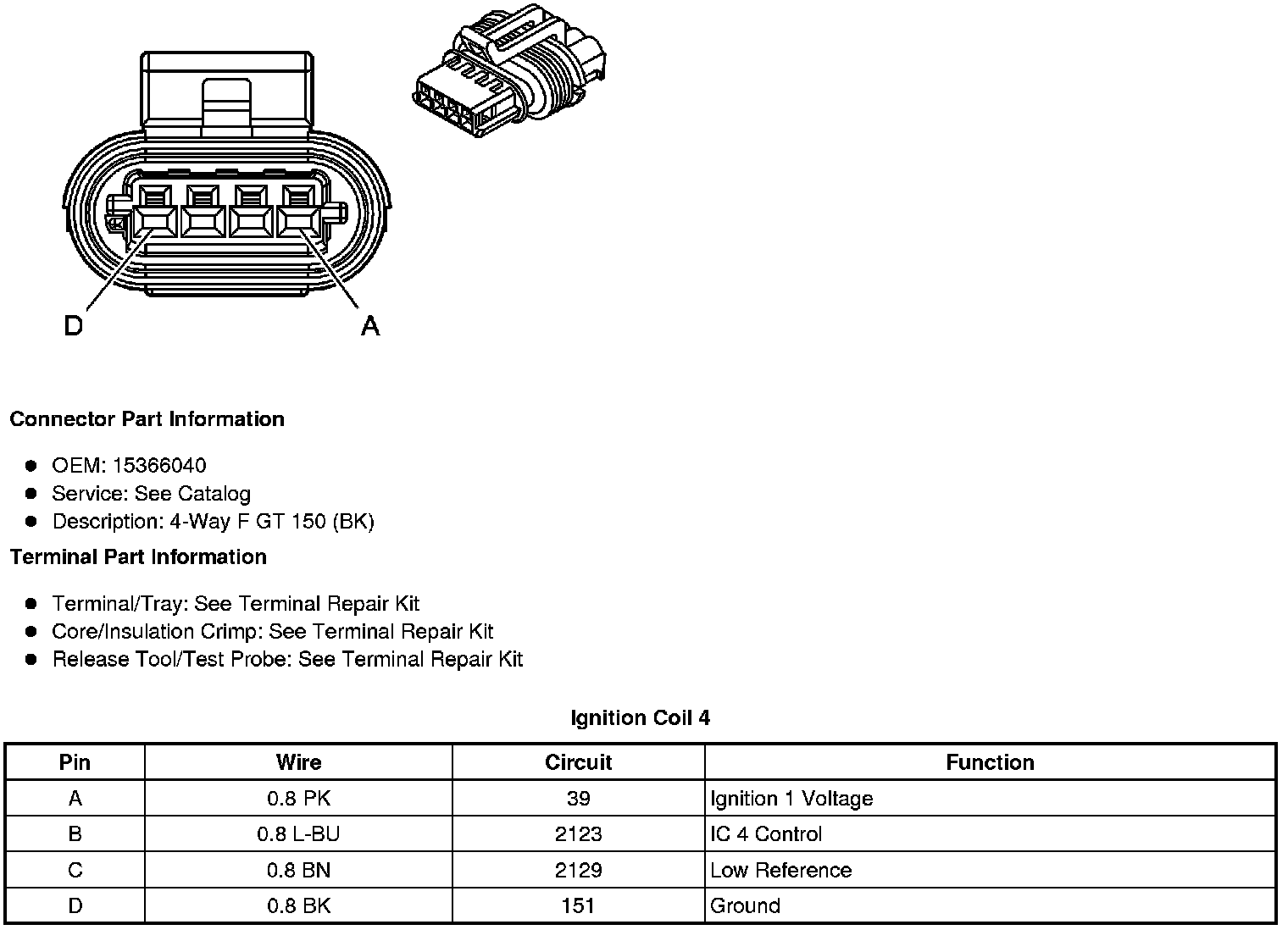

Component Connector End Views
Ignition Coil
4
