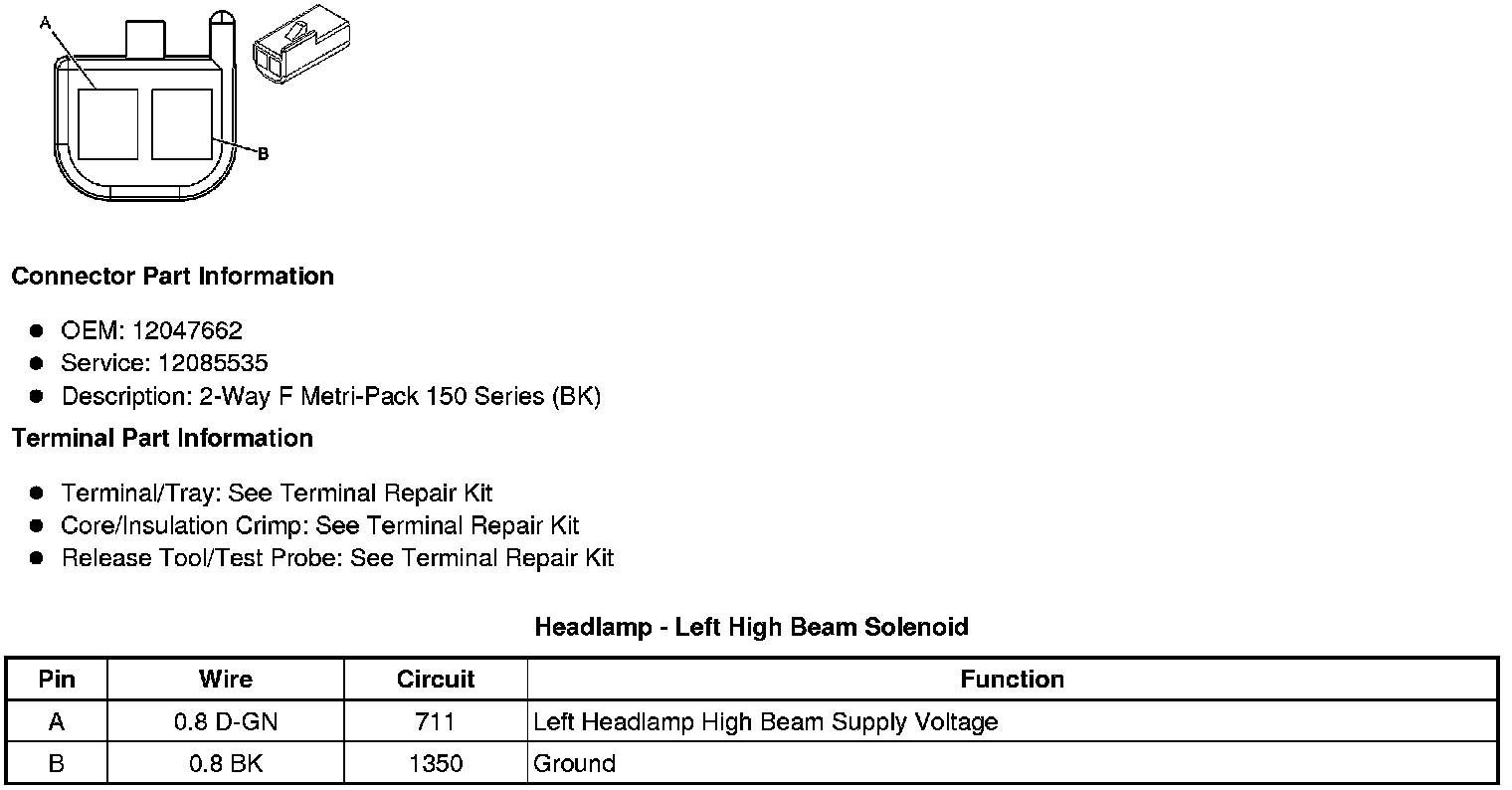

Headlamp - Left High Beam Solenoid




Component Connector End Views

Headlamp - Left High Beam Solenoid
