Damping Control Actuator
>>
Suspension Damper - Left Front
Suspension Damper - Left Front

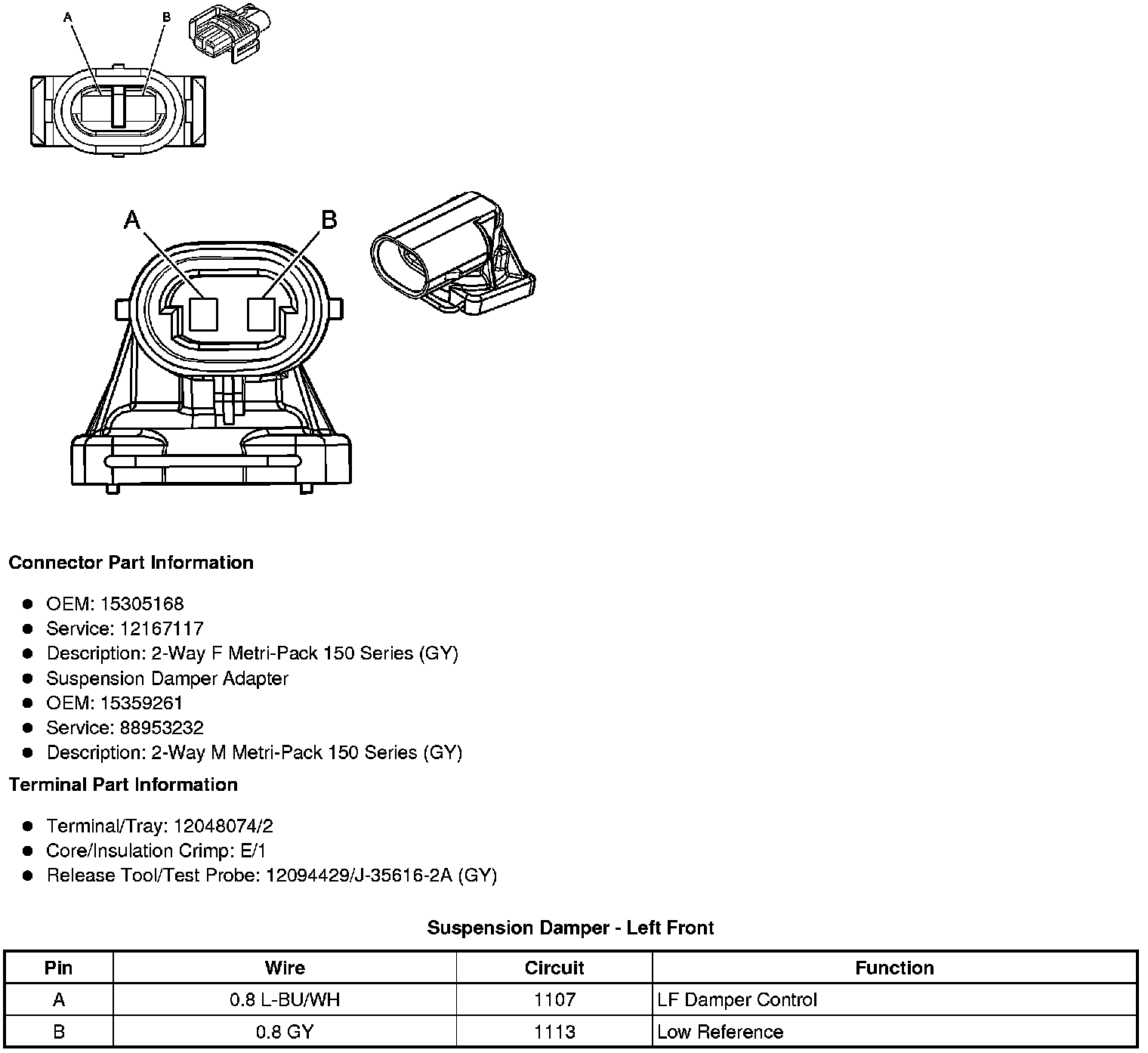

Component Connector End Views
Suspension
Damper - Left Front
