X480

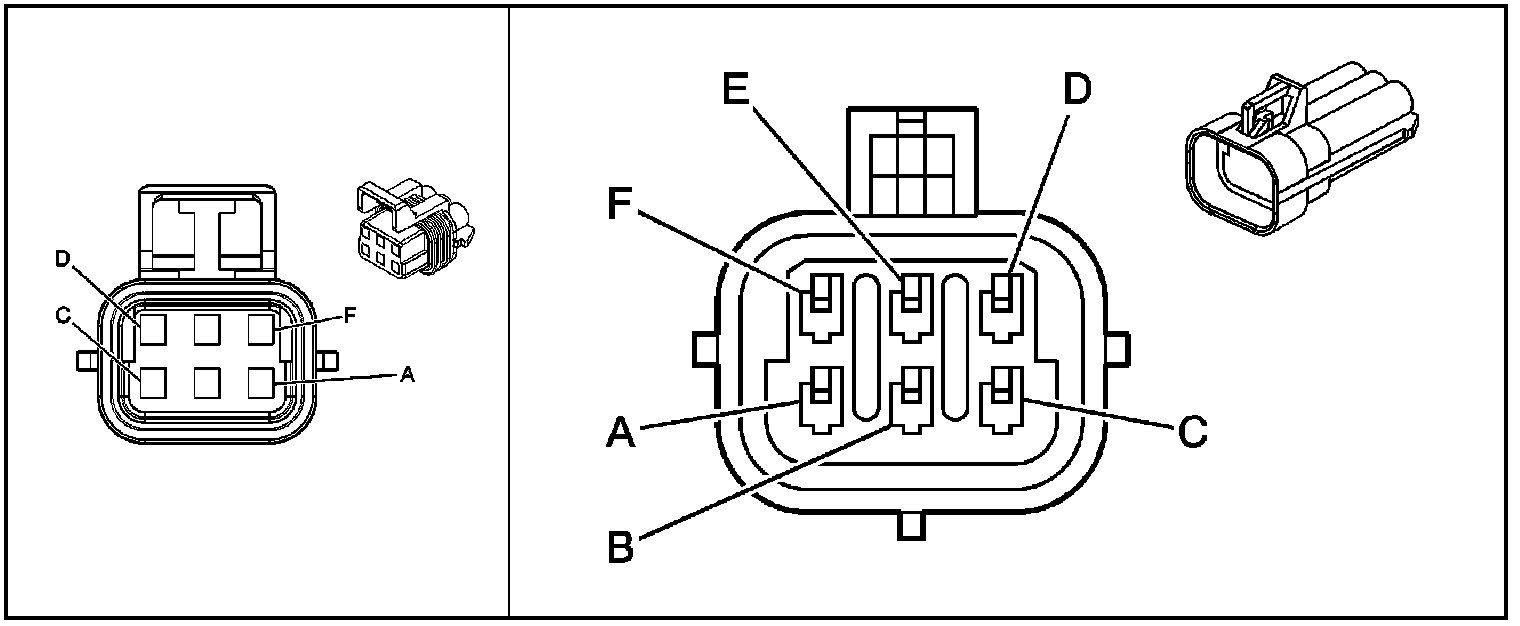

Inline Harness Connector End Views

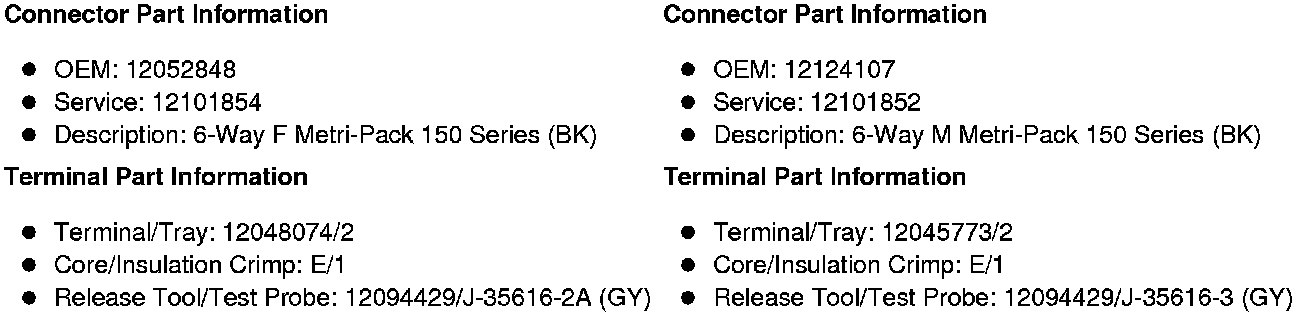

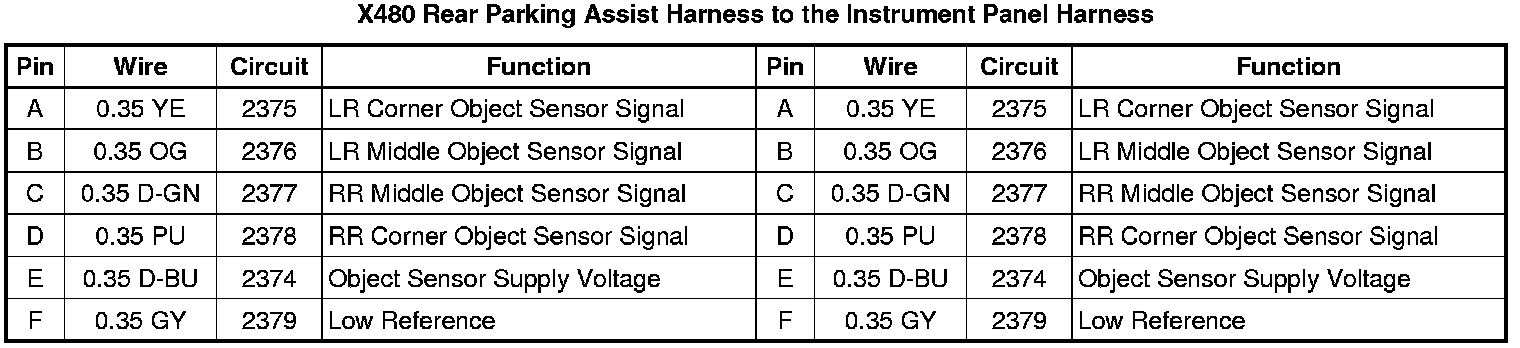

X480 Rear Parking Assist Harness to the Instrument Panel Harness
