X439
X439

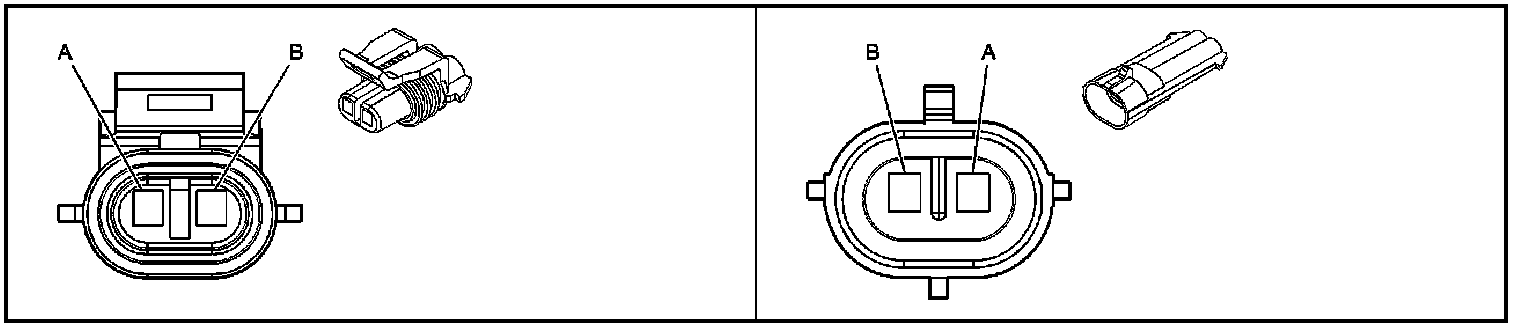

Inline Harness Connector End Views

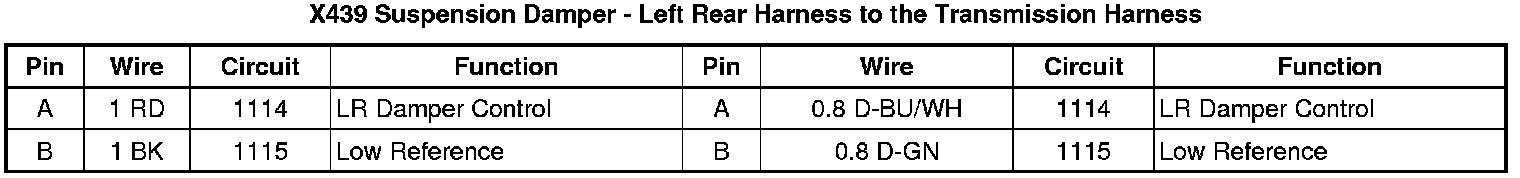

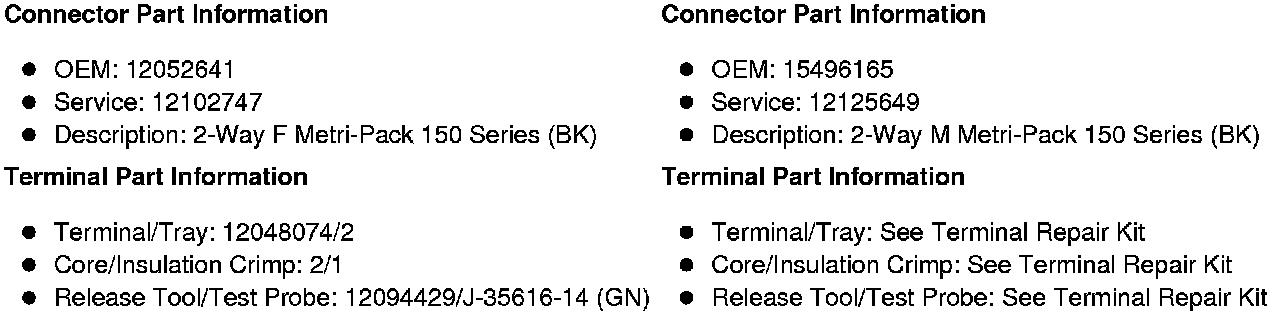

X439 Suspension Damper - Left Rear Harness to the Transmission Harness
