X311
X311

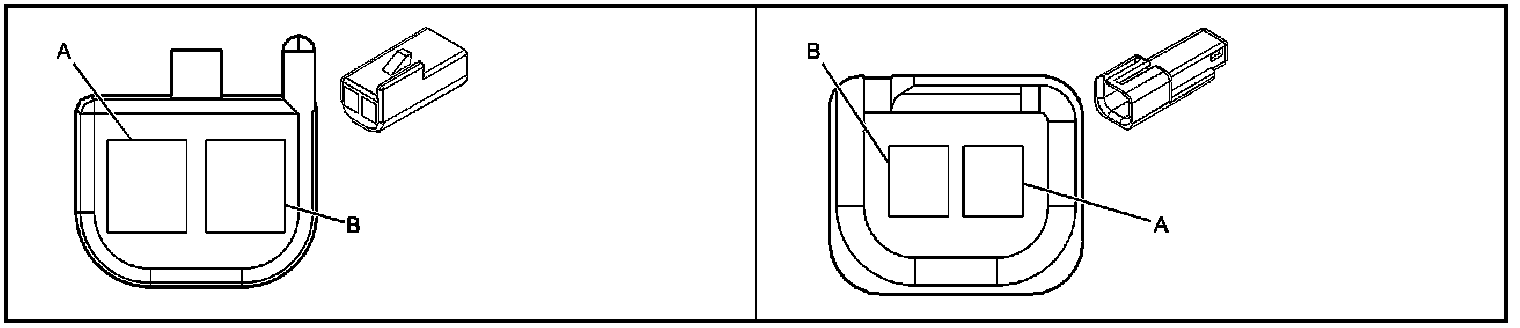

Inline Harness Connector End Views

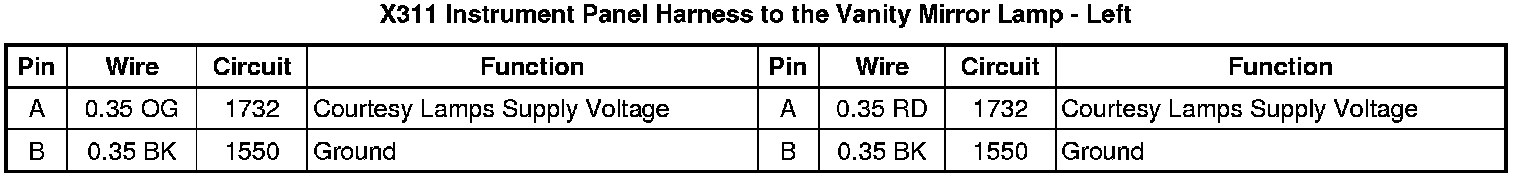

X311 Instrument Panel Harness to the Vanity Mirror Lamp - Left
