Home >> Cadillac >> 2009 >> XLR V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> X100 - X199 >> X148

X148




Inline Harness Connector End Views

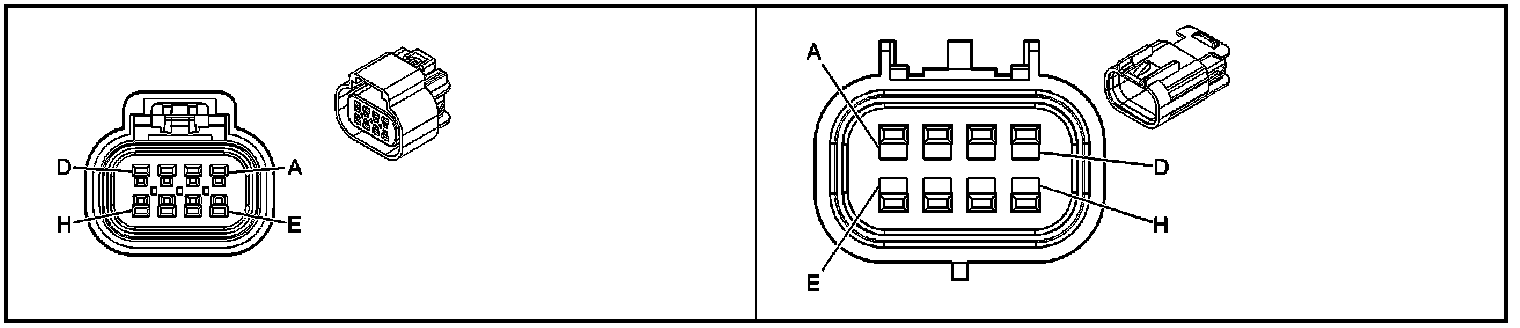

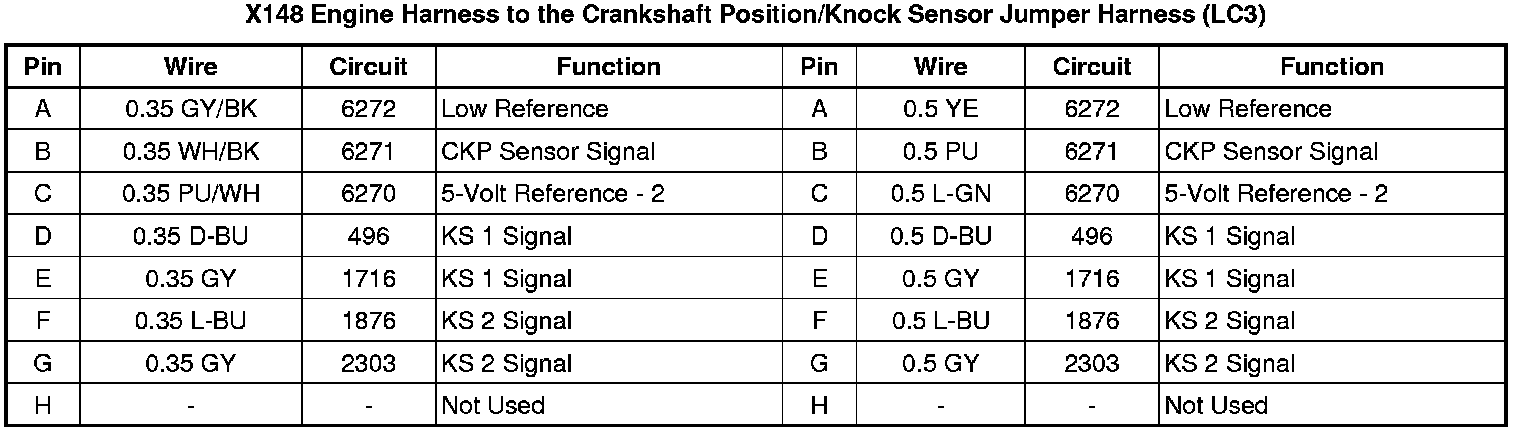

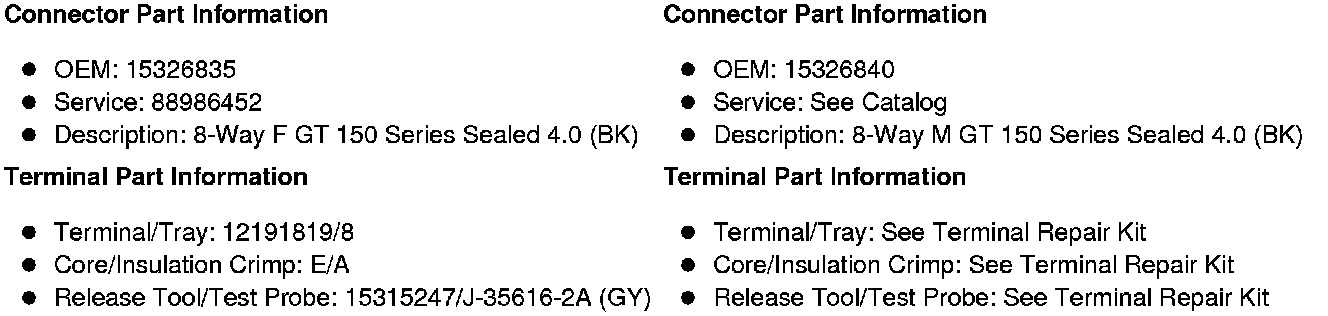

X148 Engine Harness to the Crankshaft Position/Knock Sensor Jumper Harness (LC3)

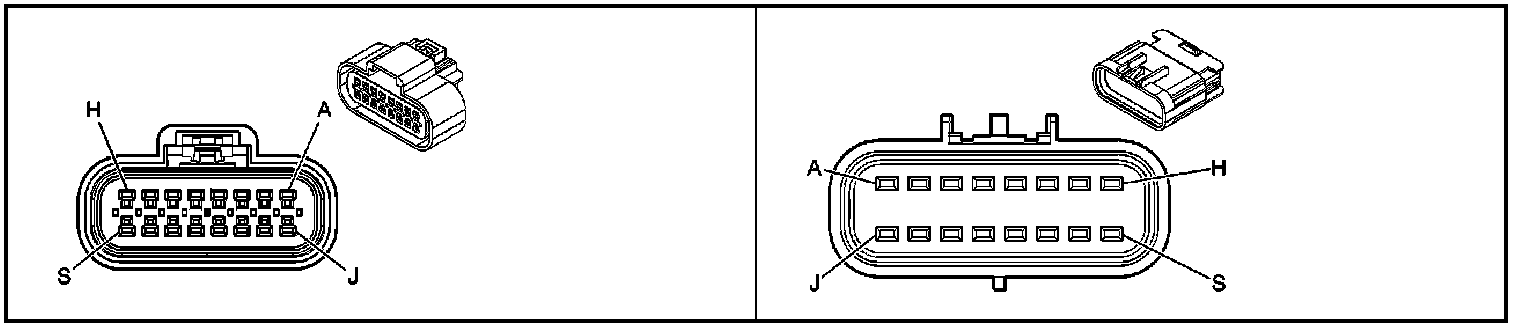

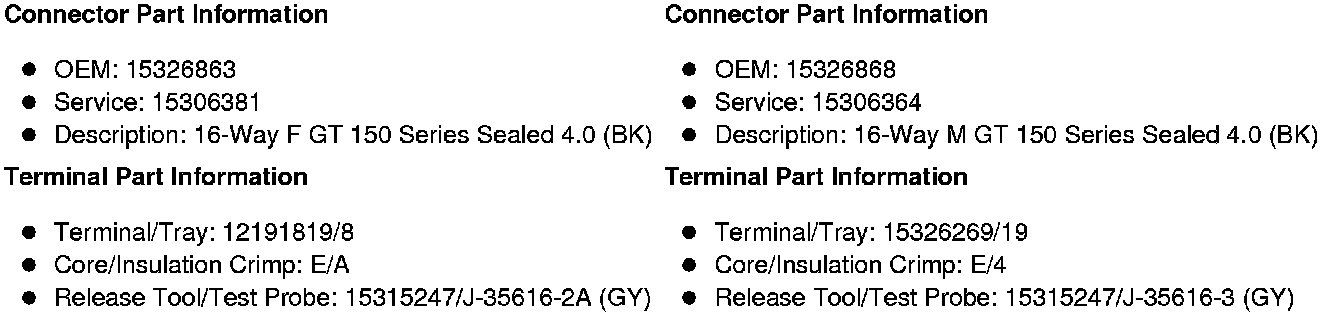

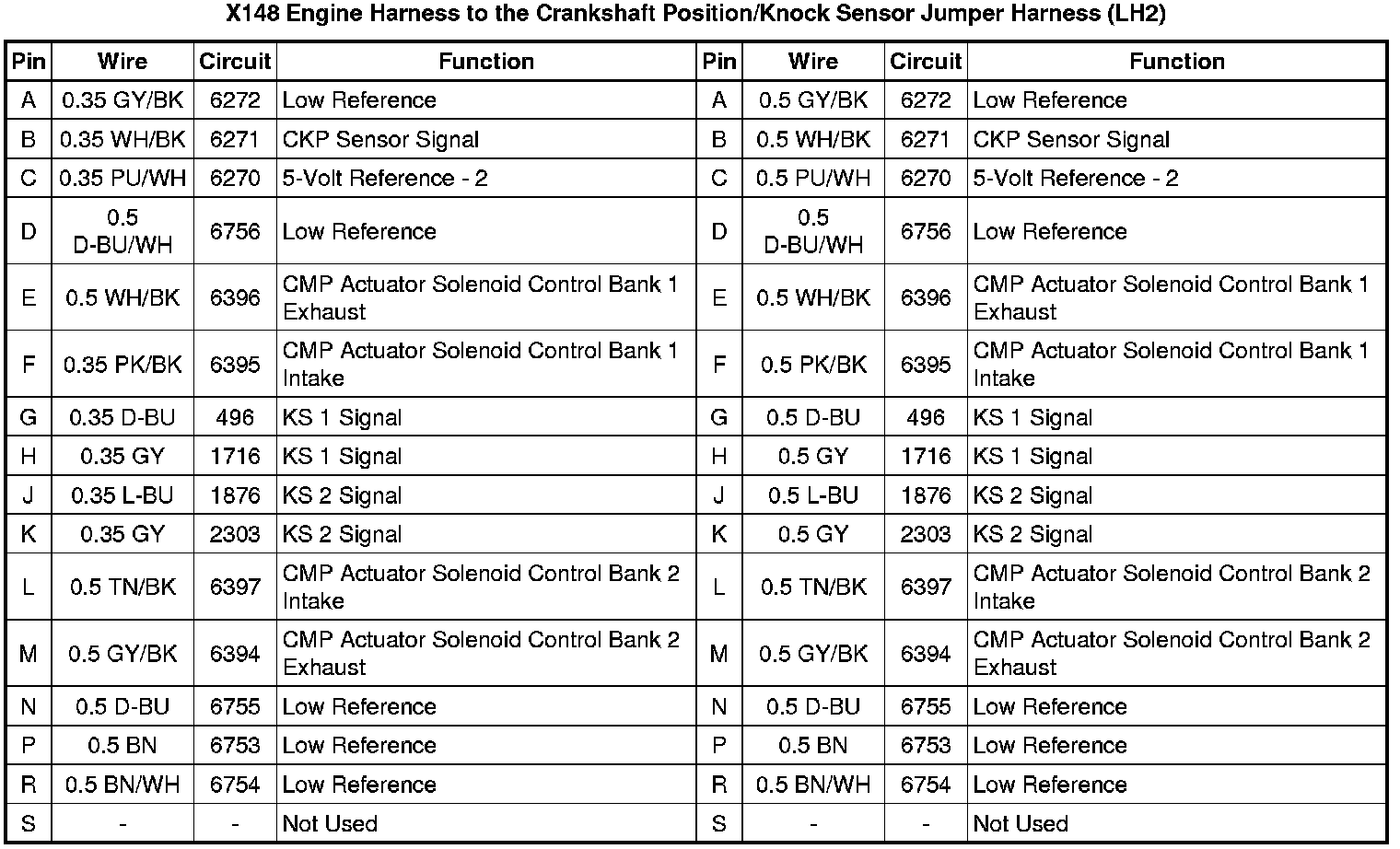

X148 Engine Harness to the Crankshaft Position/Knock Sensor Jumper Harness (LH2)
