Cadillac
>>
2009
>>
XLR V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compact Disc Player (CD)
>>
Remote CD Changer X1
Remote CD Changer X1

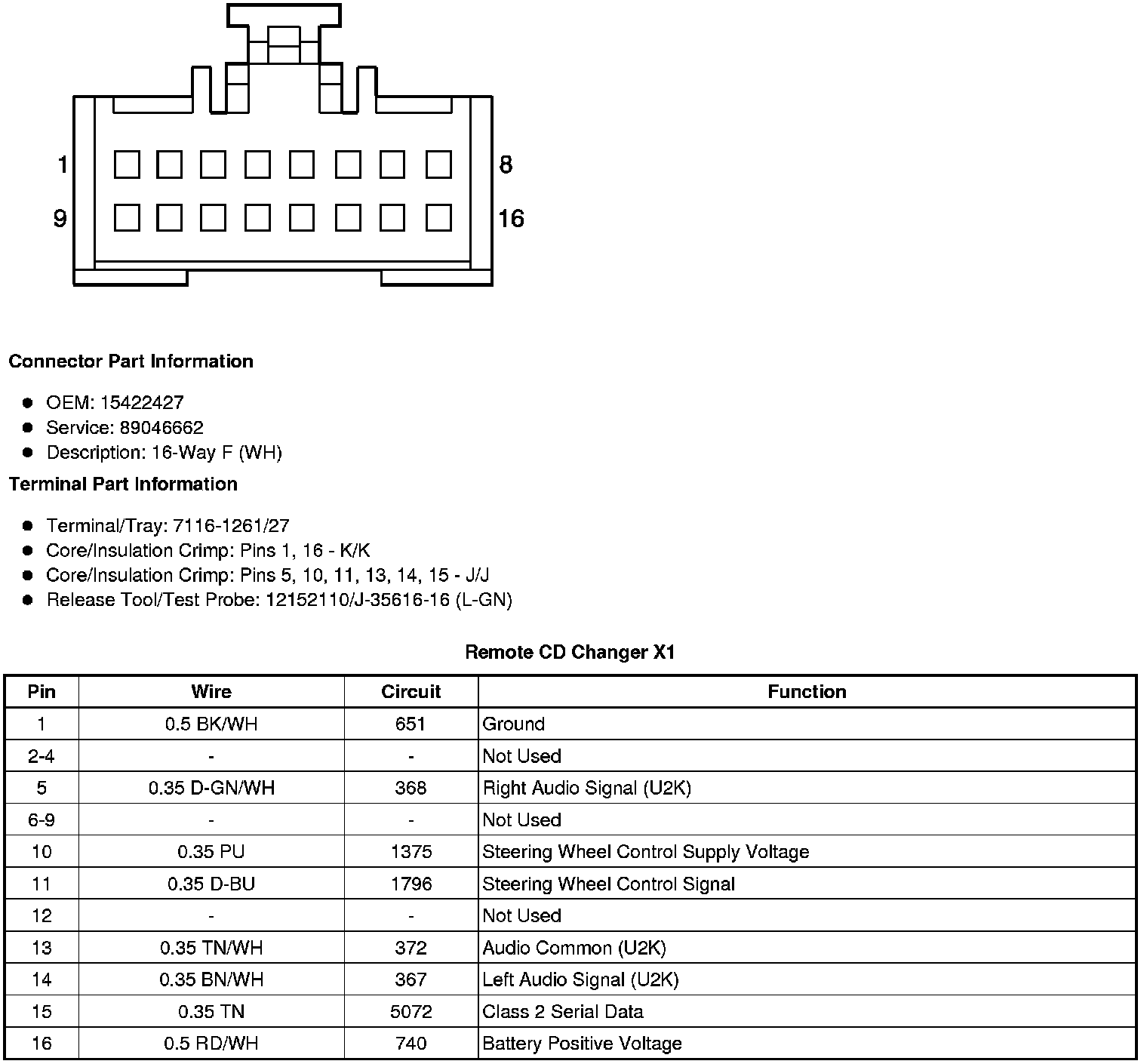

Component Connector End Views
Remote CD Changer X1
