LEMON Manuals
: Even more car manuals for everyone
Home
>>
Cadillac
>>
2009
>>
XLR V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cellular Phone Microphone
>>
Noise Compensation Microphone
Noise Compensation Microphone

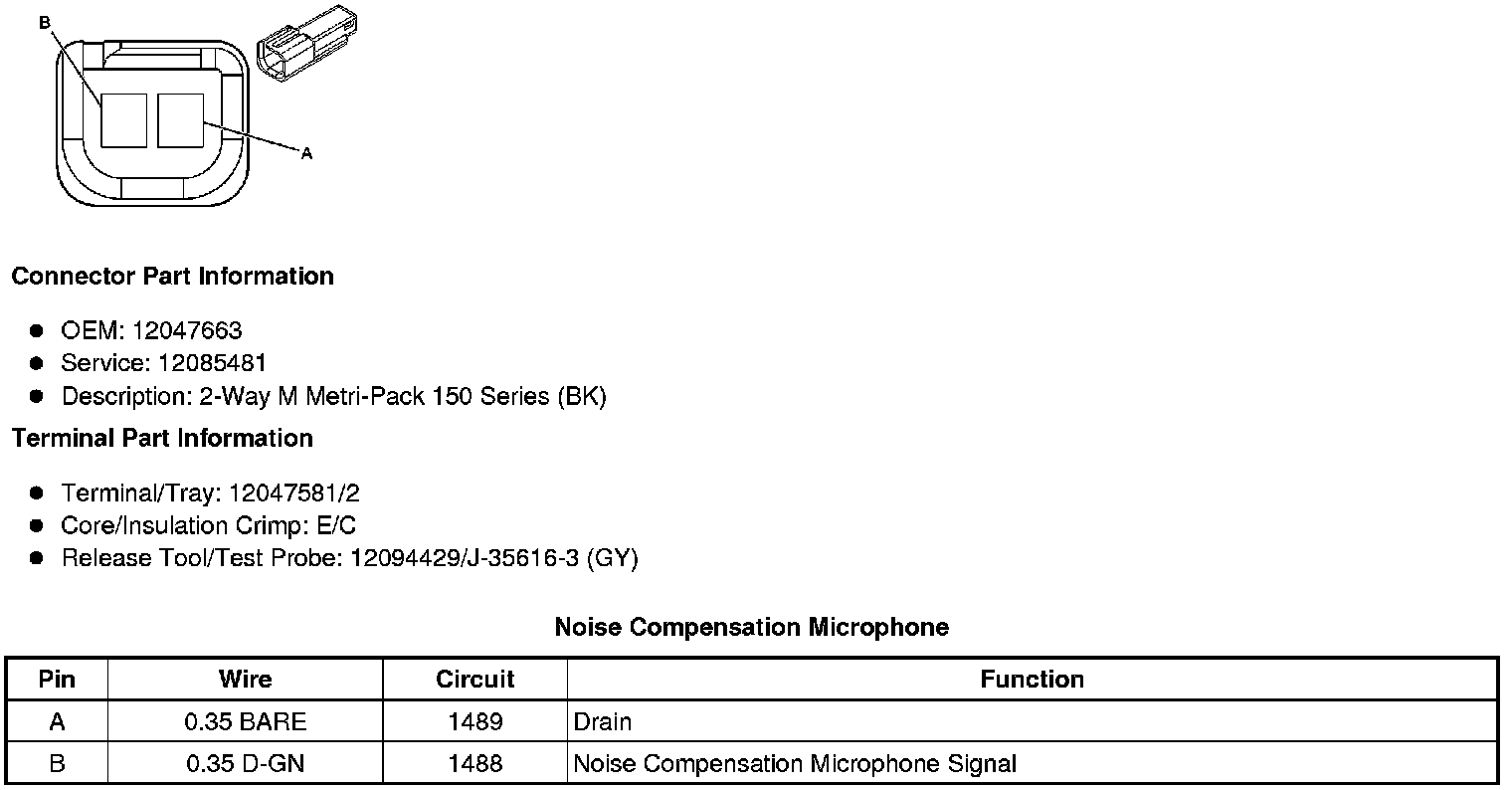

Component Connector End Views
Noise Compensation Microphone
