Canister Purge Solenoid
Canister Purge Solenoid

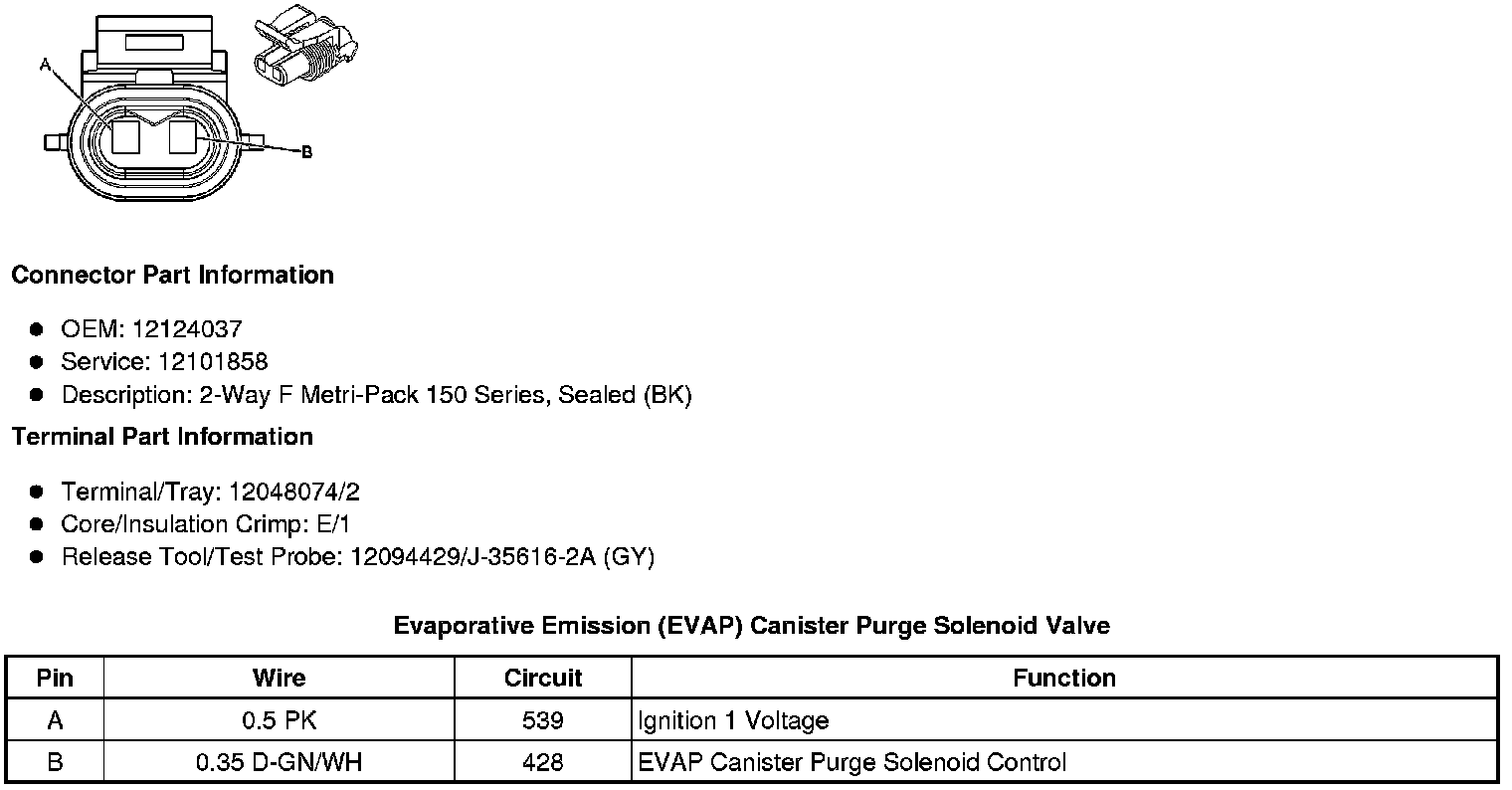

Component Connector End Views
Evaporative Emission (EVAP) Canister Purge Solenoid Valve
