Amplifier, Sound System
>>

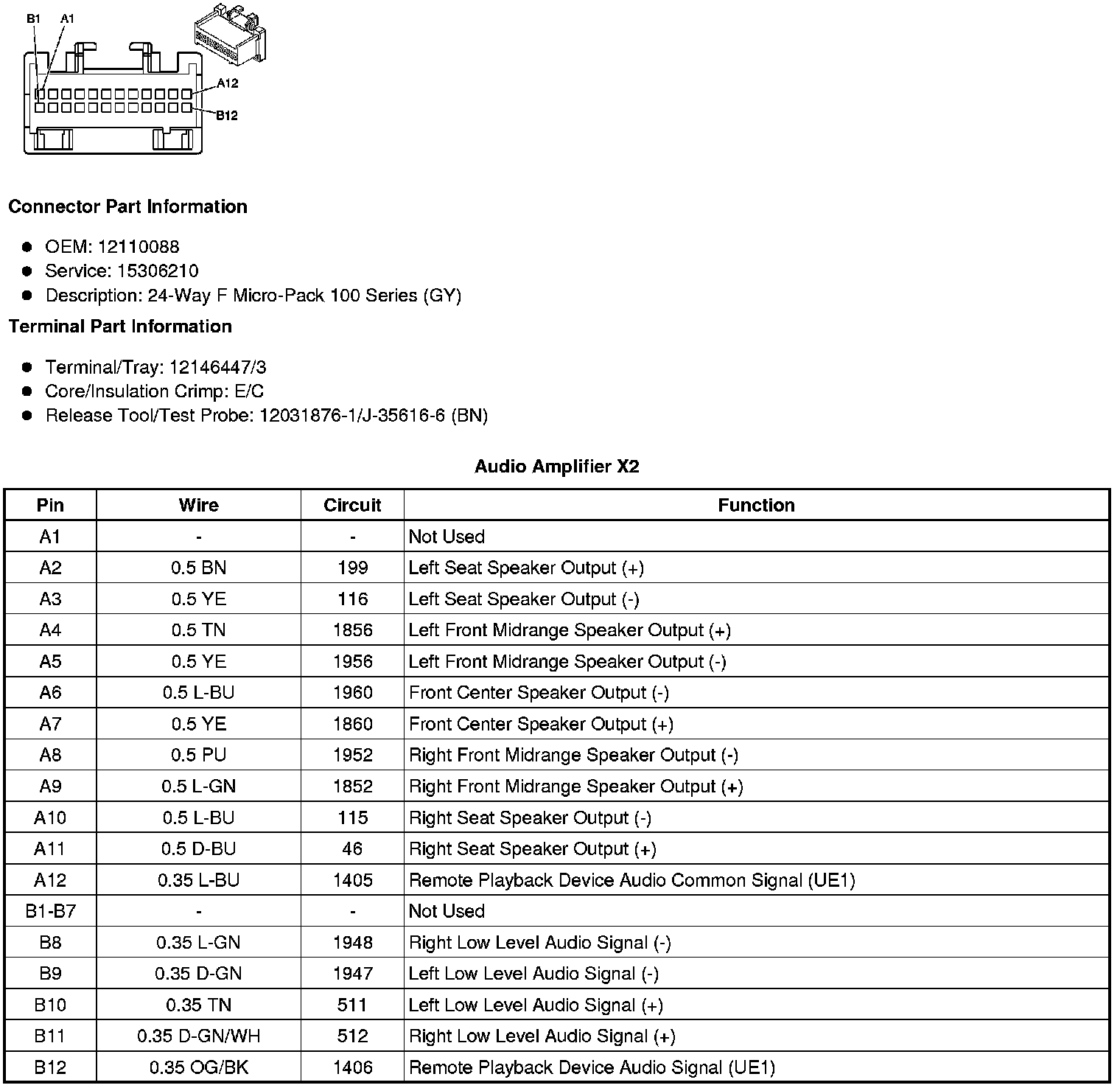

Audio Amplifier X2
Audio Amplifier X2
Component Connector End Views
Audio Amplifier X2
