Wheel Speed Sensor (WSS) - Left Rear
Wheel Speed Sensor (WSS) - Left Rear

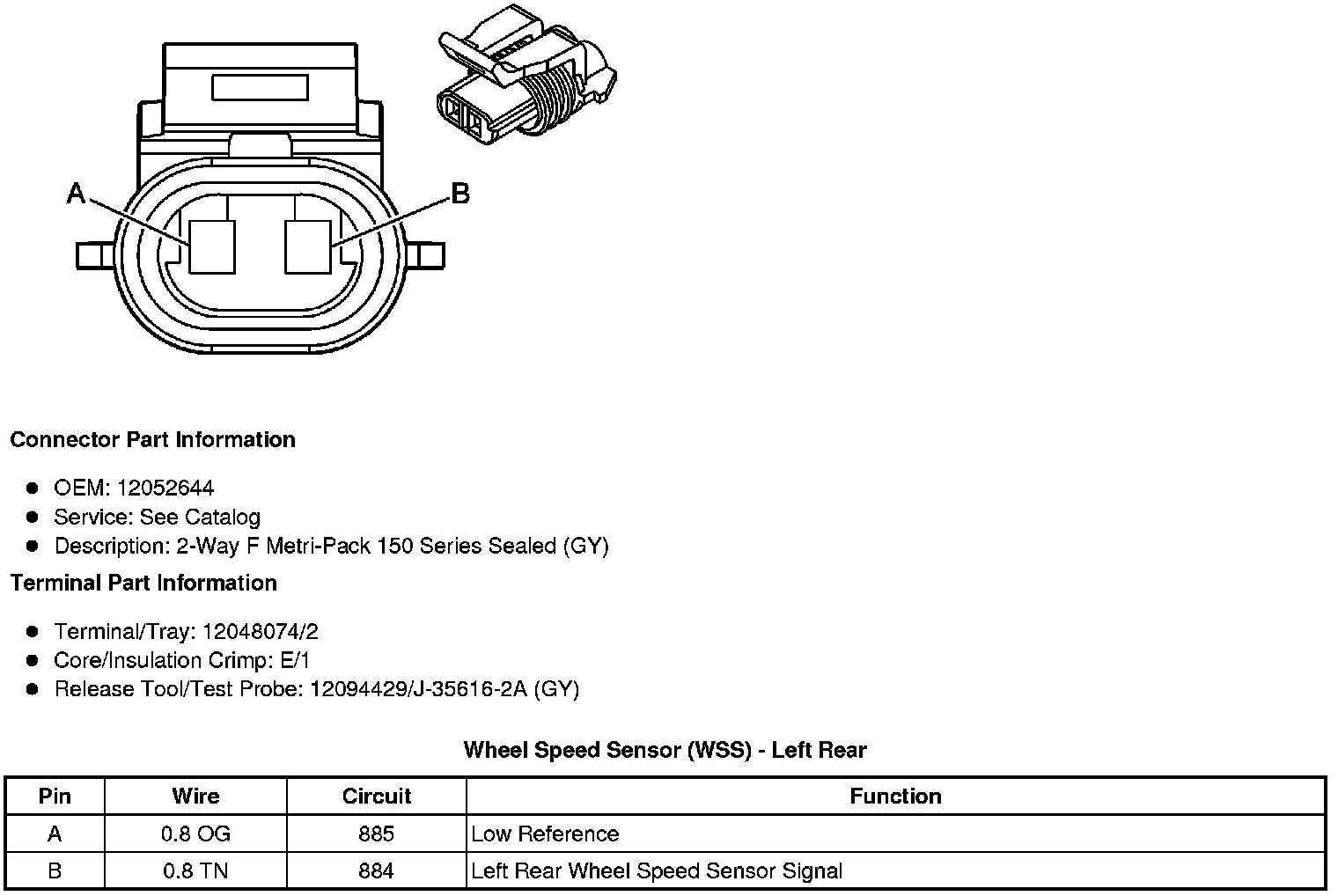

Component Connector End Views
Wheel Speed Sensor
(WSS) - Left Rear
