Trunk / Liftgate Weatherstrip: Service and Repair

Rear Compartment Lid Weatherstrip Replacement

Removal Procedure

1. Open the rear compartment.

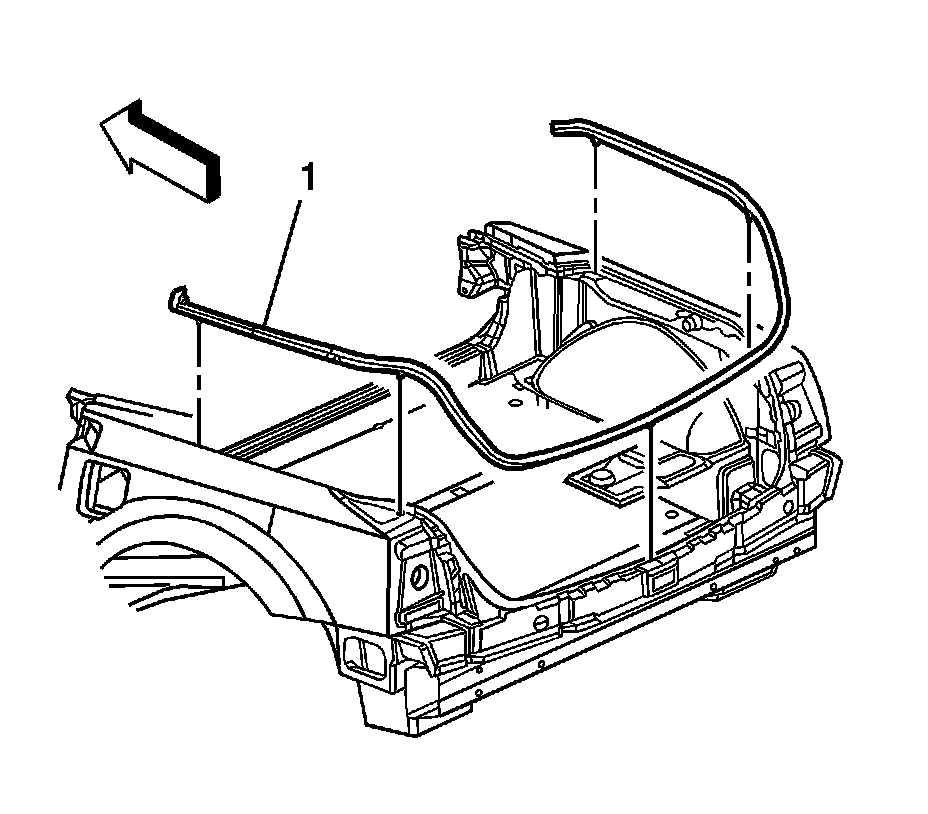

2. Pull the weatherstrip (1) from the flange of the rear compartment panel.

Installation Procedure




1. Position the weatherstrip (1) to the rear compartment flange.

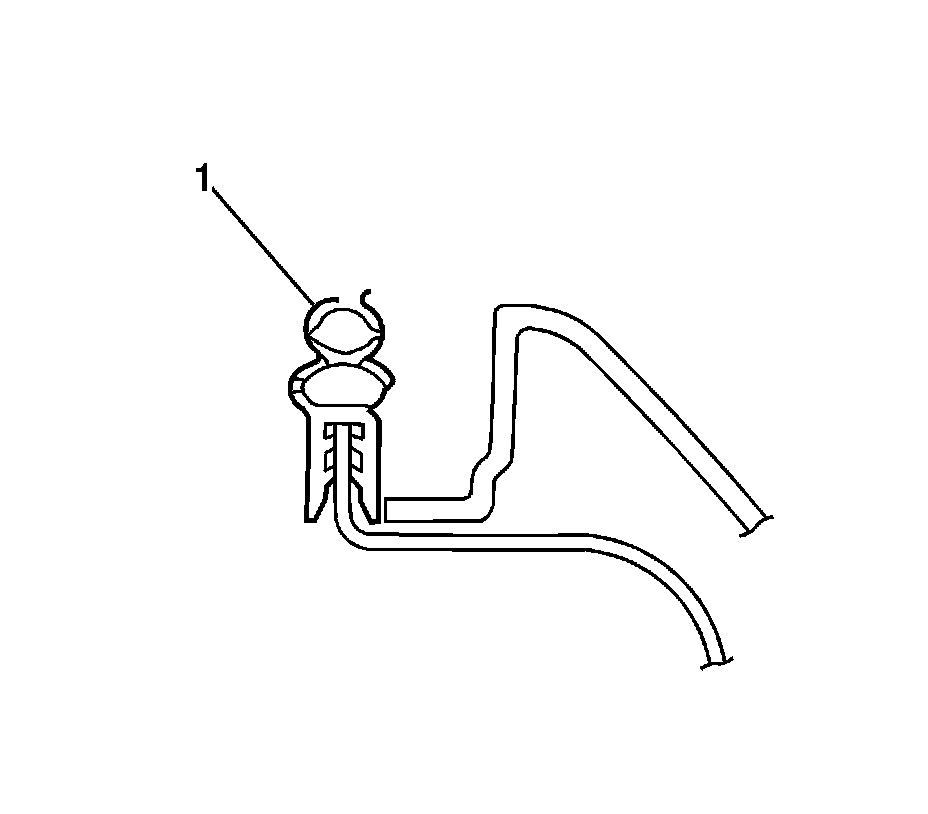

2. Position the upper lip of the weatherstrip (1) facing outward.
3. Seat the weatherstrip firmly to the flange.
4. Close the rear compartment.
