Folding Top Storage Compartment Panel Trim Replacement - Rear




Folding Top Storage Compartment Panel Trim Replacement - Rear

Removal Procedure




1. Open the rear compartment.

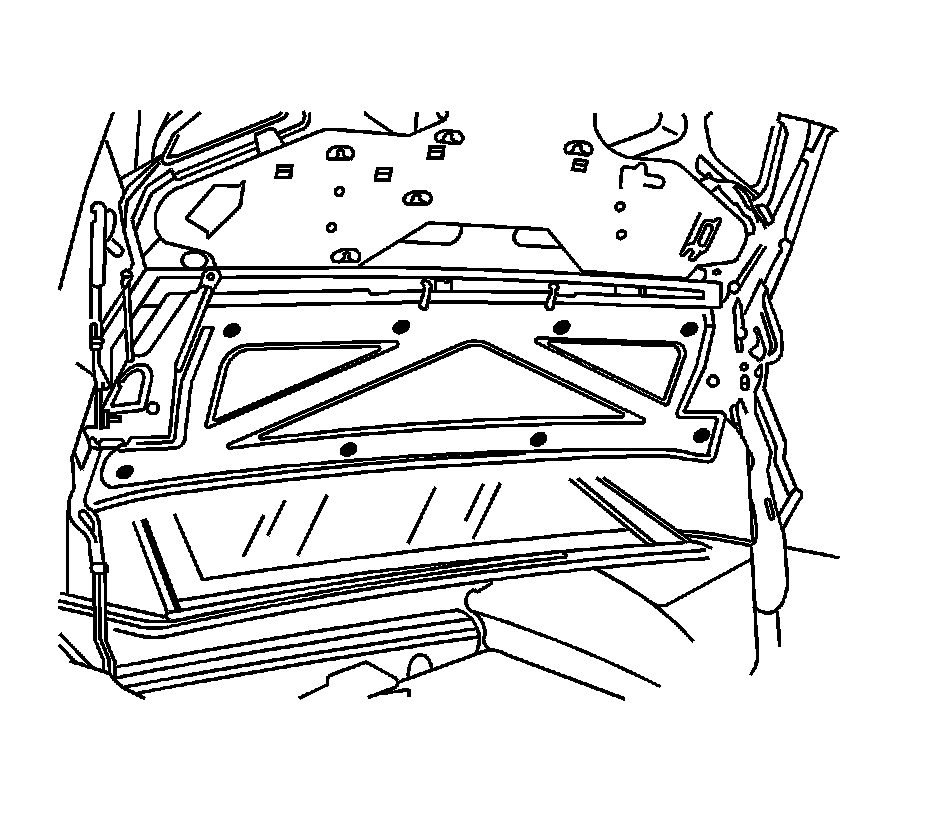

2. Remove the retainers.
3. Remove the storage trim panel from the folding top.

Installation Procedure




1. Install the storage trim panel to the folding top.
2. Install the retainers.
3. Close the rear compartment.
