Ignition Lock Key Transmitter Antenna Replacement - Left Side

Ignition Lock Key Transmitter Antenna Replacement - Left Side

Removal Procedure

1. Remove the left lock pillar trim. Refer to Body Lock Pillar Trim Panel Replacement (Service and Repair).
2. Remove the rear window trim panel. Refer to Rear Window Panel Trim Replacement (Service and Repair).
3. Disconnect the antenna wire lead from the antenna.

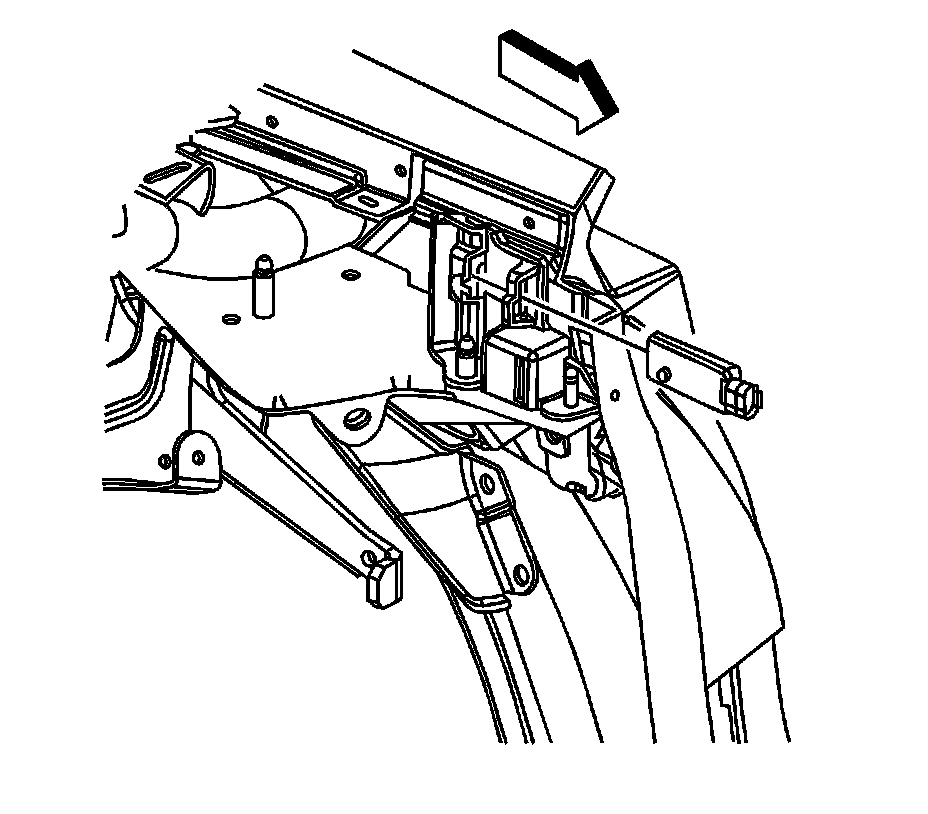

4. Pull on the antenna to disengage the antenna from the retaining bracket.

Installation Procedure




1. Push on the antenna to engage the antenna to the retaining bracket.
2. Connect the antenna wire lead to the antenna.
3. Install the rear window trim panel. Refer to Rear Window Panel Trim Replacement (Service and Repair).
4. Install the left lock pillar trim. Refer to Body Lock Pillar Trim Panel Replacement (Service and Repair).
