Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

Removal Procedure

1. Open the instrument panel (I/P) compartment door.
2. Remove the trim bezel from the I/P compartment. Refer to Instrument Panel Compartment Trim Bezel Replacement (Service and Repair).

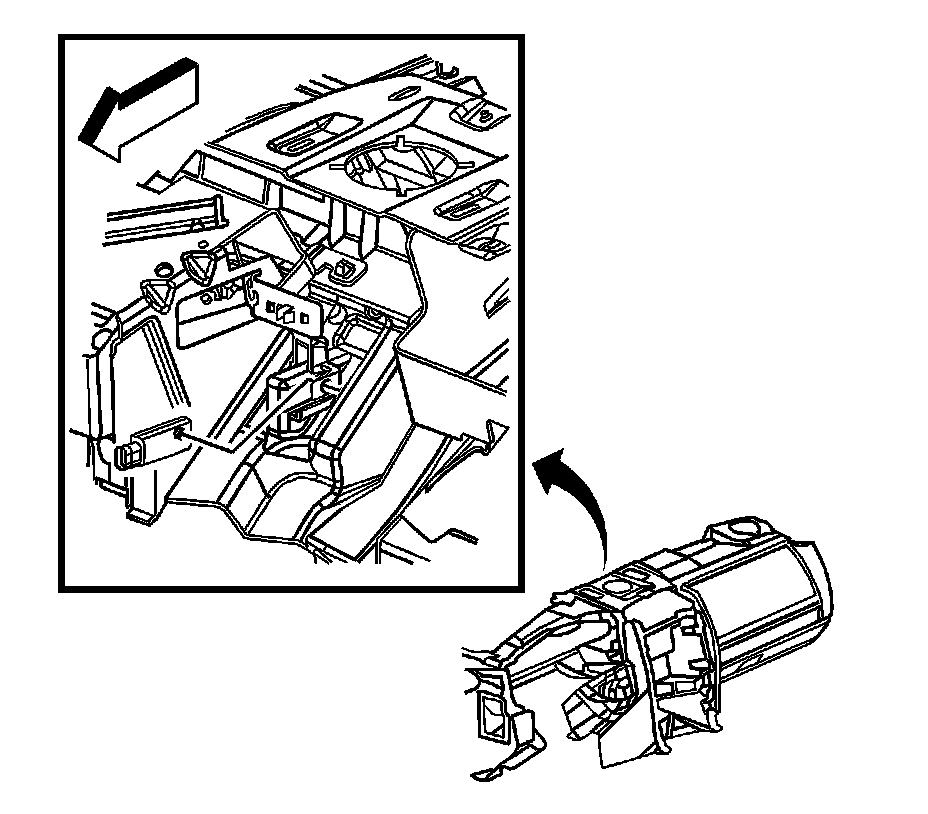

3. Remove the I/P antenna by pulling to disengage the antenna from the retaining bracket.
4. Disconnect the lead connector from the antenna wire harness.

Installation Procedure




1. Position the antenna to the I/P carrier.
2. Connect the wire harness lead to the antenna.
3. Push on the antenna to install the antenna to the retaining bracket.
4. Install the trim bezel to the I/P compartment. Refer to Instrument Panel Compartment Trim Bezel Replacement (Service and Repair).
5. Close the I/P compartment door.
