Rear Window Lower Garnish Molding Replacement

Rear Window Lower Garnish Molding Replacement

Removal Procedure

1. Open the rear compartment.
2. Lower the rear compartment partition.

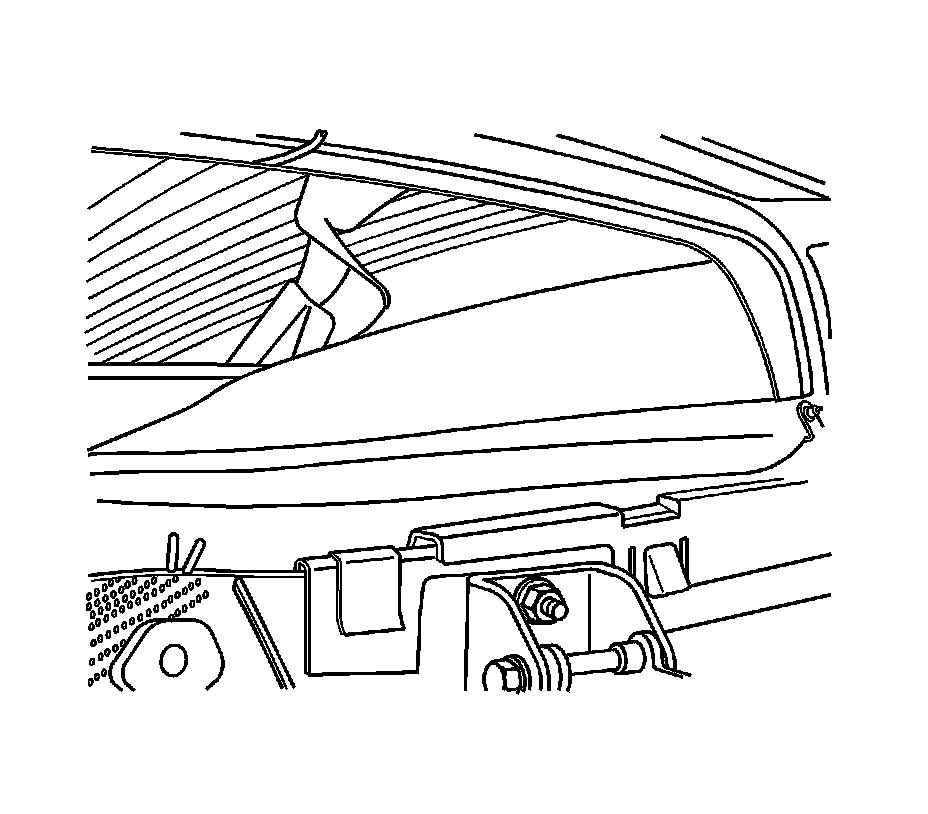

3. Remove the rear window retaining bolts which secure the lower molding to the folding top.
4. Remove the lower molding out of the rear compartment.

Installation Procedure




1. Position the lower molding to the folding top through the rear compartment.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the retaining bolts to secure the molding to the folding top and tighten to 2.5 Nm (22 lb in).
3. Raise the rear compartment partition and latch the partition in place.
4. Close the rear compartment.
