Fascia Grille Replacement

Fascia Grille Replacement

Removal Procedure

1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Front Bumper Fascia Replacement).

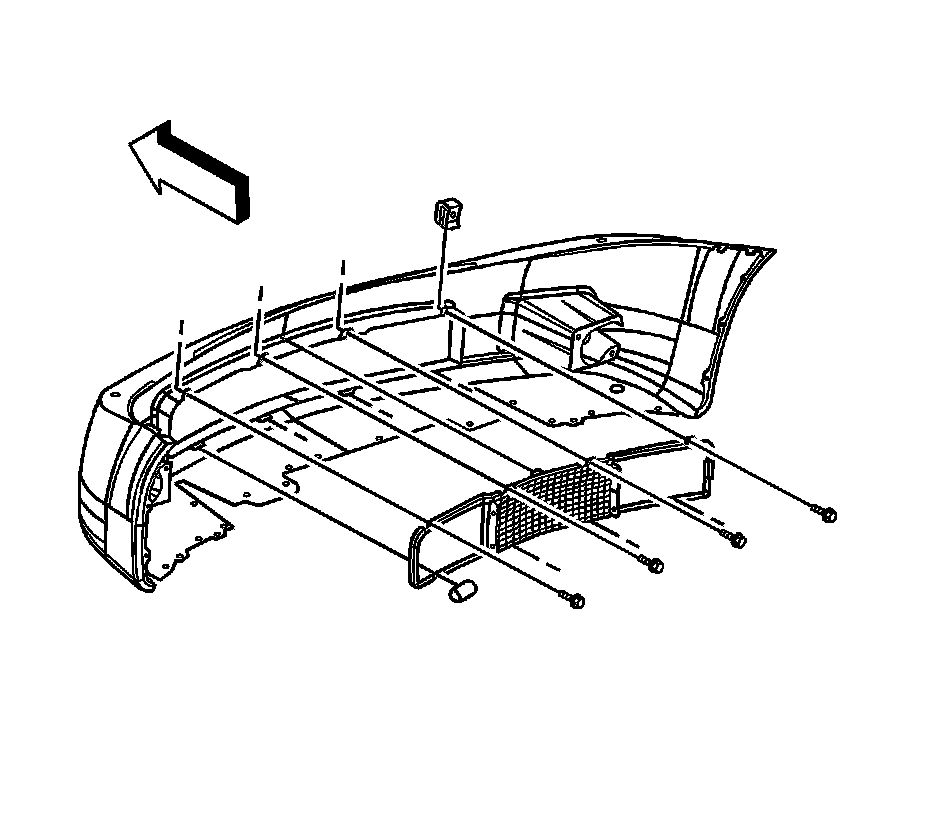

2. Remove the screws attaching the grille to the front fascia.
3. Remove the fasteners attaching the grille to the fascia.
4. Remove the grille from the fascia.

Installation Procedure




1. Position the grille to the fascia.
2. Install the fasteners that attach the grille to the fascia.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the screws that attach the grille to the fascia and tighten to 2 Nm (18 lb in).
4. Install the fascia. Refer to Front Bumper Fascia Replacement (Front Bumper Fascia Replacement).
