Power Trunk / Liftgate Lock Actuator: Locations




Luggage Compartment/Rear of Vehicle Component Views

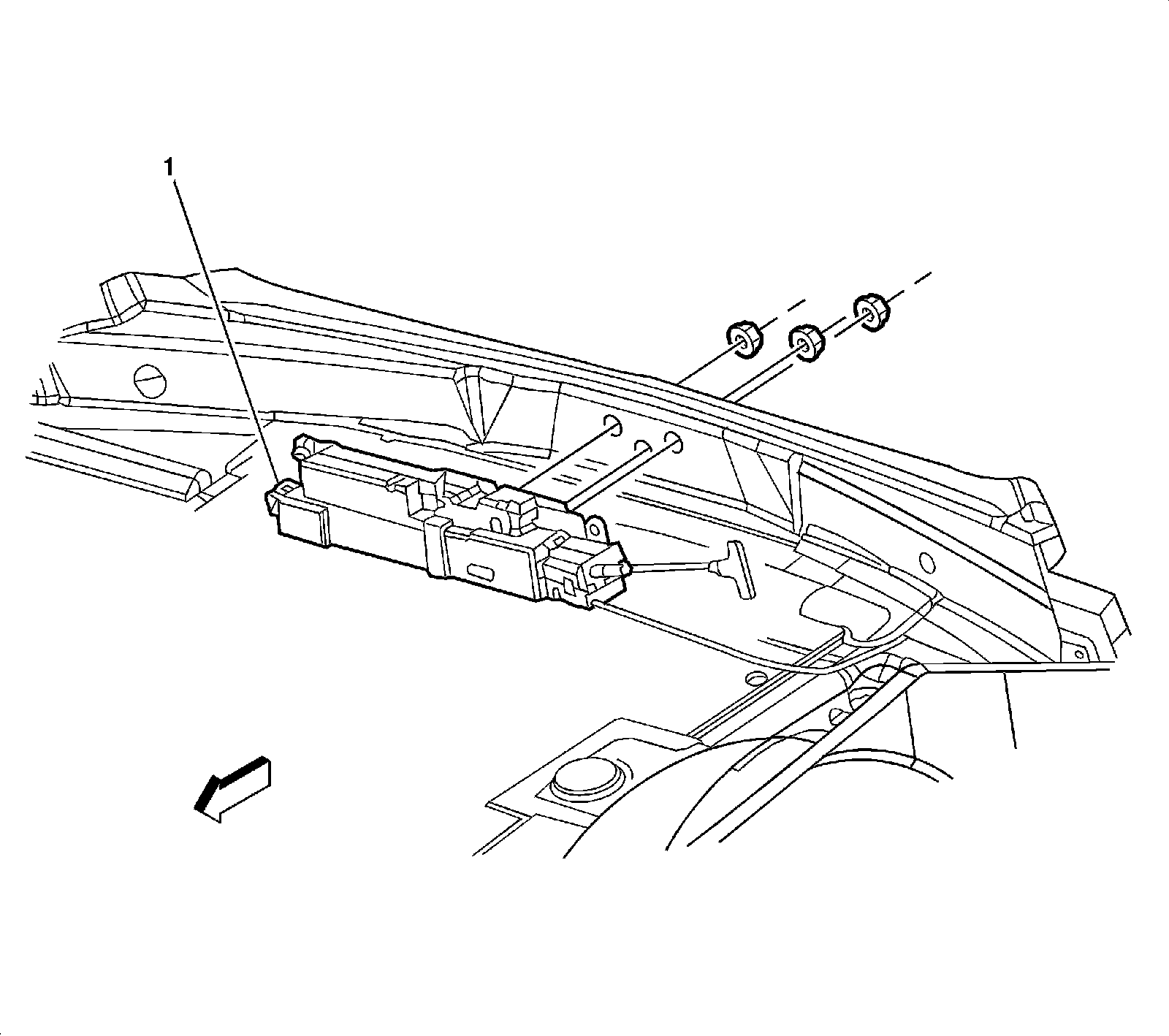

Upper Center of the Luggage Compartment




1 - Rear Compartment Lid Pulldown Actuator
