Power Trunk / Liftgate Lock Actuator: Diagrams

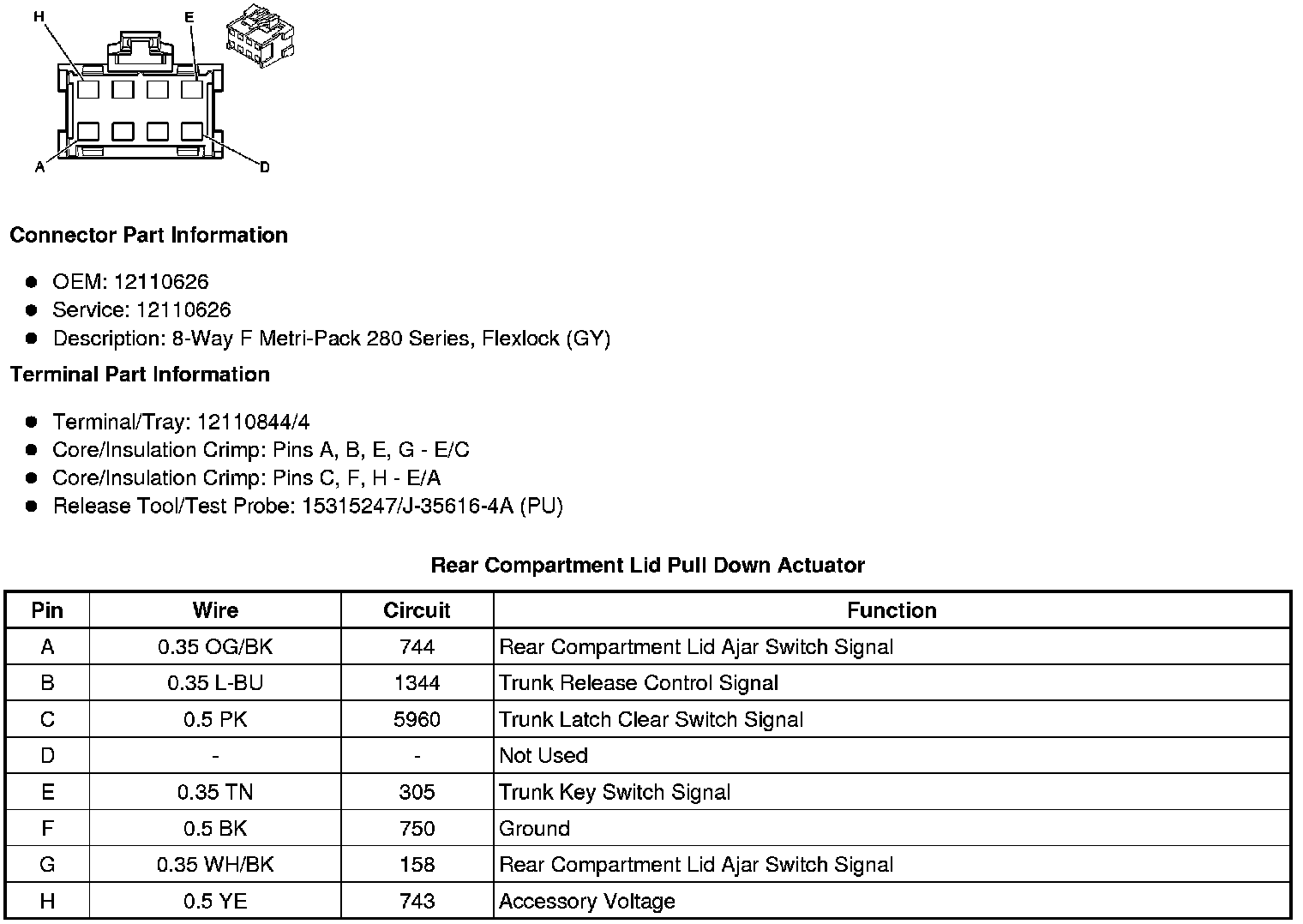

Component Connector End Views

Rear Compartment Lid Pull Down Actuator
