Hood Insulator / Pad: Service and Repair

Hood Insulator Replacement

Removal Procedure

1. Open the hood.

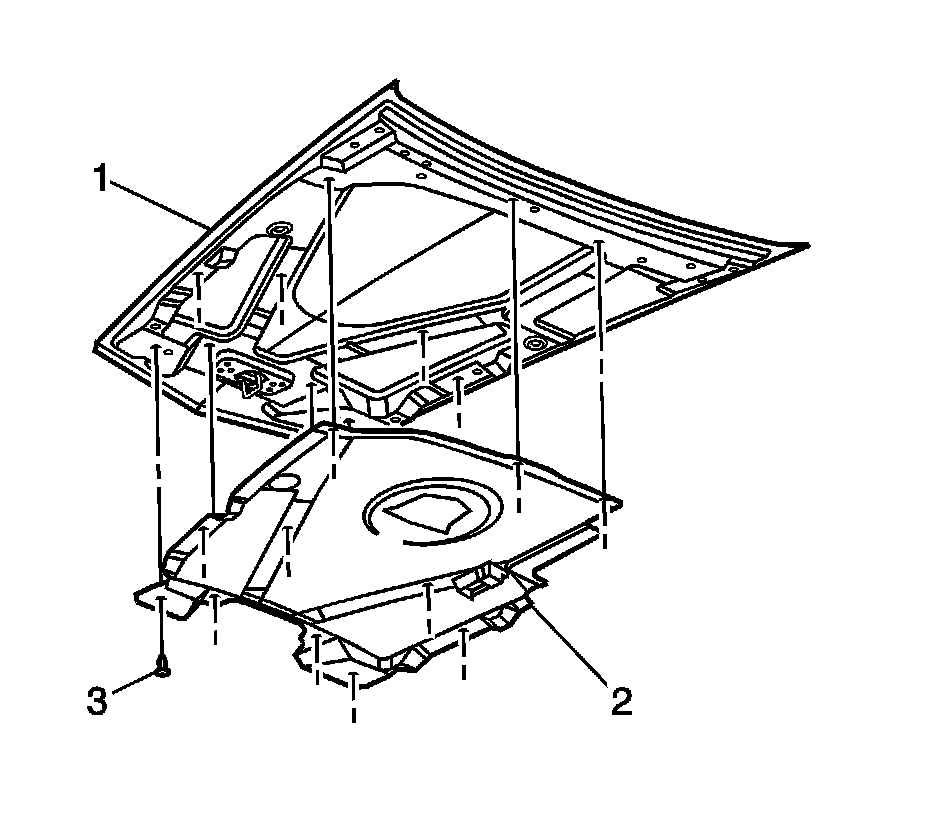

2. Remove the push-in retainers (3) securing the hood insulator (2) to the hood (1).
3. Remove the hood insulator (2) from the hood (1).

Installation Procedure




1. Install the hood insulator (2) to the hood (1).
2. Install the push-in retainers (3) in order to secure the hood insulator (2) to the hood (1).
3. Close the hood.
