Home >> Cadillac >> 2009 >> XLR V8-4.6L >> Repair and Diagnosis >> Body and Frame >> Bumper >> Rear Bumper >> Rear Bumper Cover / Fascia >> Service and Repair >> Rear Bumper Fascia Heat Shield Replacement

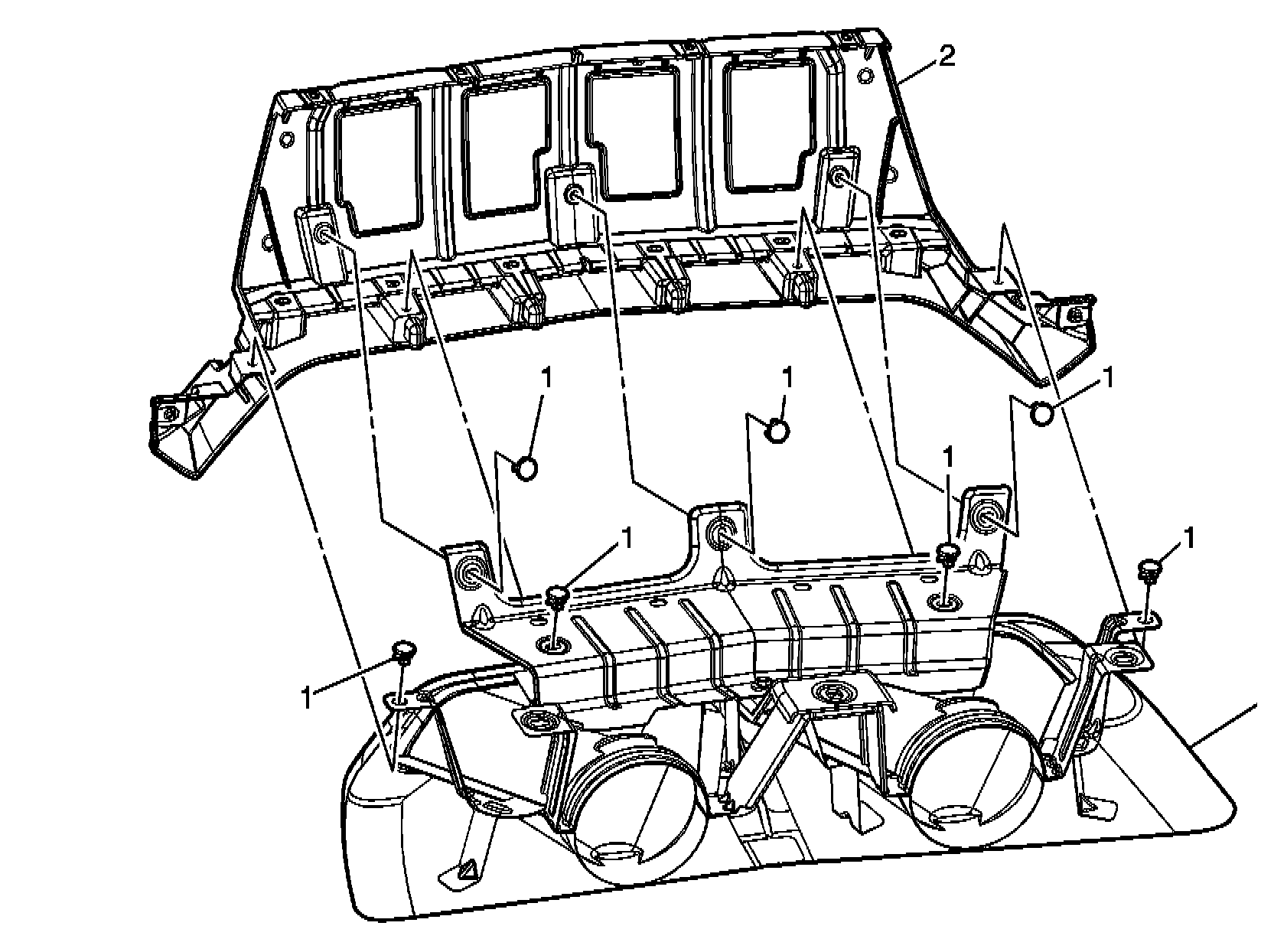

Rear Bumper Fascia Heat Shield Replacement


Rear Bumper Fascia Heat Shield Replacement

E�o3:

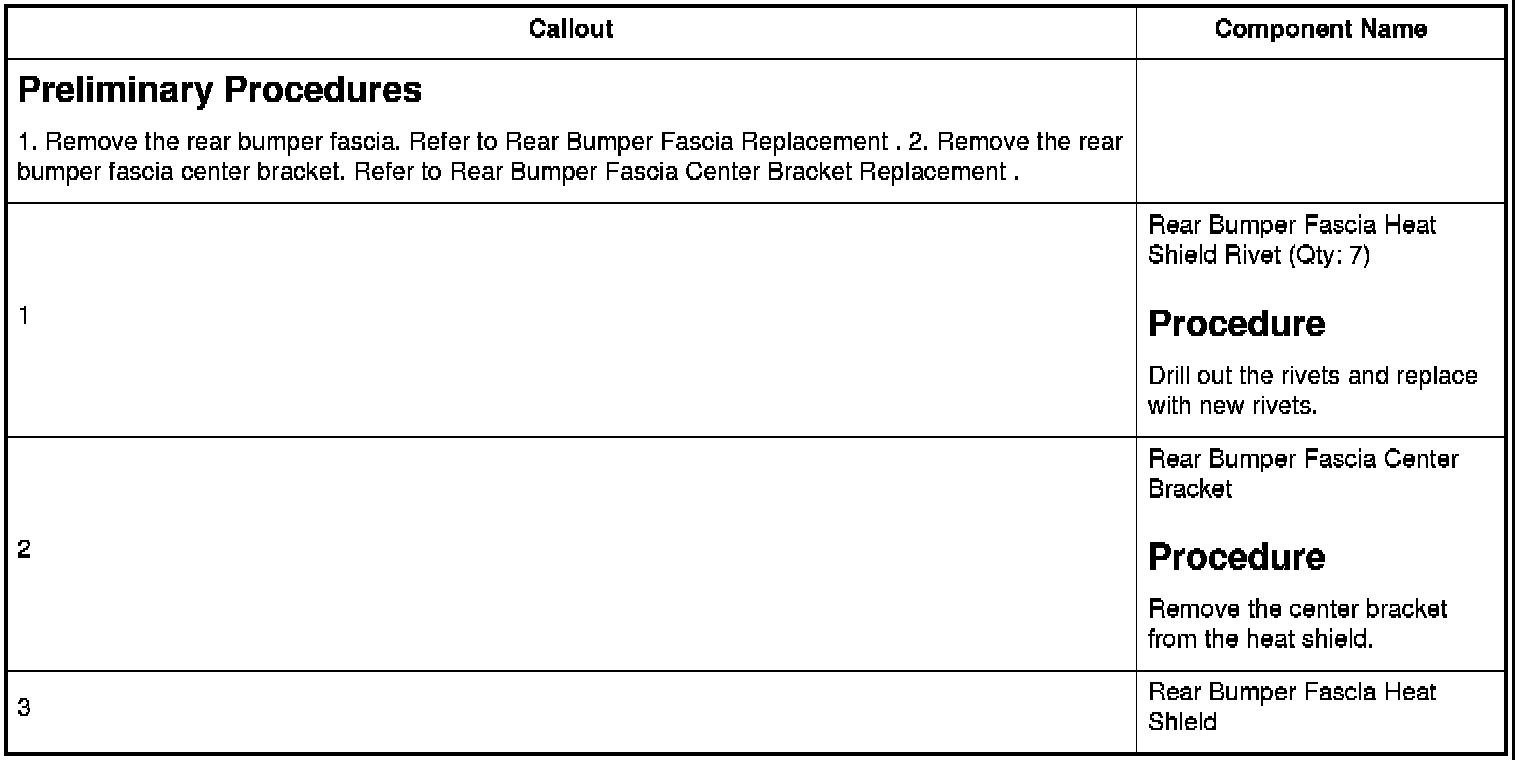

Preliminary Procedures

Procedure

Procedure
