Electrical Diagrams
Body Control System Schematics

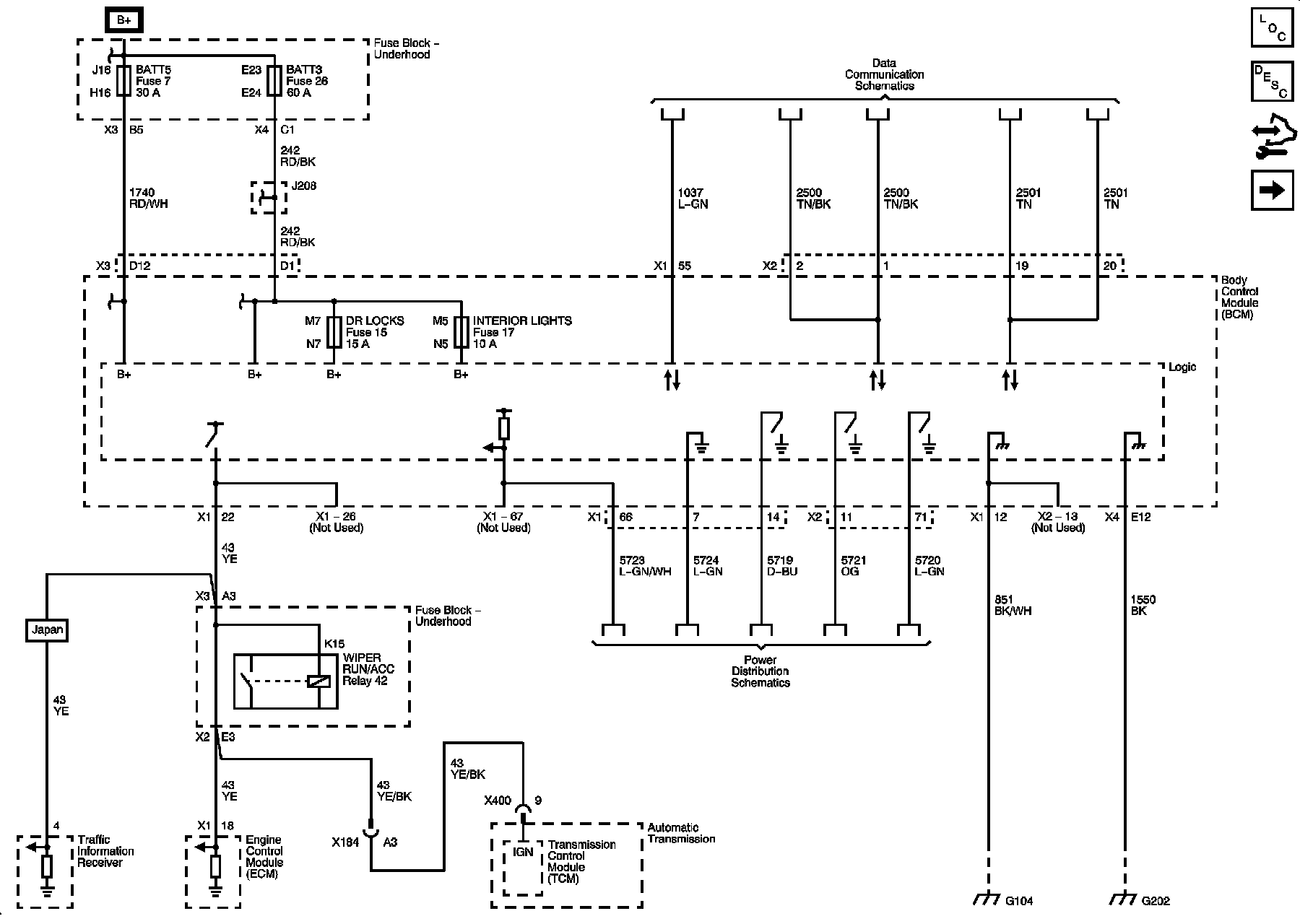

Power, Ground, and DLC

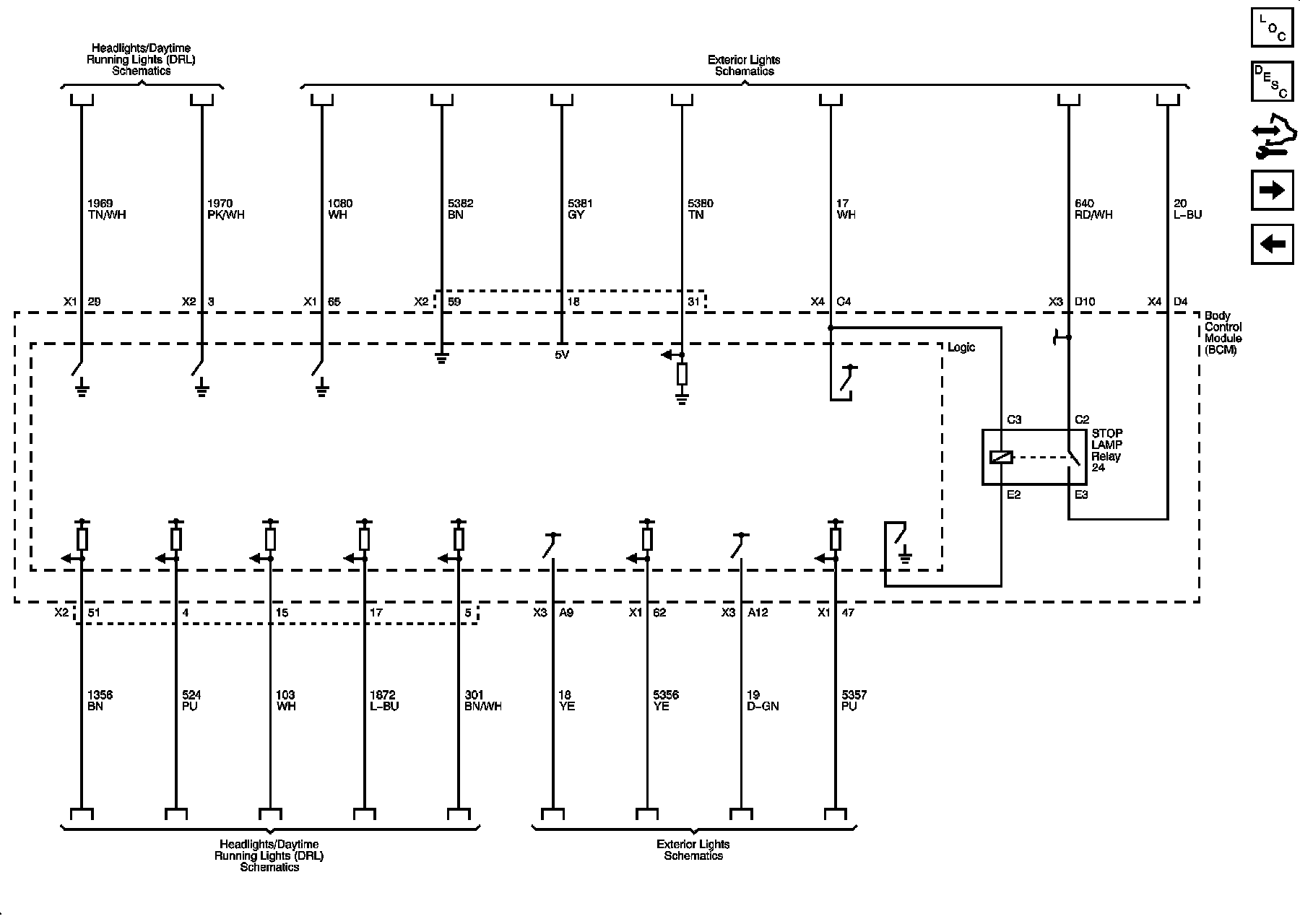

Headlights/DRL and Exterior Lights References 1 of 2

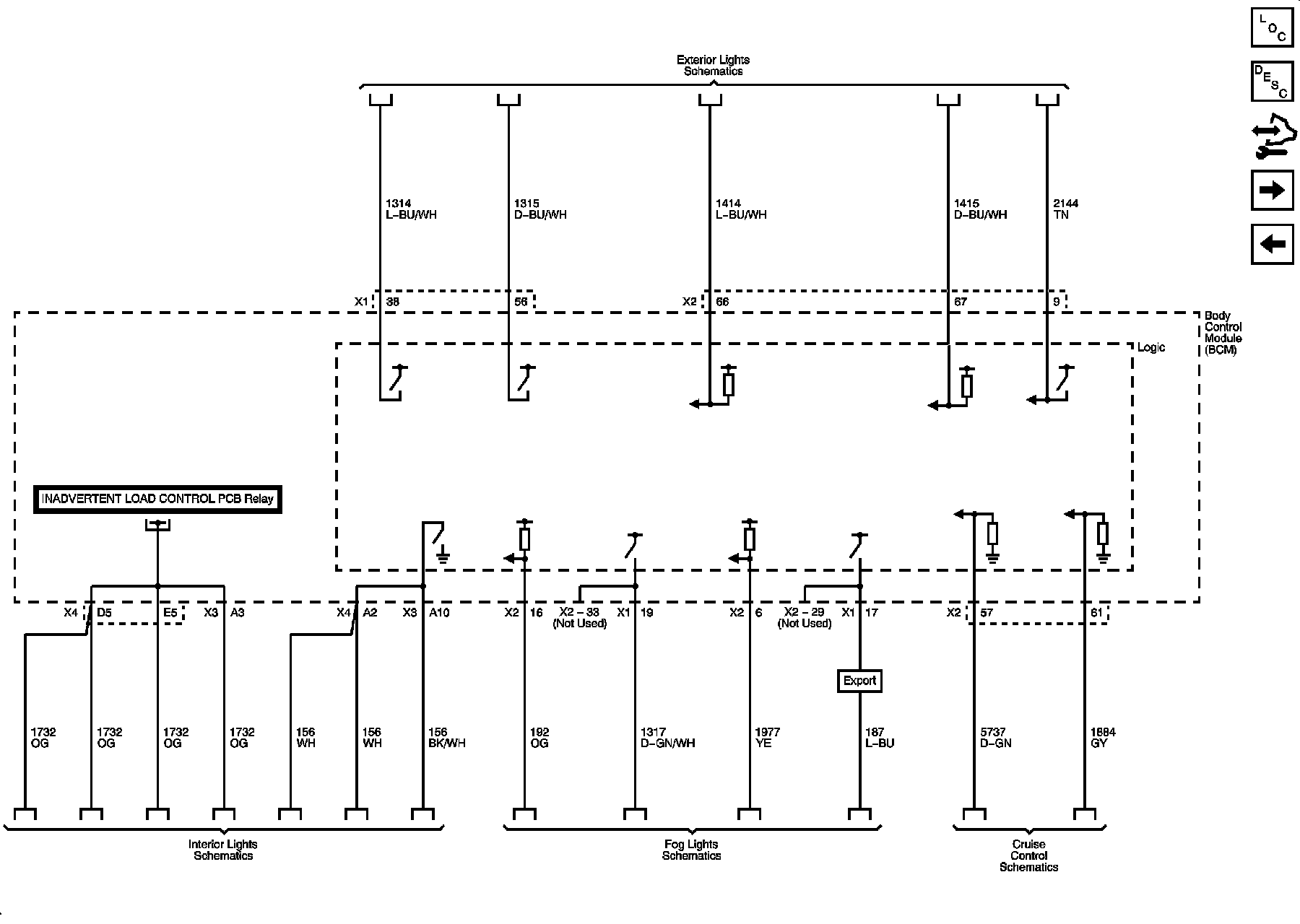

Exterior Lights 2 of 2, Interior Lights, and Fog Lights References

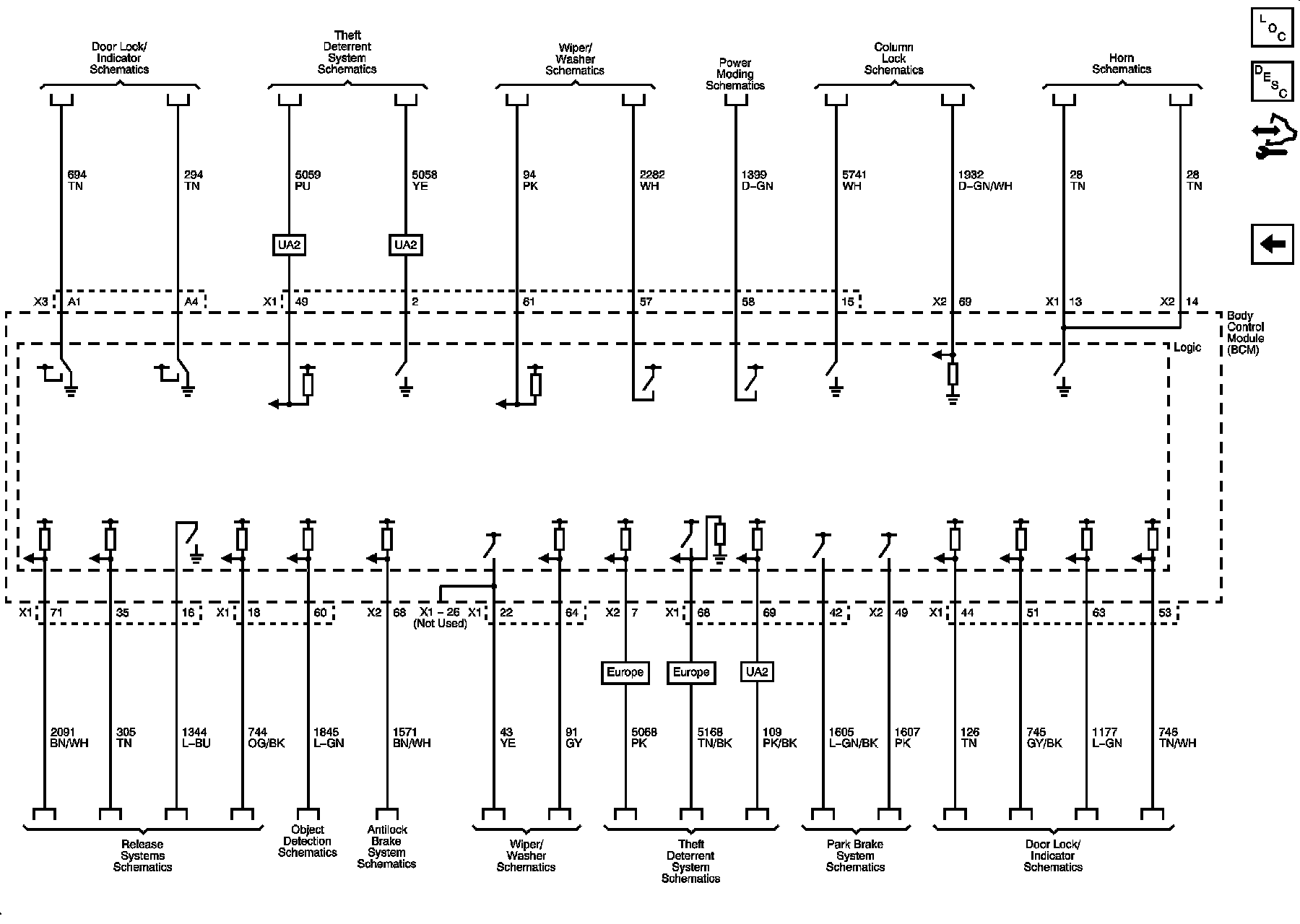

Other Subsystem References
Body Control System Schematics
Power, Ground, and DLC
Headlights/DRL and Exterior Lights References 1 of 2
Exterior Lights 2 of 2, Interior Lights, and Fog Lights References
Other Subsystem References
