Home
>>
Cadillac
>>
2009
>>
XLR V8-4.6L
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Diagrams
>>
Electrical Diagrams
>>
Remote Function Schematics
Remote Function Schematics
Remote Function Schematics

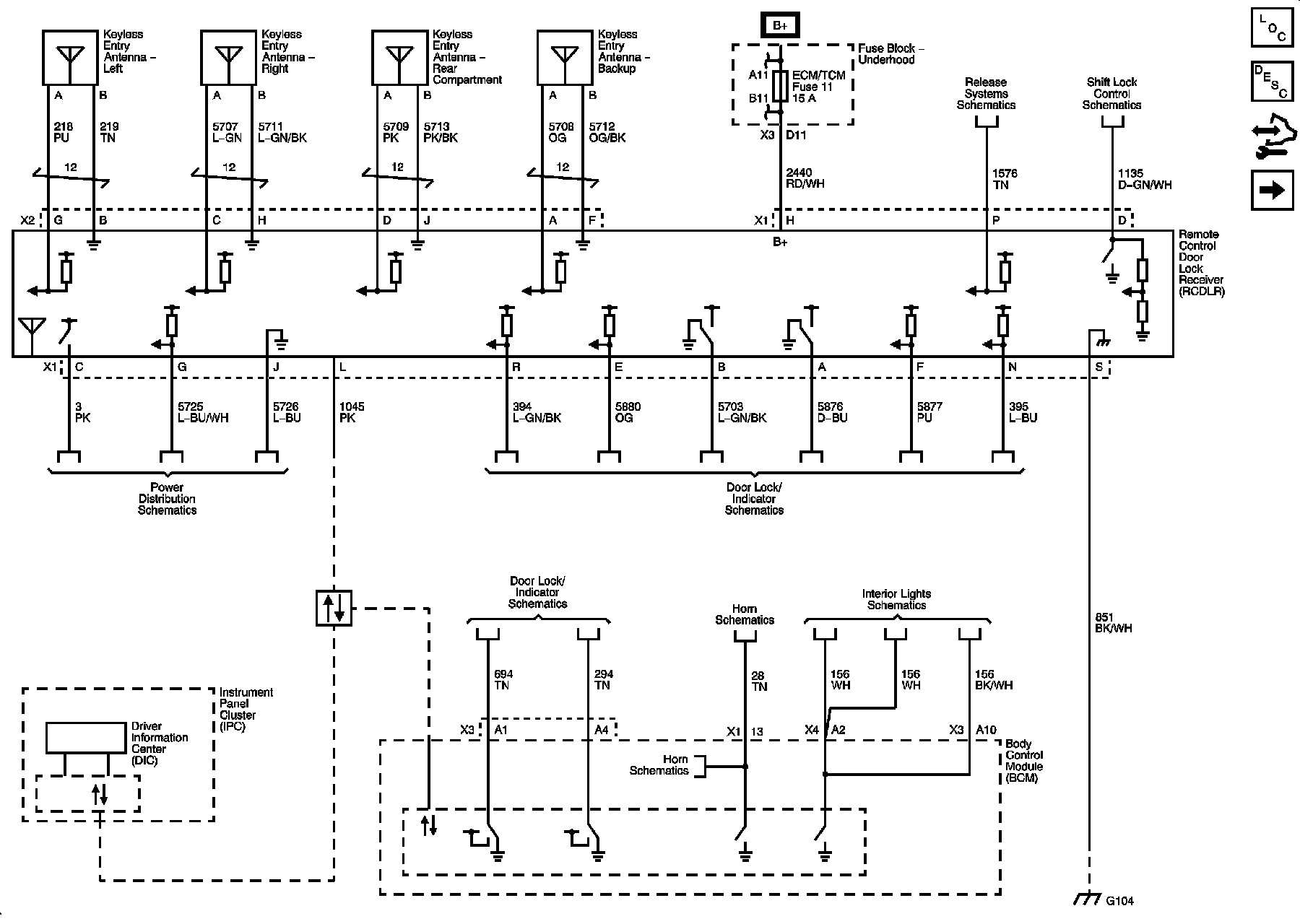

Keyless Entry

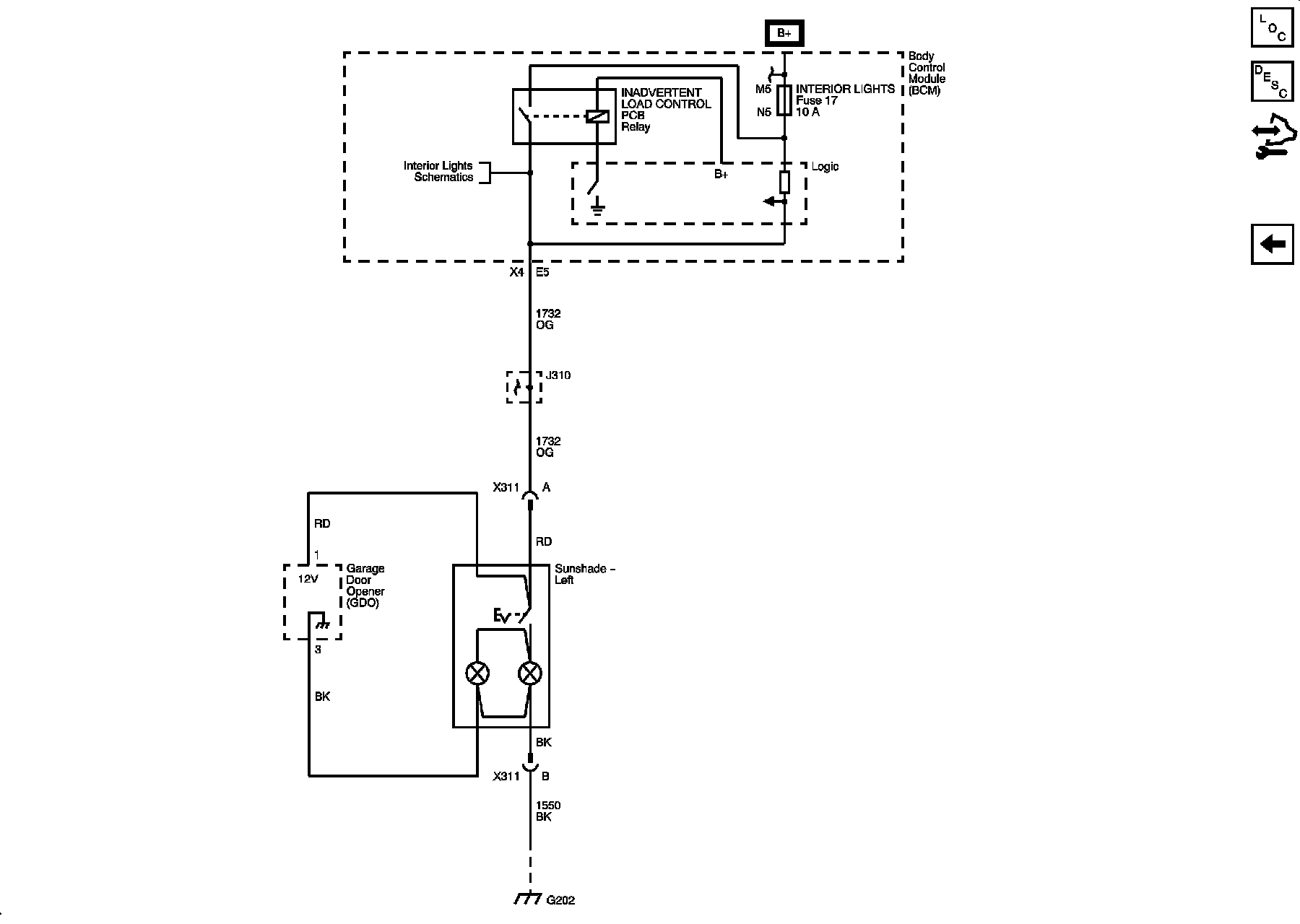

Garage Door Opener
