Radio/Navigation System Schematics




Radio/Navigation System Schematics

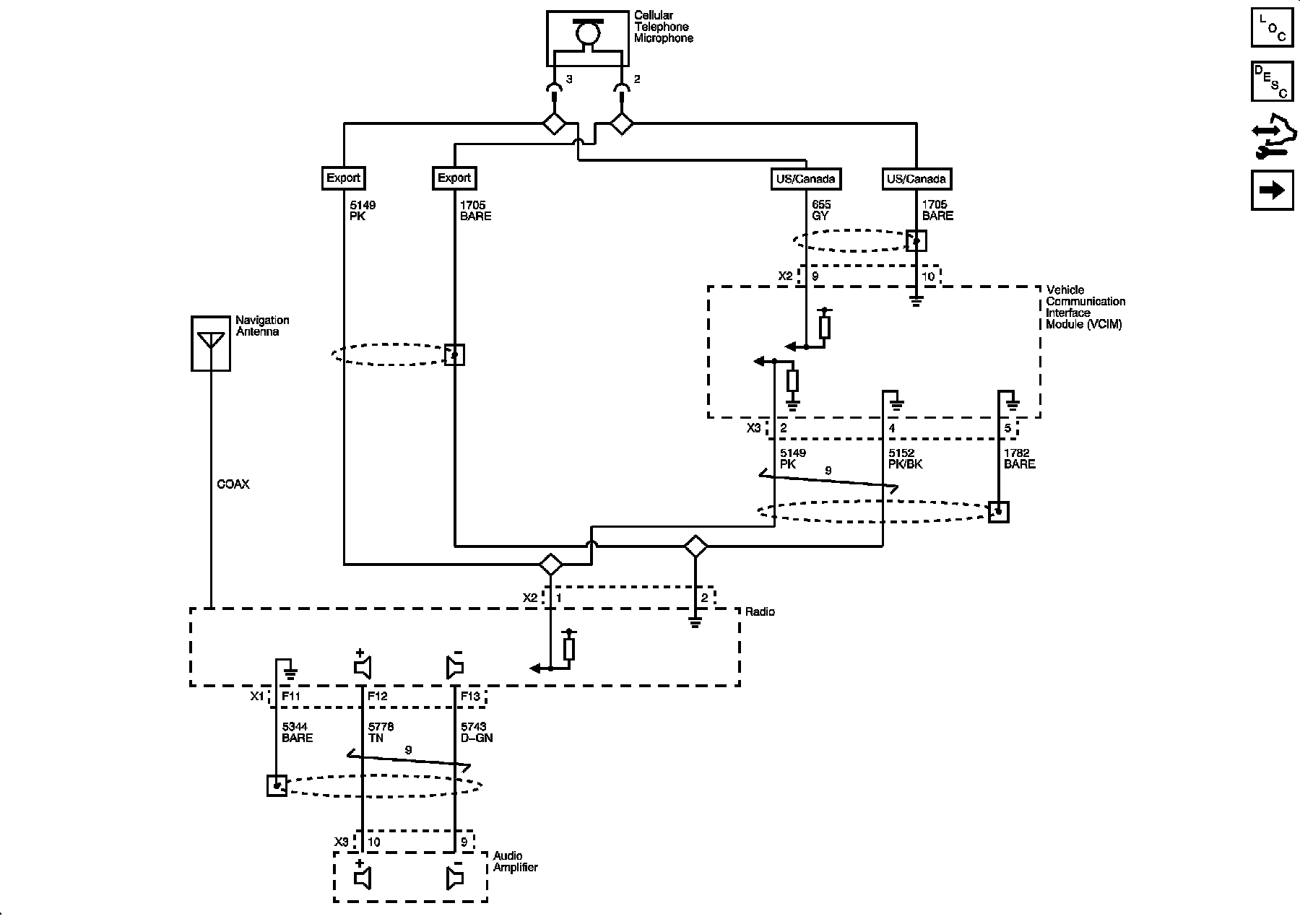

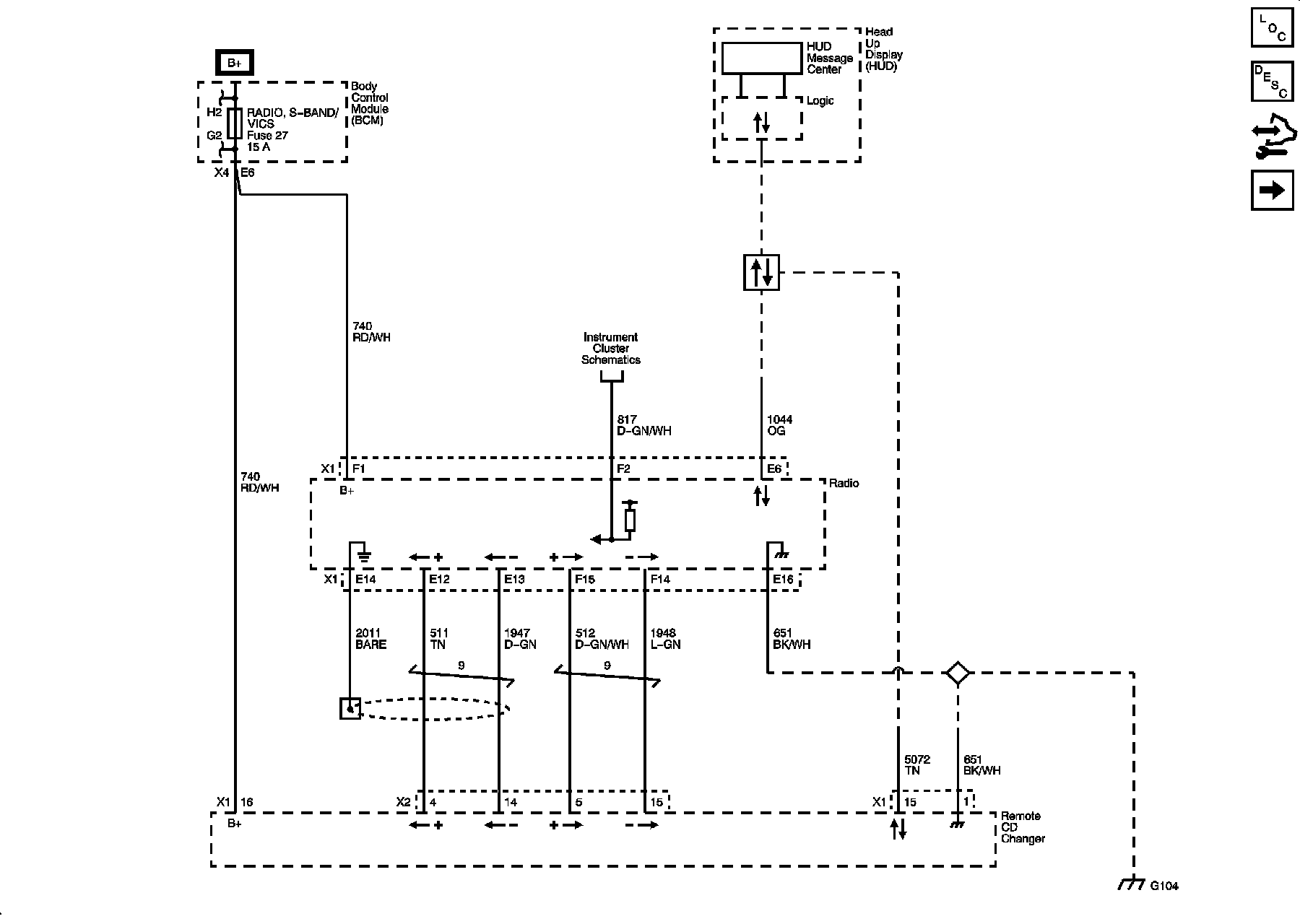

Power, Ground, Messages, and Radio to Remote CD Changer Audio Signals

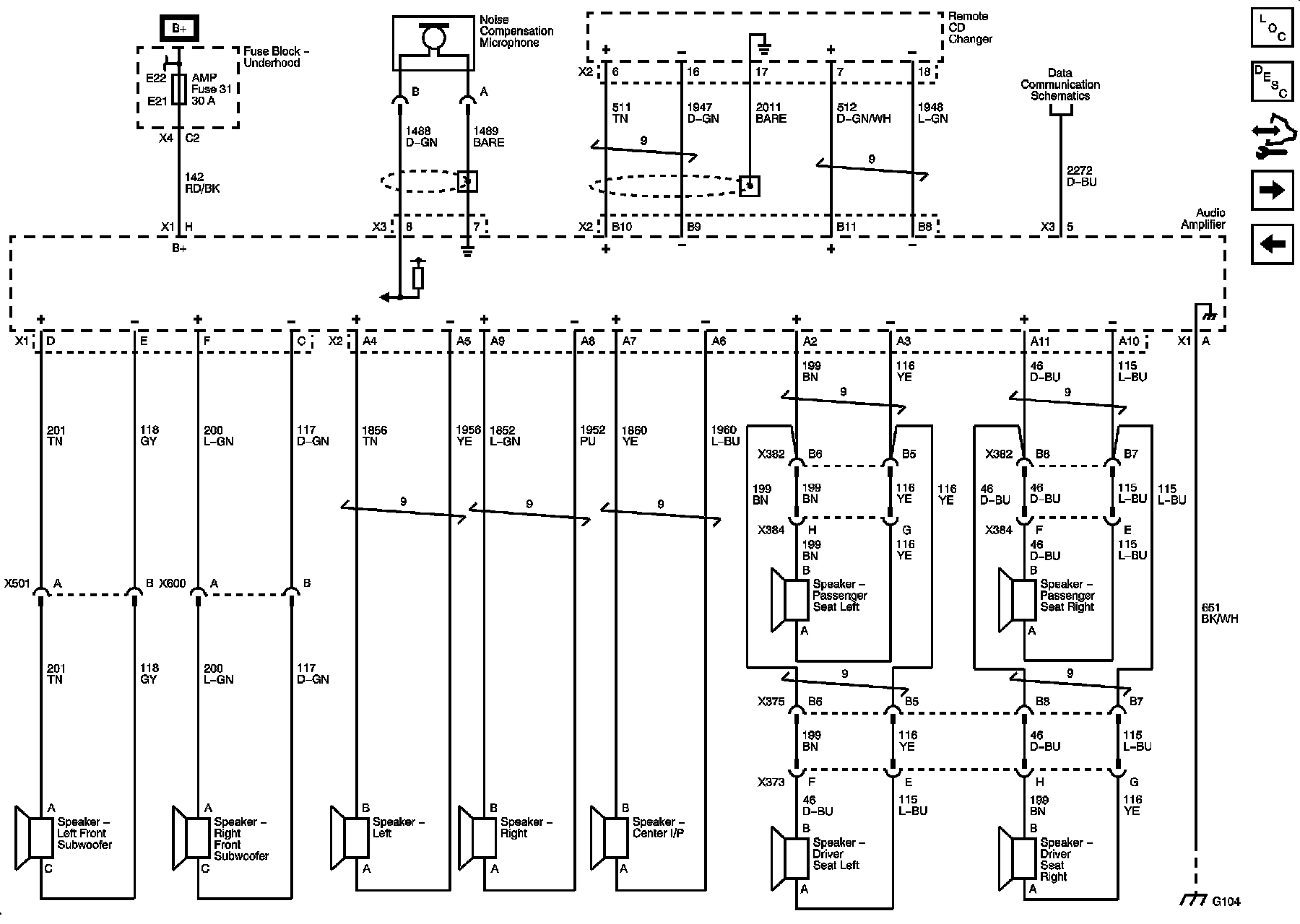

Amplification

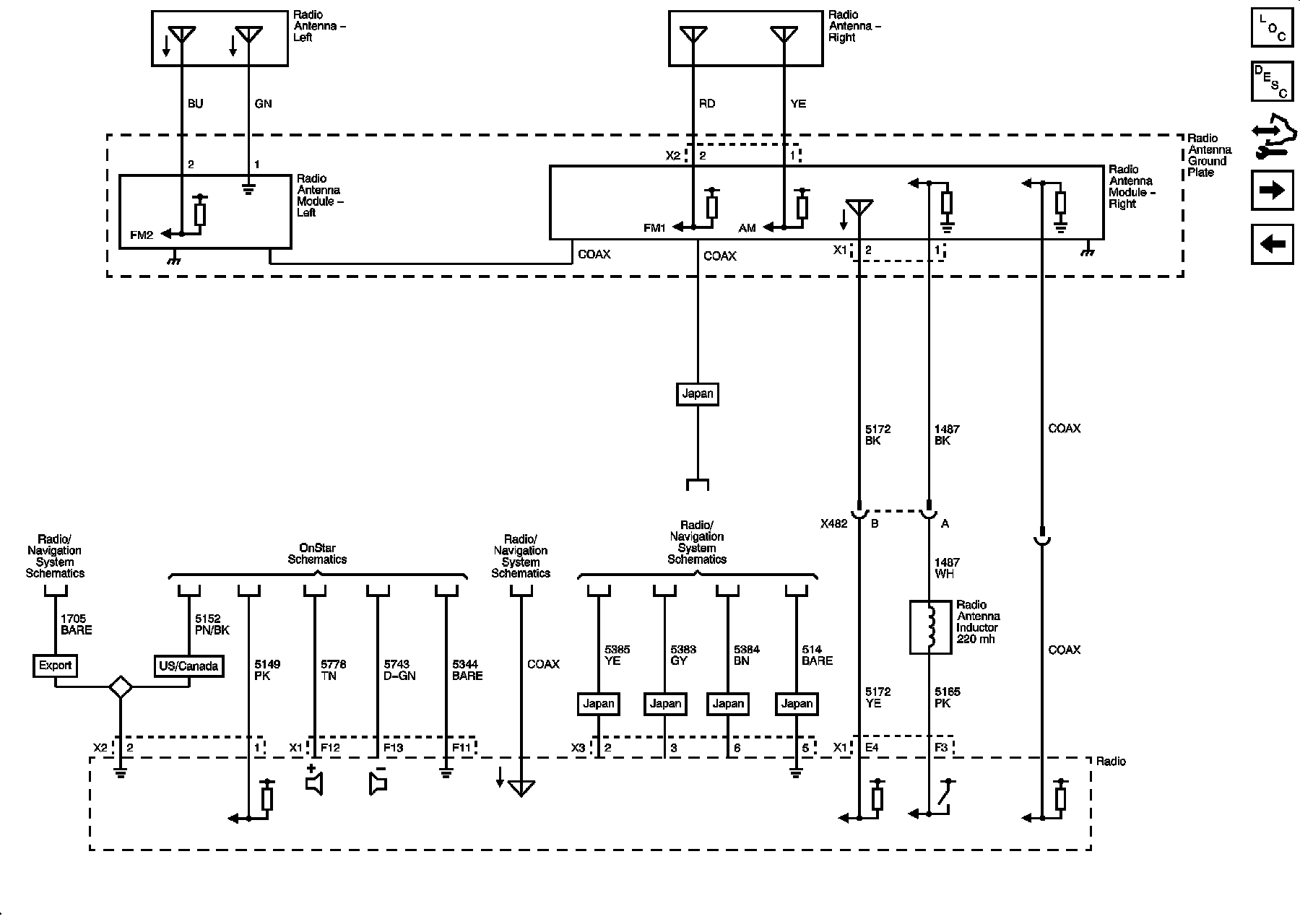

AM and FM Antennas and OnStar References

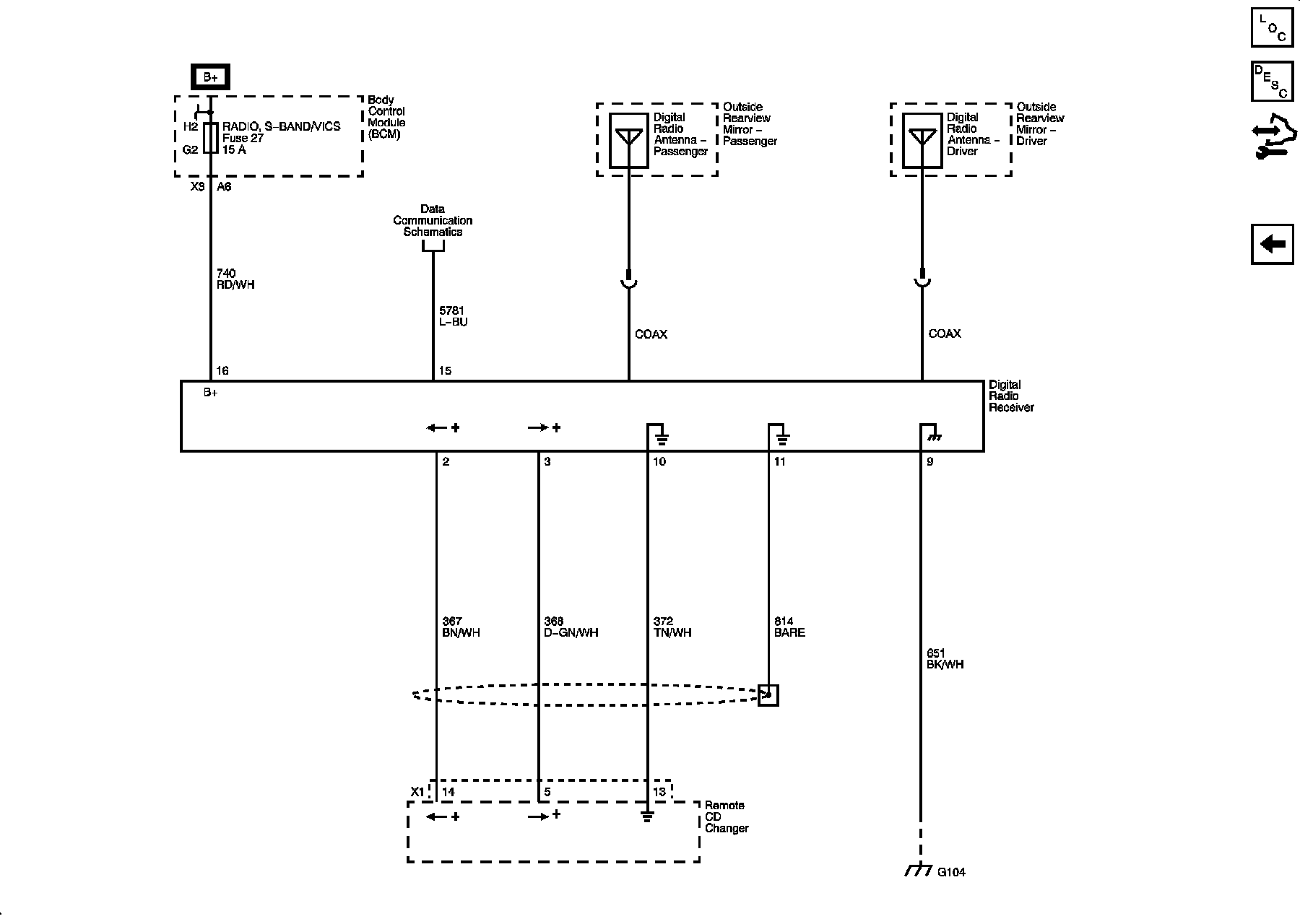

Digital Radio Receiver

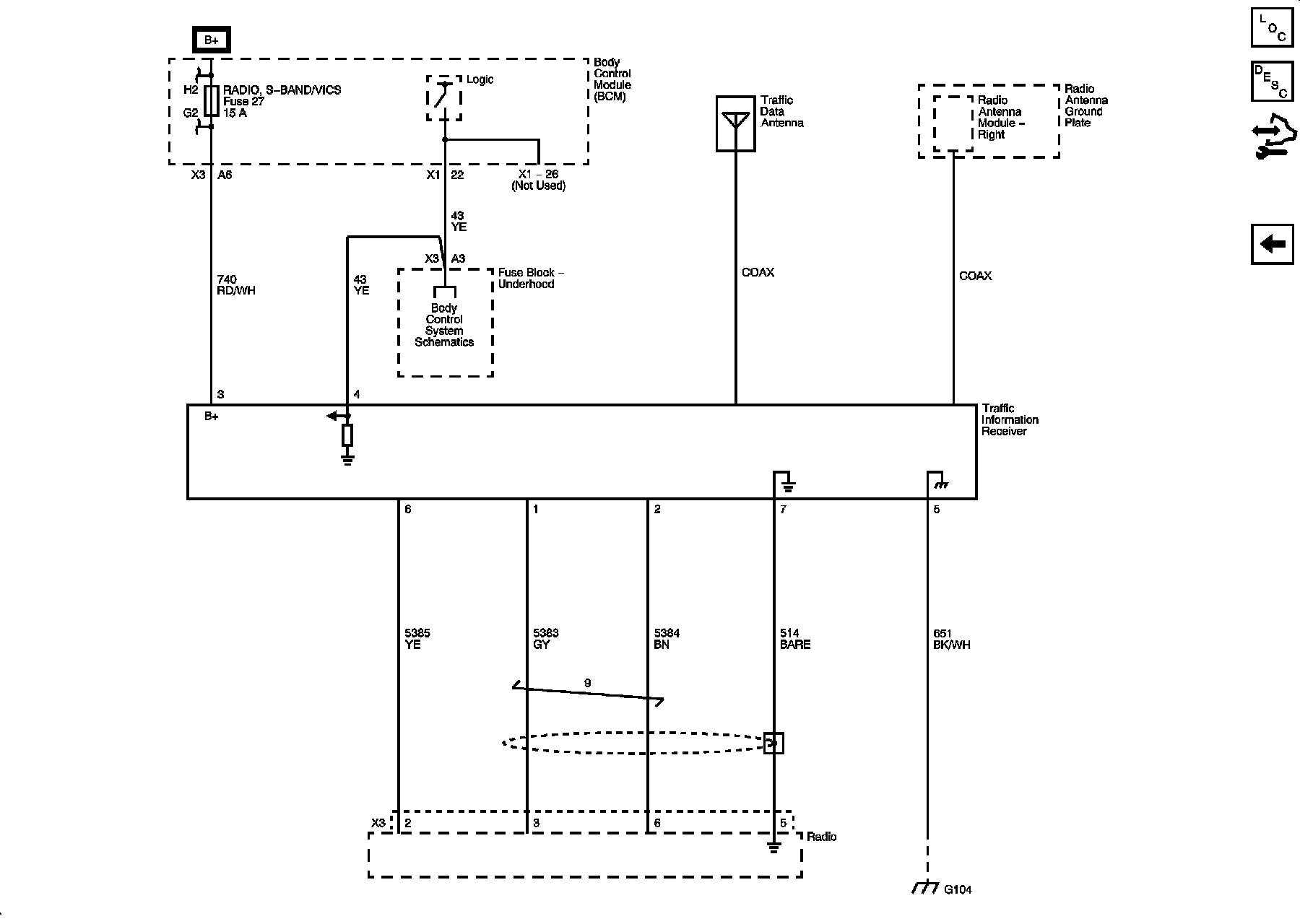

Navigation - Except Japan





Navigation - Japan
