Installation Procedure

    Fig 1: Identifying Center Console Assembly & Nuts
    GM932160Courtesy of GENERAL MOTORS CORP.
  1. Install the shift control assembly (1) to the tunnel reinforcement.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the nuts securing the shift control assembly to the tunnel reinforcement and tighten to 12 N.m (106 lb in).
  3. Connect the wiring harness connector to the shift lock control pigtail connector.

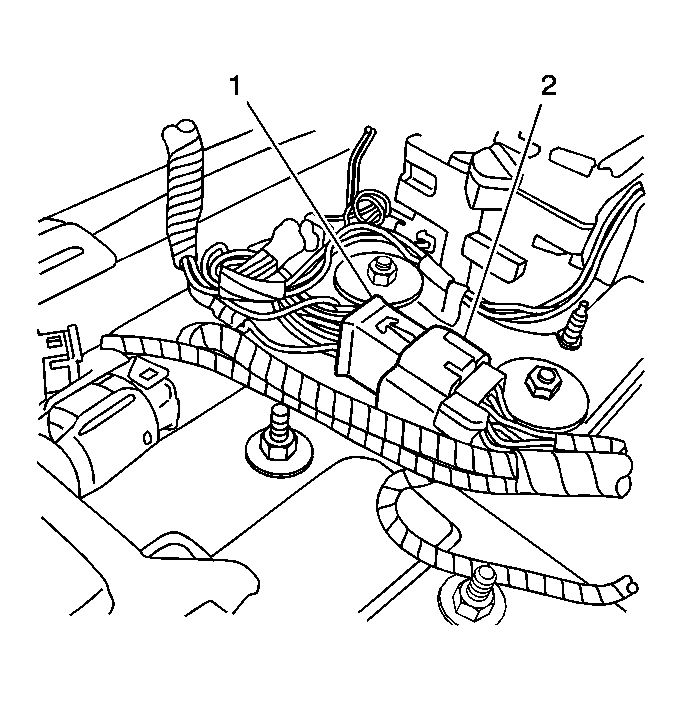

    4. Fig 2: Identifying Shift Lock Control Pigtail Connector & Wiring Harness Connector
    GM1275750Courtesy of GENERAL MOTORS CORP.
  4. Install the electrical connector (1) to the shift control assembly.
  5. Install the center console assembly. Refer to Console Replacement .
  6. Install the shift control trim plate. Refer to Console Trim Plate Replacement .
  7. Place the shifter in the NEUTRAL position.
  8. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    9. Fig 3: Identifying Shift Control Cable Assembly Components
    GM932162Courtesy of GENERAL MOTORS CORP.
  9. Connect the shift lock control cable to the ball stud (3). Refer to Transmission Control Replacement .
  10. Install the floor panel tunnel panel reinforcement. Refer to Floor Panel Tunnel Panel Reinforcement Replacement .
  11. Install the intermediate exhaust pipe. Refer to Intermediate Pipe Replacement .
  12. With the shifter and the transmission in the NEUTRAL position, adjust the shifter cable. Refer to Shift Control Linkage Adjustment .
  13. Lower the vehicle.
