Torque Converter Installation and Holding Fixture Removal

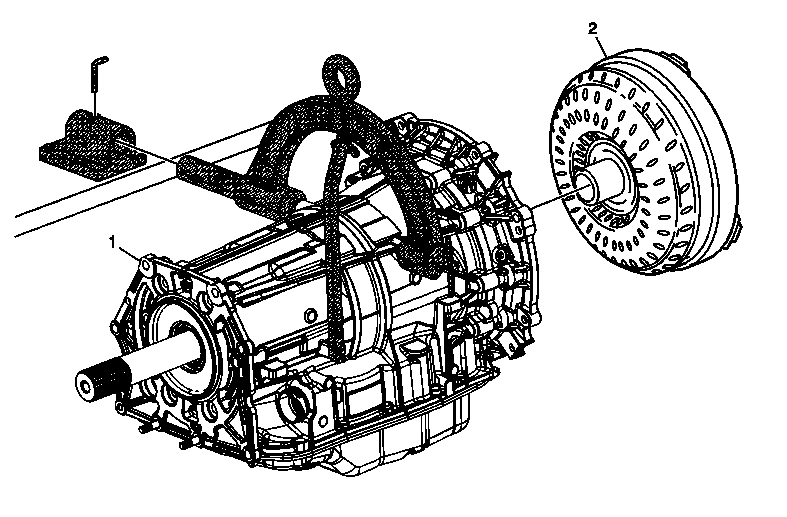

Fig 1: Identifying Torque Converter & Holding Fixture

Courtesy of GENERAL MOTORS CORP.

Callout	Procedure
Preliminary Procedure: Rotate the transmission so that the fluid pan assembly is down.
1	Transmission Case Assembly Special Tools DT 47605 Holding Fixture Adapter. See Special Tools . J 3289-20 Holding Fixture Base Assembly. See Special Tools . J 8763-B Holding Fixture. See Special Tools .
2	Torque Converter Assembly

Callout

Procedure

Preliminary Procedure:
Rotate the transmission so that the fluid pan assembly is down.

Transmission Case Assembly

Special Tools

Torque Converter Assembly
