Harness Routing Views

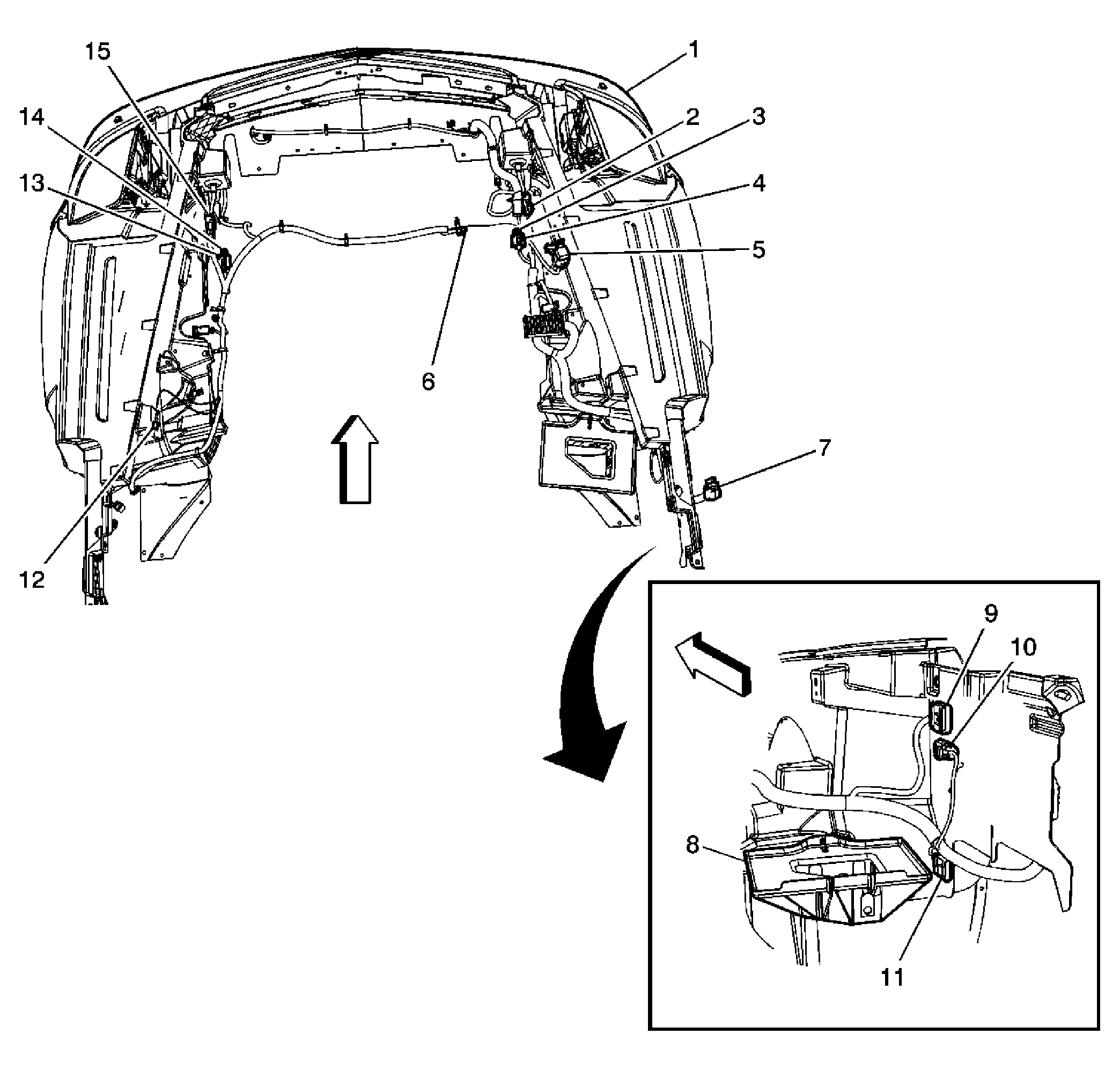

Fig 1: Identifying Forward Lamp Harness Routing
GM1858133Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Fascia
2 X120
3 G102
4 JX102
5 Supercharger Coolant Pump Relay (LC3)
6 X102
7 Headlamp Module
8 Battery Tray
9 X186
10 X101
11 X168
12 X131
13 JX101
14 G101
15 X119

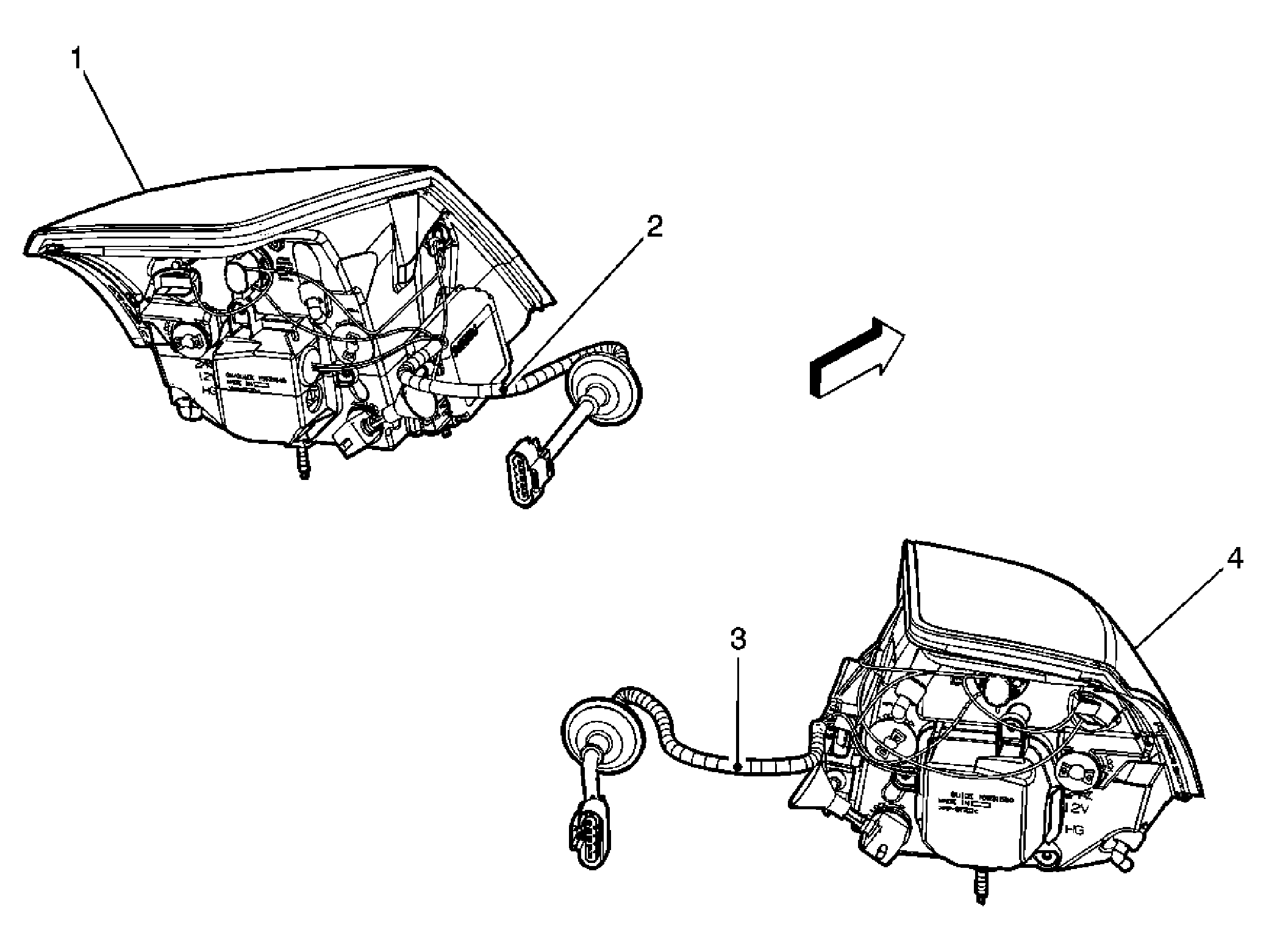

Fig 2: Identifying Headlamp Splices
GM1863947Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Assembly-Left
2 X119
3 X120
4 Headlamp Assembly-Right

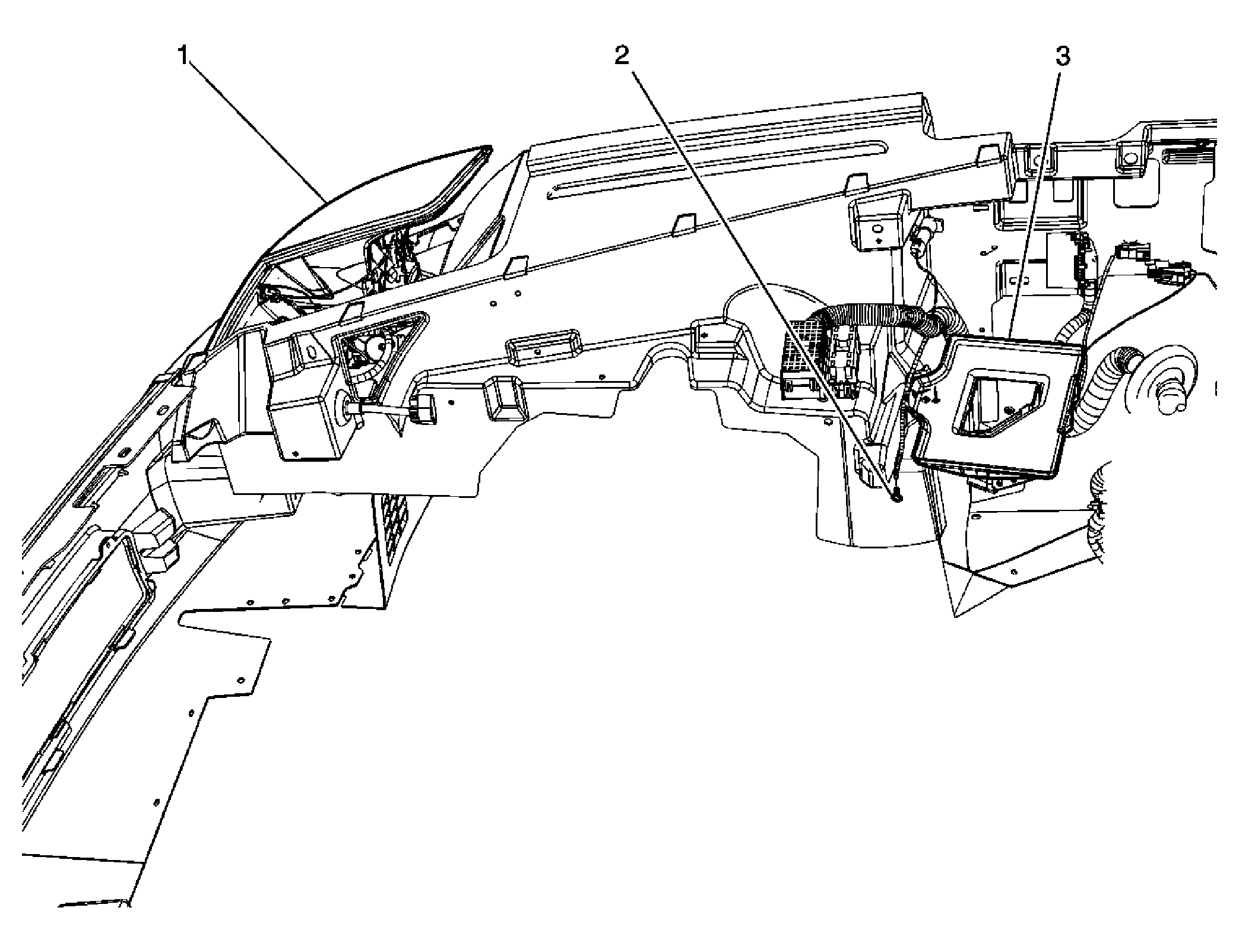

Fig 3: Identifying G104
GM1858144Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Assembly - Right Hand
2 G104
3 Battery Tray

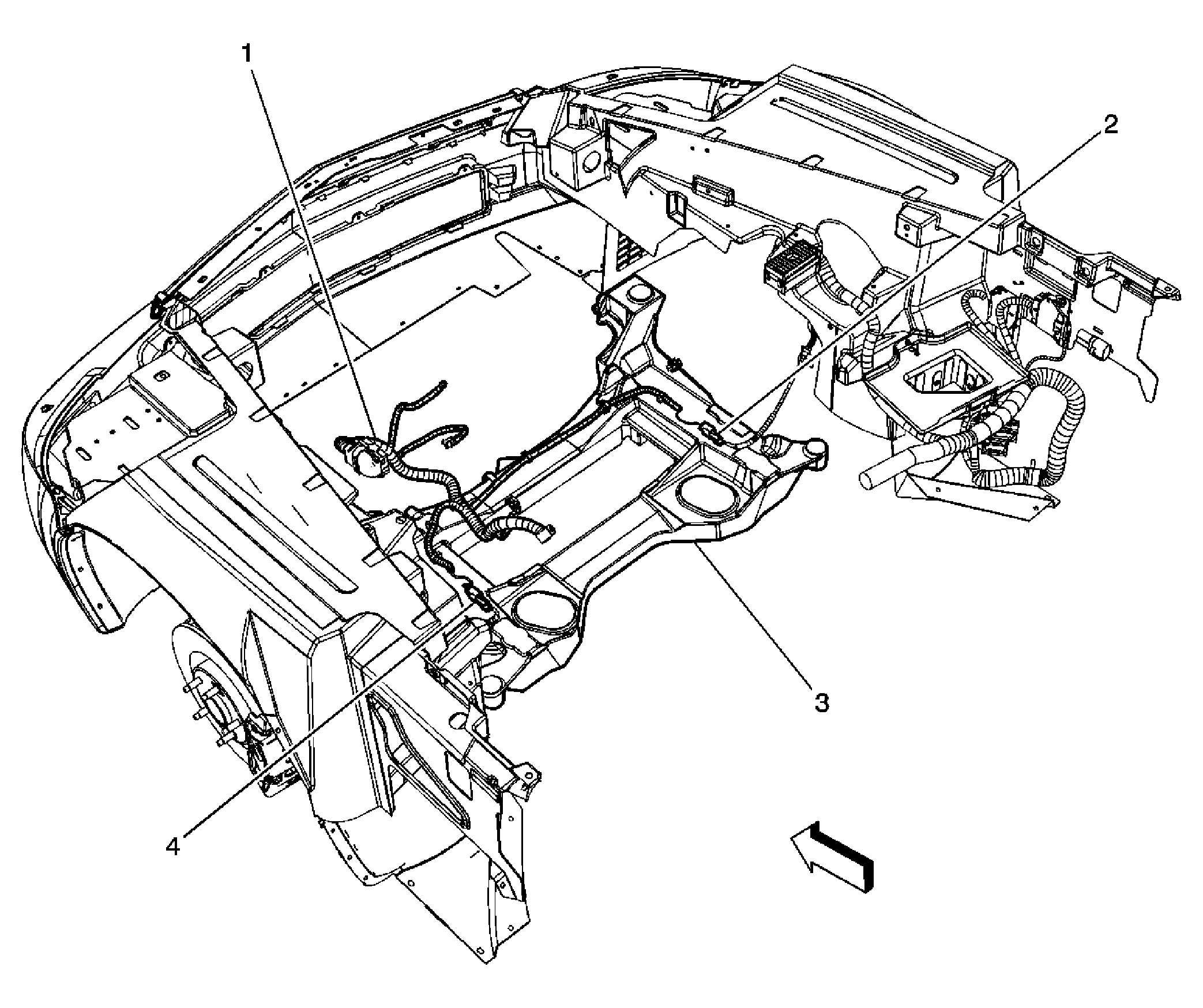

Fig 4: Identifying X159, X160
GM1858087Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Harness
2 X160
3 Engine Crossmember
4 X159
Fig 5: Identifying Top Of Engine (LH2) Components
GM1276512Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Camshaft Position (CMP) Actuator Solenoid Bank 1 Exhaust
2 Camshaft Position (CMP) Sensor Bank 1 Exhaust
3 Camshaft Position (CMP) Sensor Bank 1 Intake
4 Camshaft Position (CMP) Actuator Solenoid Bank 1 Intake
5 Manifold Absolute Pressure (MAP) Sensor
6 X140
7 Ignition Coil/Module 1
8 Fuel Injector 1
9 Ignition Coil/Module 3
10 Fuel Injector 3
11 Ignition Coil/Module 5
12 Fuel Injector 5
13 Ignition Coil/Module 7
14 Fuel Injector 7
15 Fuel Injector 6
16 Starter
17 X148
18 Fuel Injector 8
19 X139
20 Ignition Coil/Module 8
21 Ignition Coil/Module 6
22 Ignition Coil/Module 4
23 Fuel Injector 4
24 Ignition Coil/Module 2
25 Fuel Injector 2
26 Camshaft Position (CMP) Actuator Solenoid Bank 2 Exhaust
27 Camshaft Position (CMP) Sensor Bank 2 Exhaust
28 Camshaft Position (CMP) Sensor Bank 2 Intake
29 Camshaft Position (CMP) Actuator Solenoid Bank 2 Intake
30 Evaporative Emission (EVAP) Canister Purge Valve
31 Throttle Body Assembly

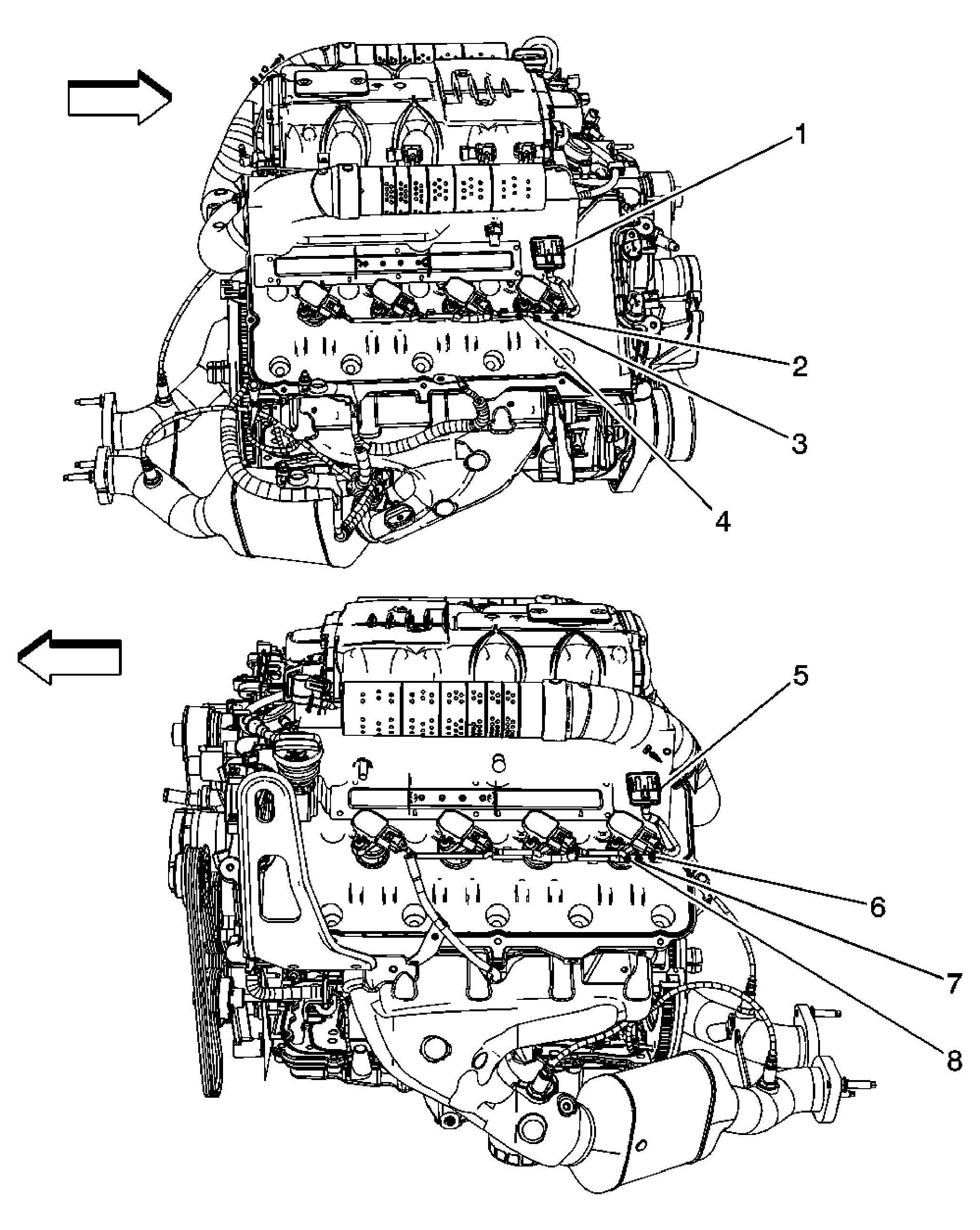

Fig 6: Identifying Ignition Coil Harness Splices (LC3 Shown LH2 Similar)
GM1859217Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X139
2 J131
3 J133
4 J135
5 X140
6 J142
7 J144
8 J146

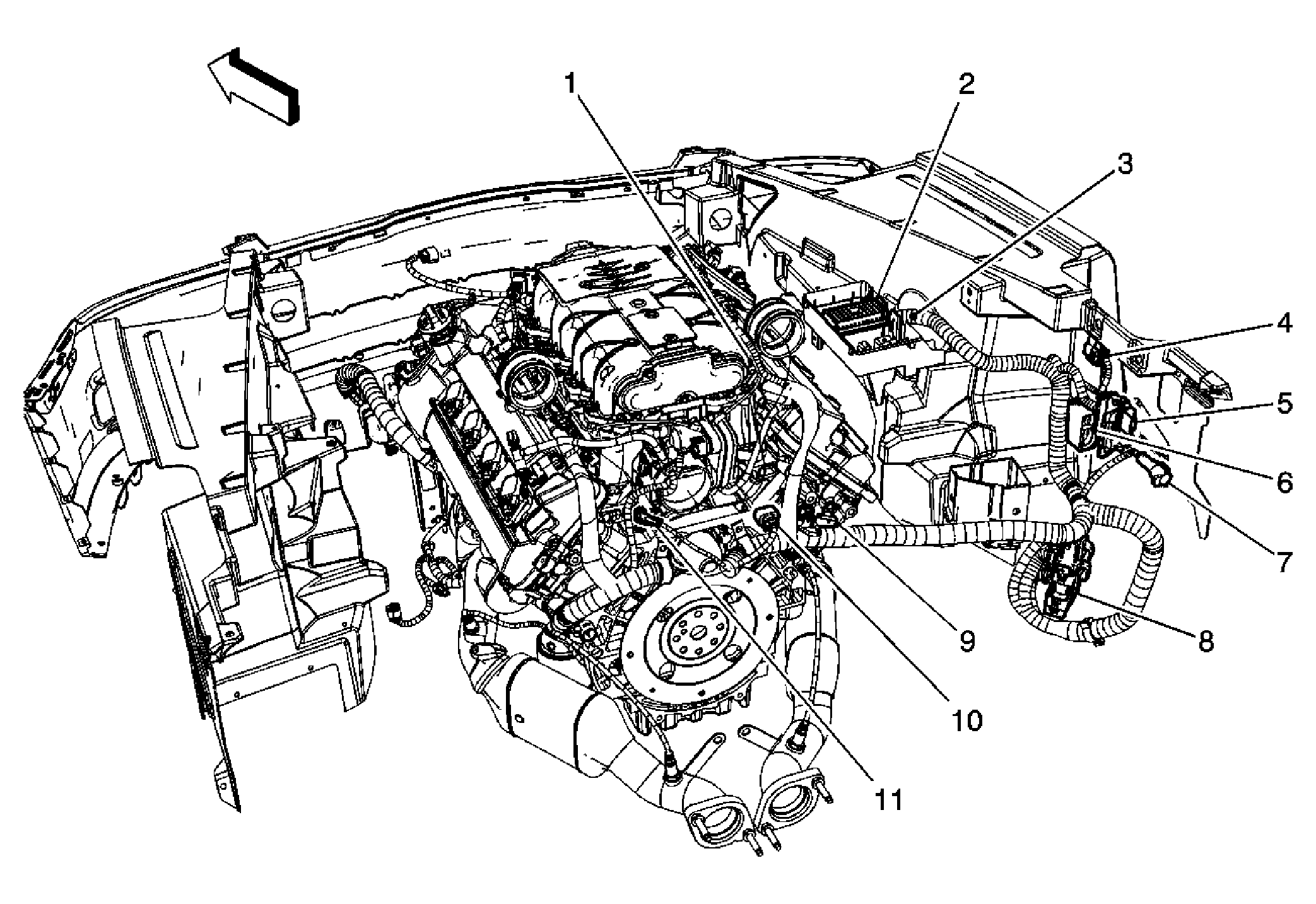

Fig 7: Identifying Engine Harness Routing (1 Of 2)
GM1689363Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G106
2 Fuse Block - Underhood
3 J105
4 X186 Engine Harness to Forward Lamp Harness
5 X180 Engine Harness to I/P Harness
6 X184 Engine Harness to Transmission Harness
7 X182 Engine Harness to I/P Harness
8 Engine Control Module (ECM) Connectors
9 JX106
10 X148 Engine Harness to Knock Sensor (KS)/Crankshaft Position (CKP) Sensor Jumper Harness
11 X188 Engine Harness to Starter Solenoid Jumper Harness

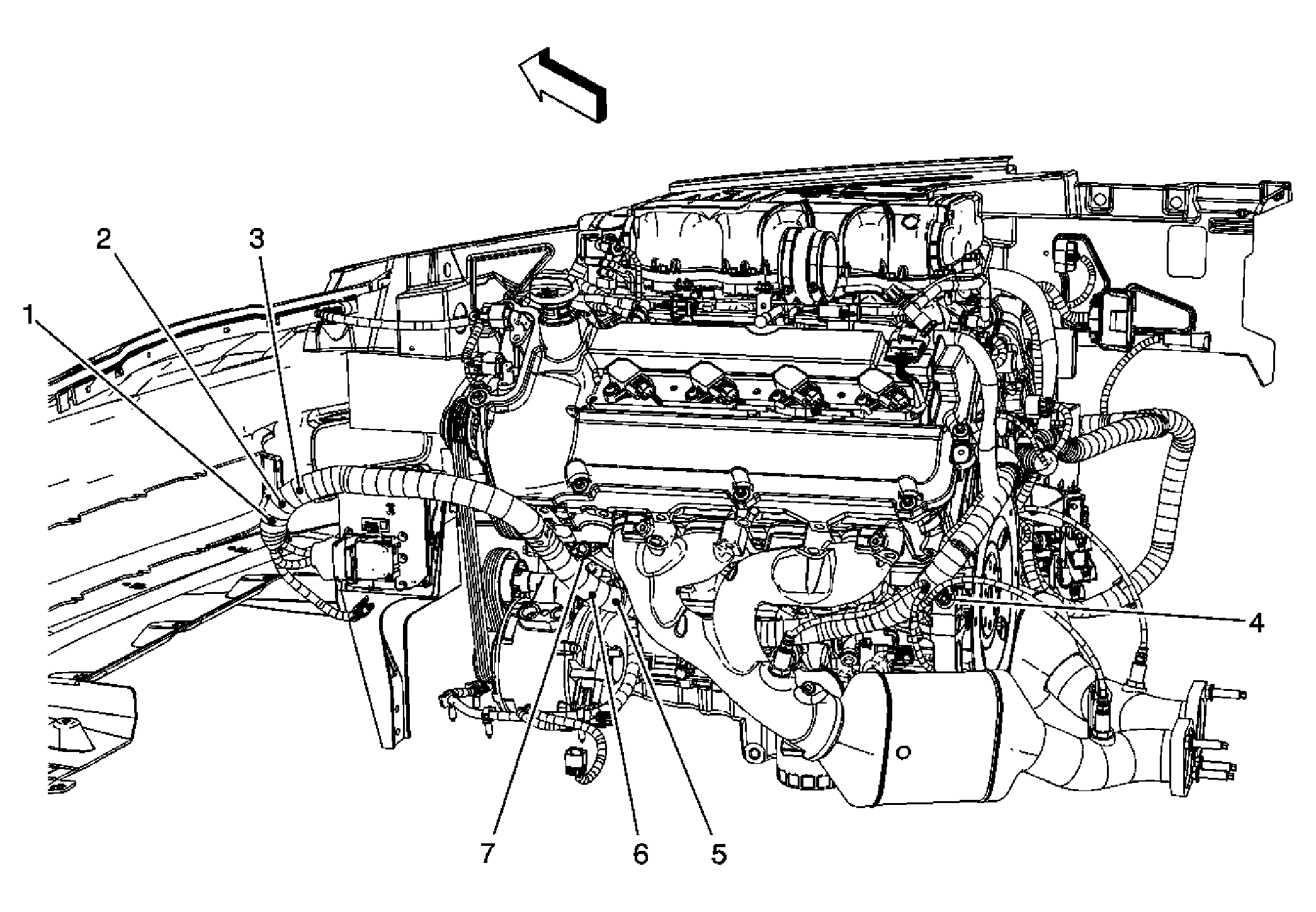

Fig 8: Identifying Engine Harness Routing (2 Of 2)
GM1689364Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J238
2 J244
3 J195
4 G107
5 J193
6 J191
7 G105

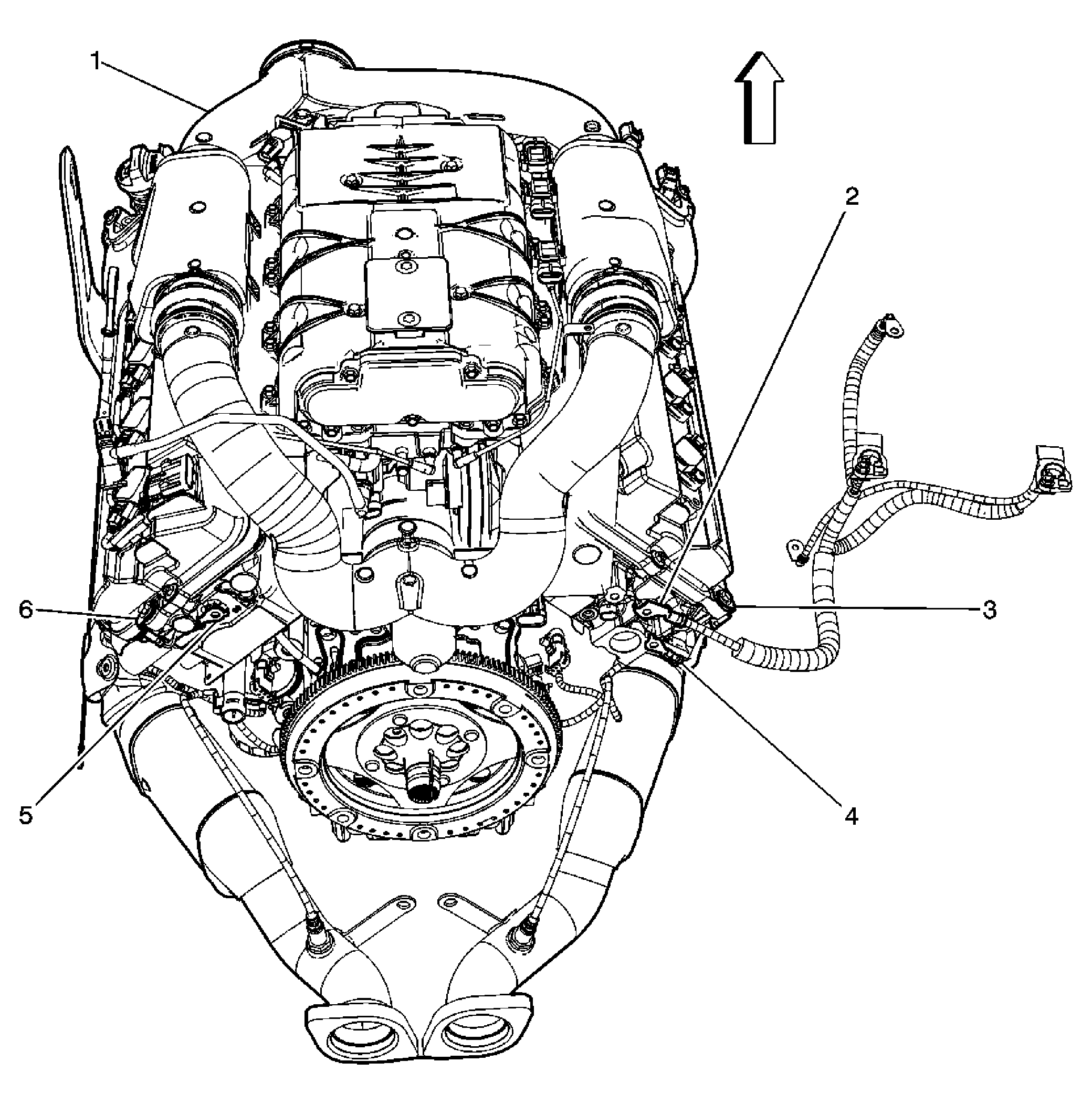

Fig 9: Identifying Engine Grounds
GM1858264Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Assembly
2 G107
3 G112 (LC3)
4 G111 (LC3)
5 G110 (LC3)
6 G109 (LC3)

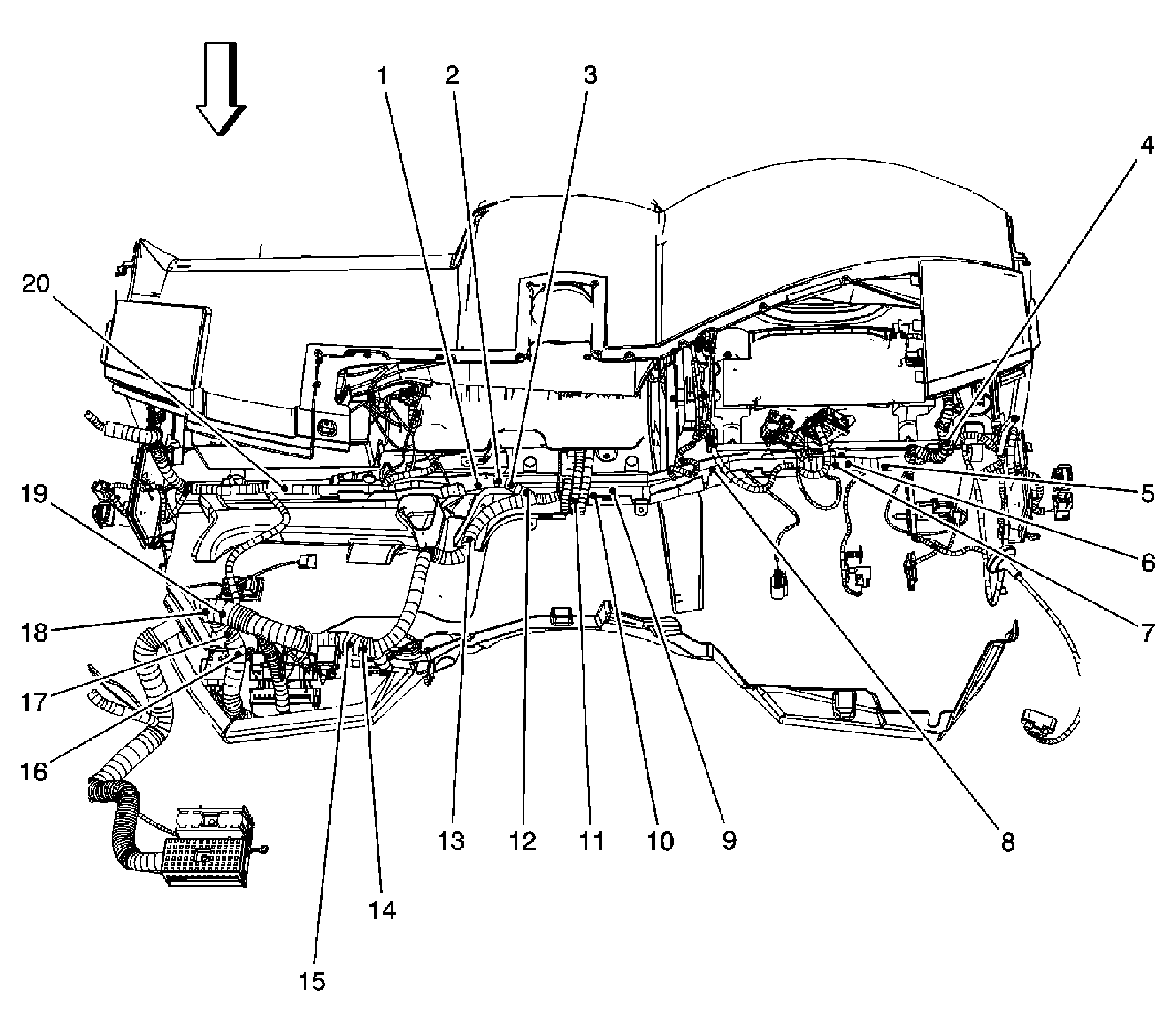

Fig 10: Identifying I/P Body Harness Splices
GM1859207Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J238
2 J236
3 J234
4 J211
5 J237
6 J231
7 J240
8 J244
9 J251
10 J242
11 J255
12 J232
13 J248
14 J228
15 J230
16 J222
17 J224
18 J226
19 J227
20 J275

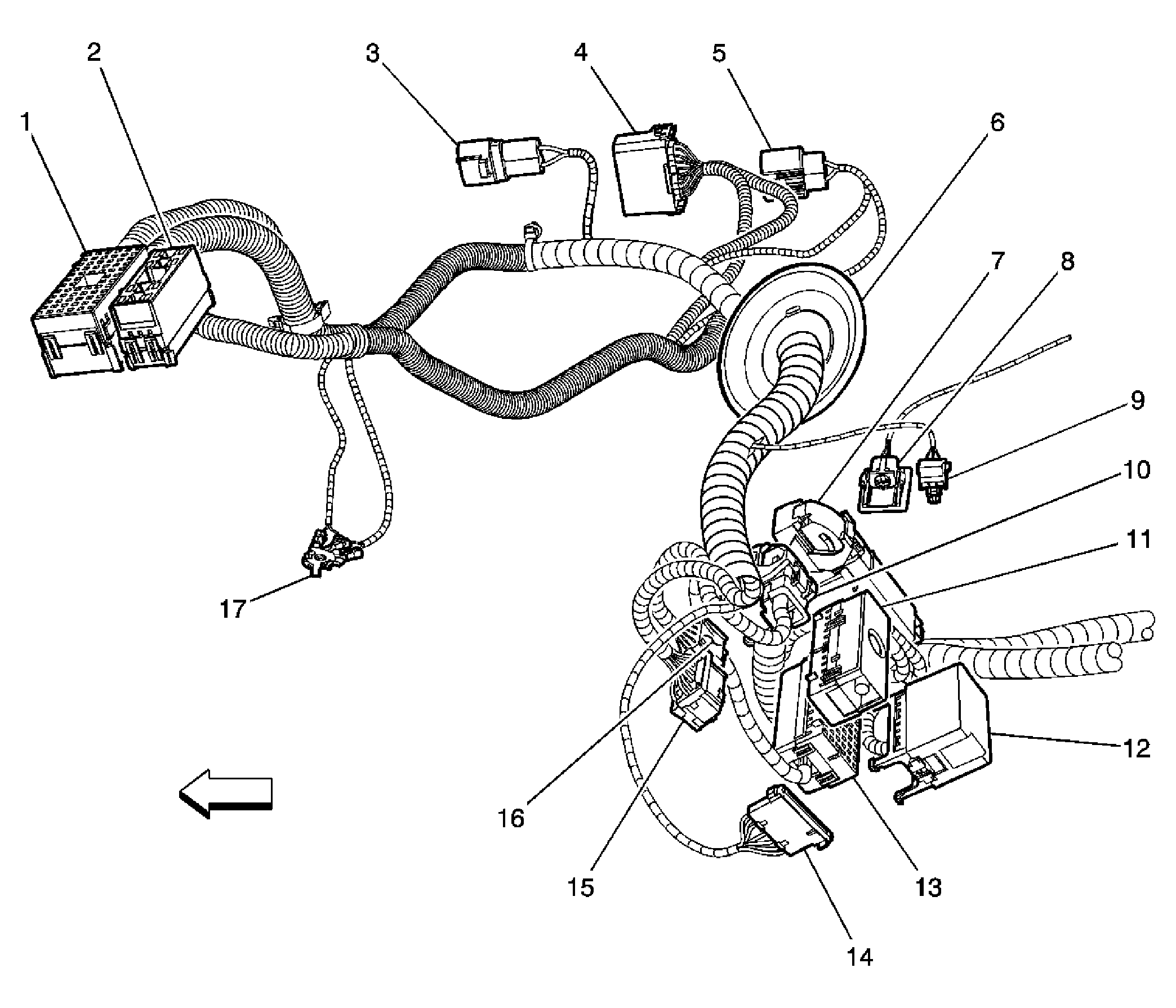

Fig 11: Identifying I/P Harness Routing - Engine Compartment and Lower Right Side of I/P
GM1442131Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block Underhood X3
2 Fuse Block Underhood X4
3 X186
4 X180
5 X182
6 Engine Compartment Pass-Through
7 Body Control Module (BCM) X2
8 Footwell Courtesy Lamp - Right
9 HVAC Blower Control
10 Body Control Module (BCM) X1
11 Relay Block - Instrument Panel
12 Fuse Block - Instrument Panel
13 Body Control Module (BCM) X4
14 JX208
15 Audio Amplifier X2
16 Audio Amplifier X1
17 G104

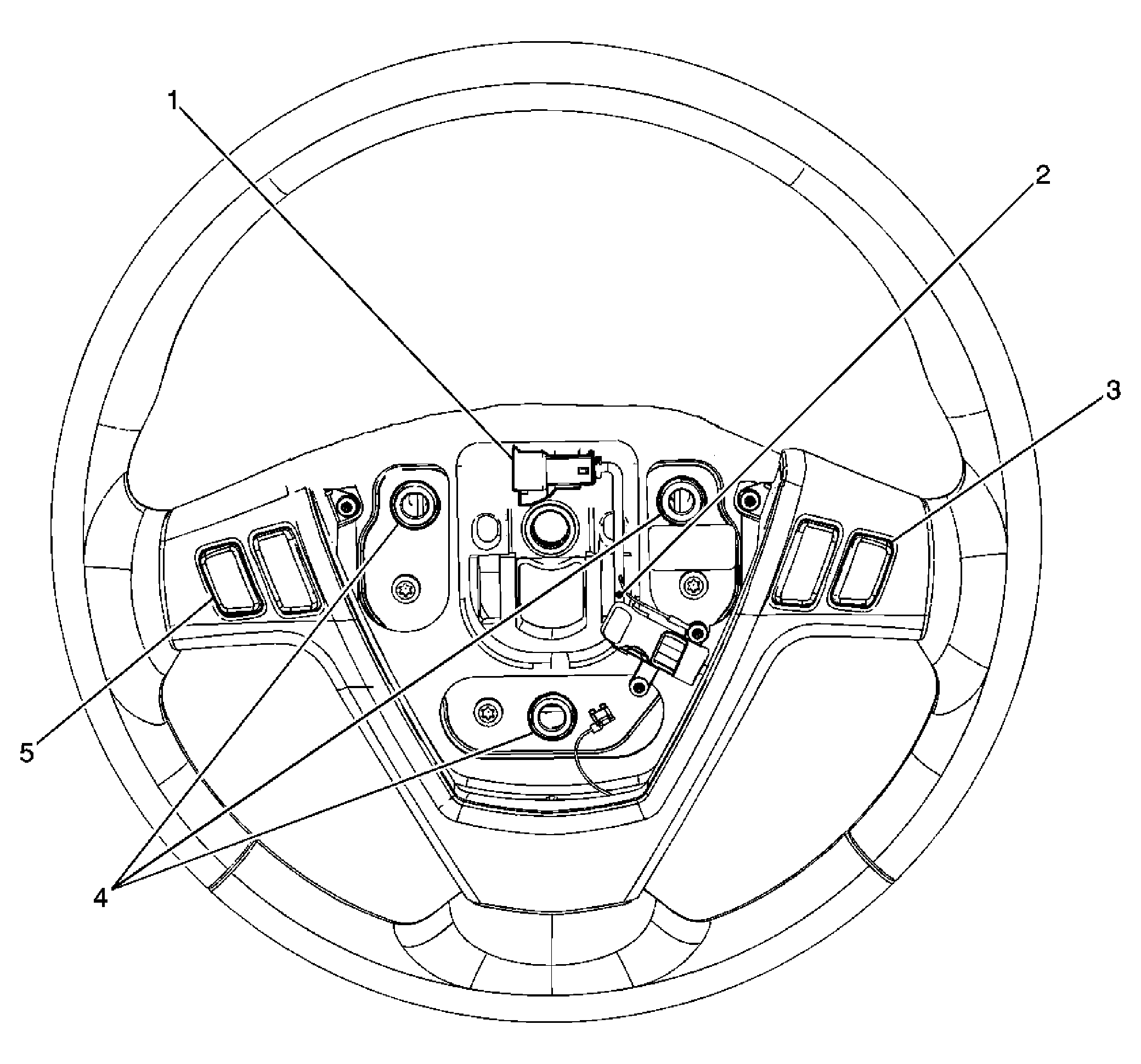

Fig 12: Identifying Steering Wheel Components
GM1863944Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Steering Wheel Module Coil - X5
2 J293
3 Steering Wheel Controls - Right
4 Horn Switch Contacts
5 Steering Wheel Controls - Left

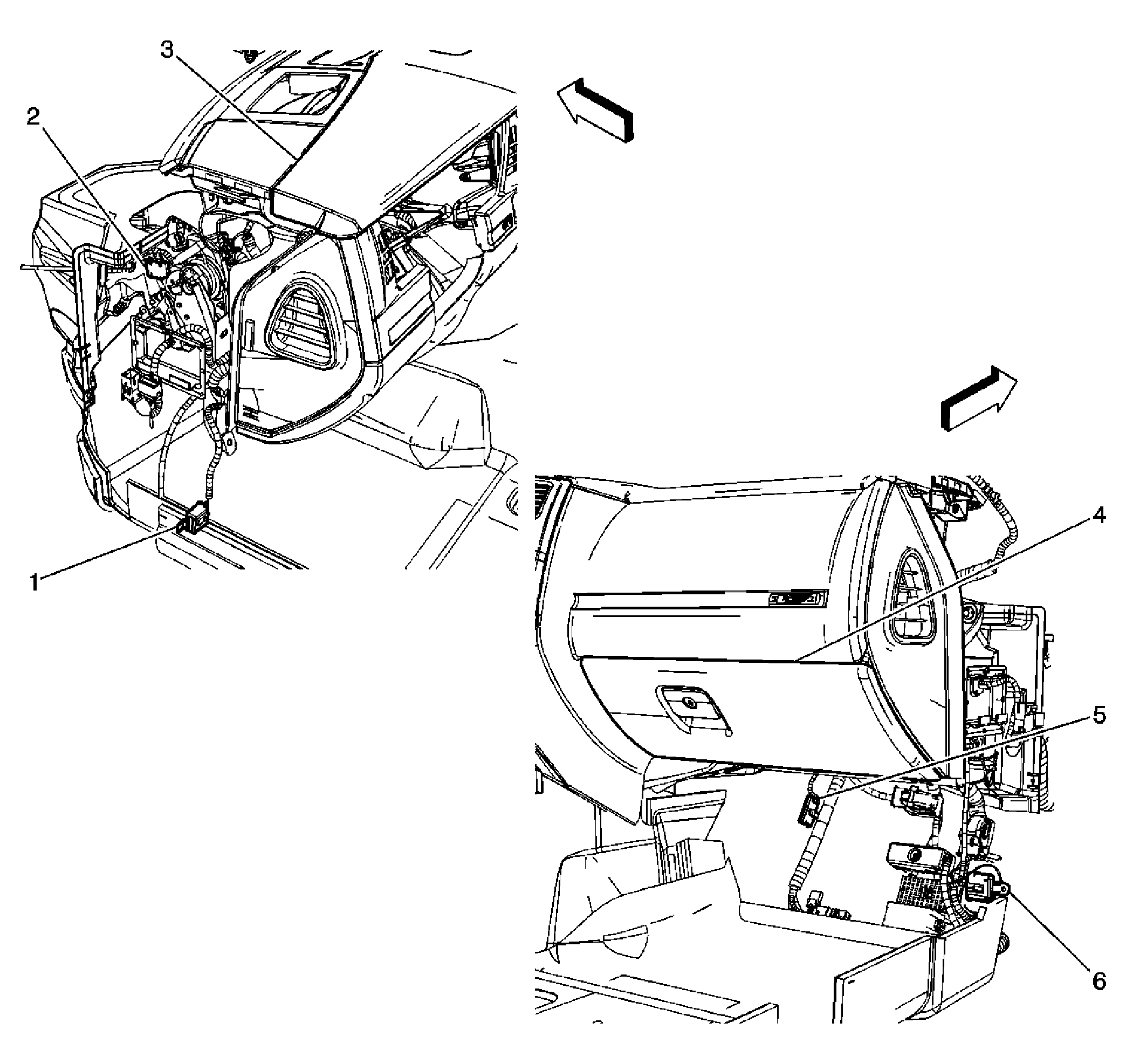

Fig 13: Identifying SP201, SP202, SP205, SP208
GM1858353Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 JX201
2 JX205
3 I/P Upper Trim Pad
4 I/P Compartment Door
5 JX208
6 JX202

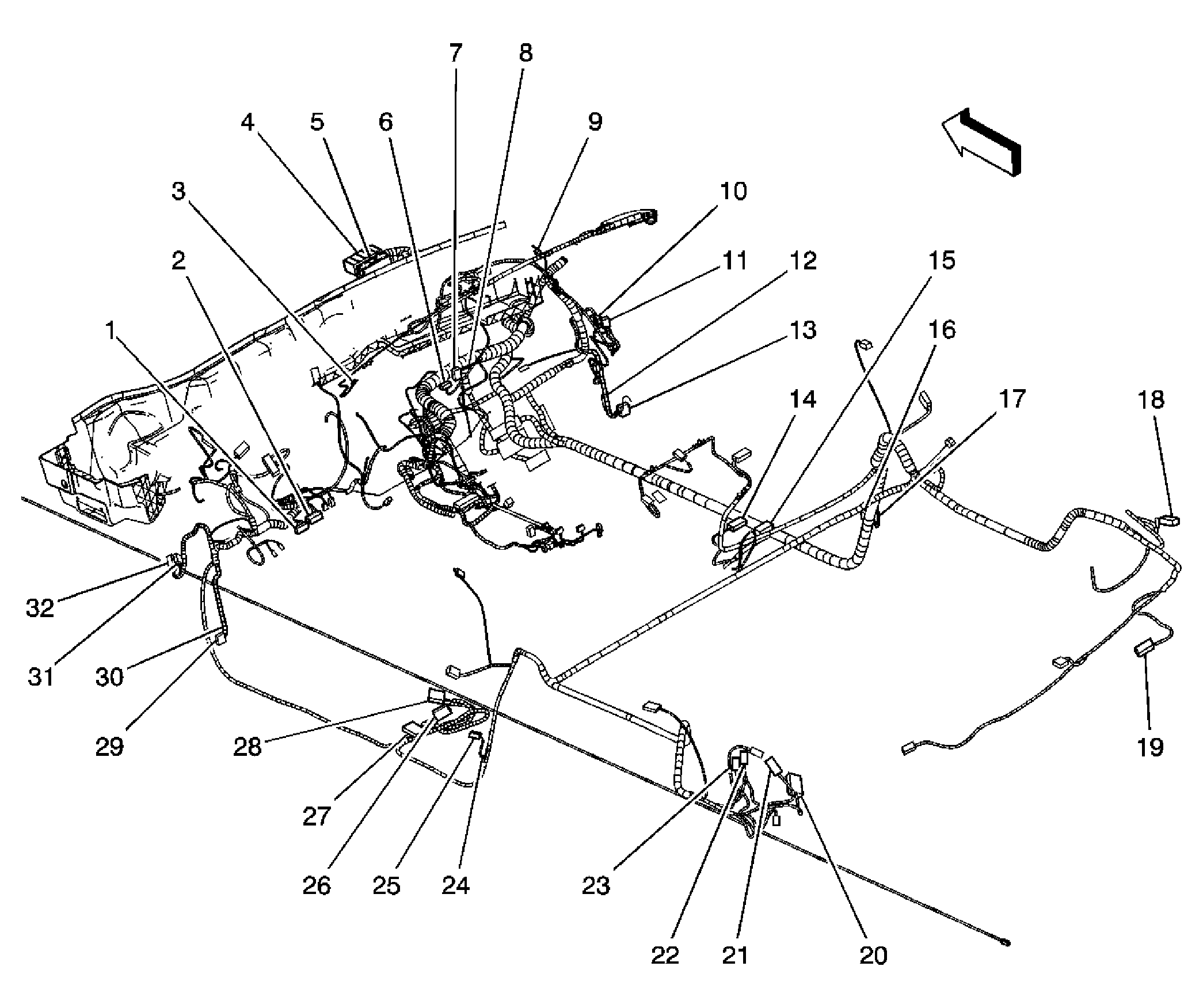

Fig 14: Identifying Instrument Panel Harness Components
GM1361208Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 DLC Connector
2 X231
3 X311
4 Fuse Block - Underhood X3
5 Fuse Block - Underhood X4
6 X220
7 Auxiliary Power Relay
8 JX208
9 X180
10 X600
11 X602
12 JX202
13 G202
14 X380
15 X382
16 JX302
17 G302
18 X482
19 X480
20 X455
21 X437
22 X433
23 X435
24 JX301
25 G301
26 X377
27 X375
28 X379
29 JX201
30 G201
31 X501
32 X503

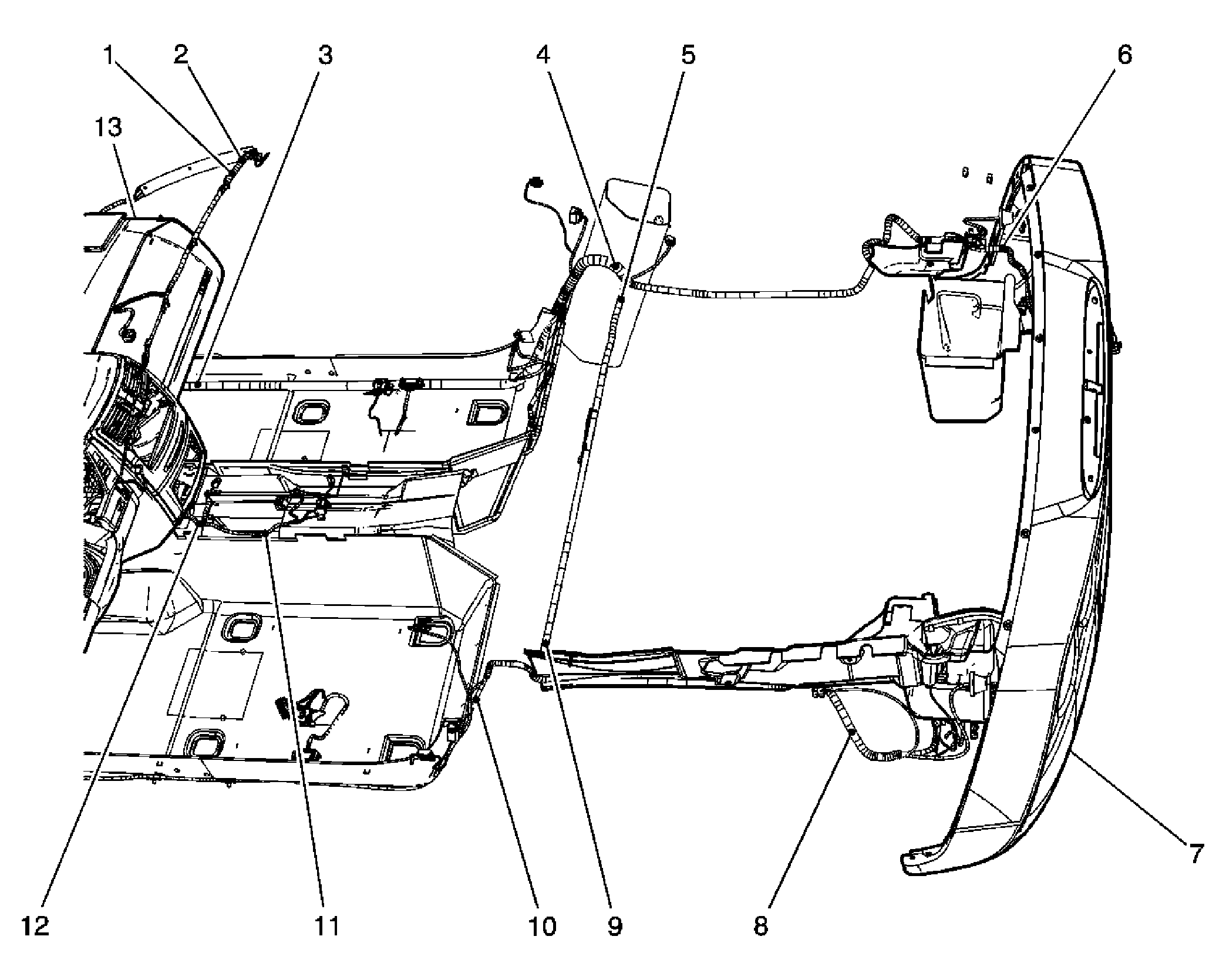

Fig 15: Identifying I/P Body Harness Splices - Passenger Compartment
GM1859203Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J310
2 J312
3 J208
4 J310
5 J353
6 J422
7 Rear Fascia
8 J415
9 J355
10 J375
11 J276 (Except Export)
12 J246
13 Instrument Panel

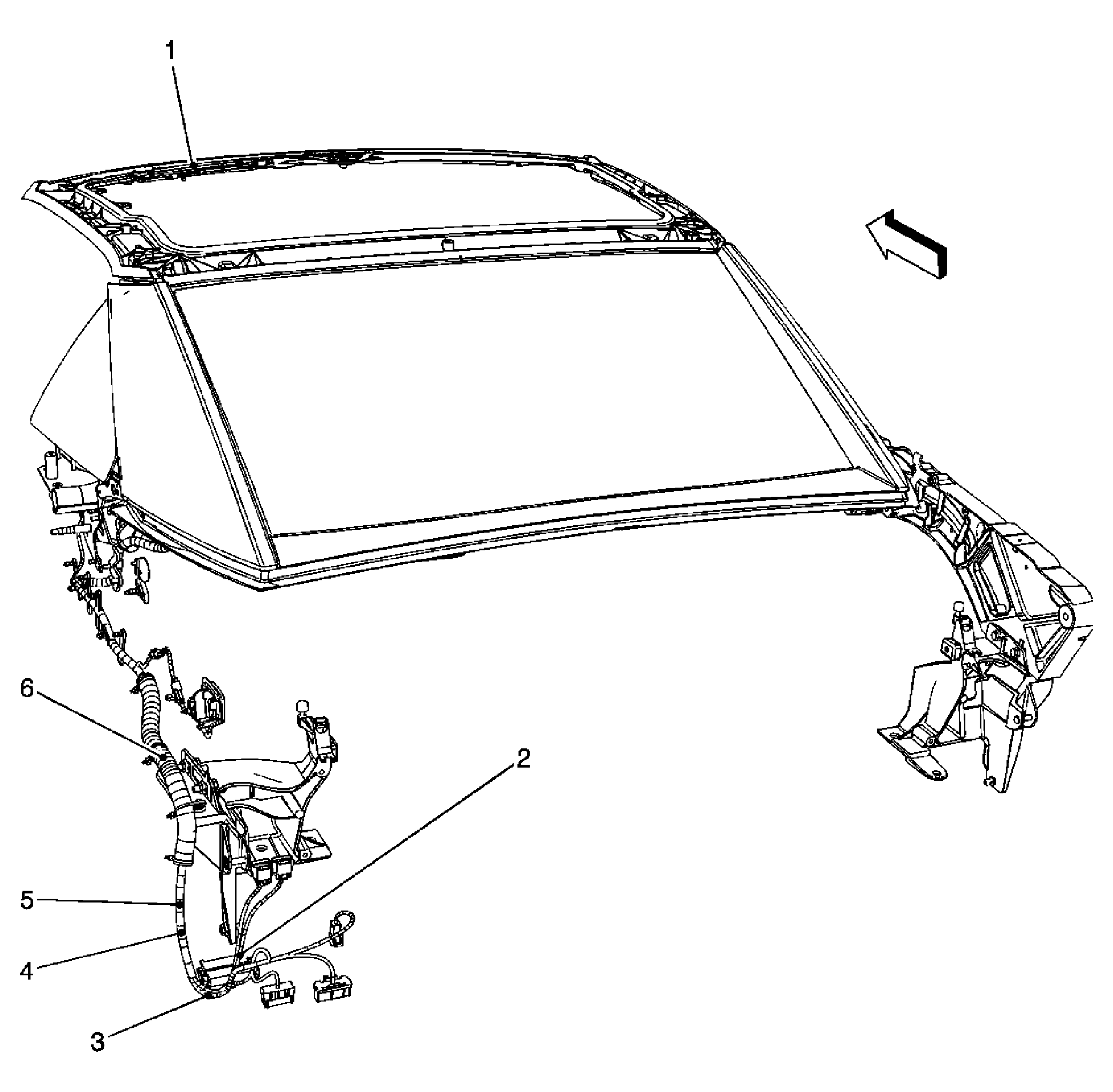

Fig 16: Identifying Folding Top Harness - Splices
GM1859200Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J319
2 J337
3 J339
4 J335
5 J333
6 J331

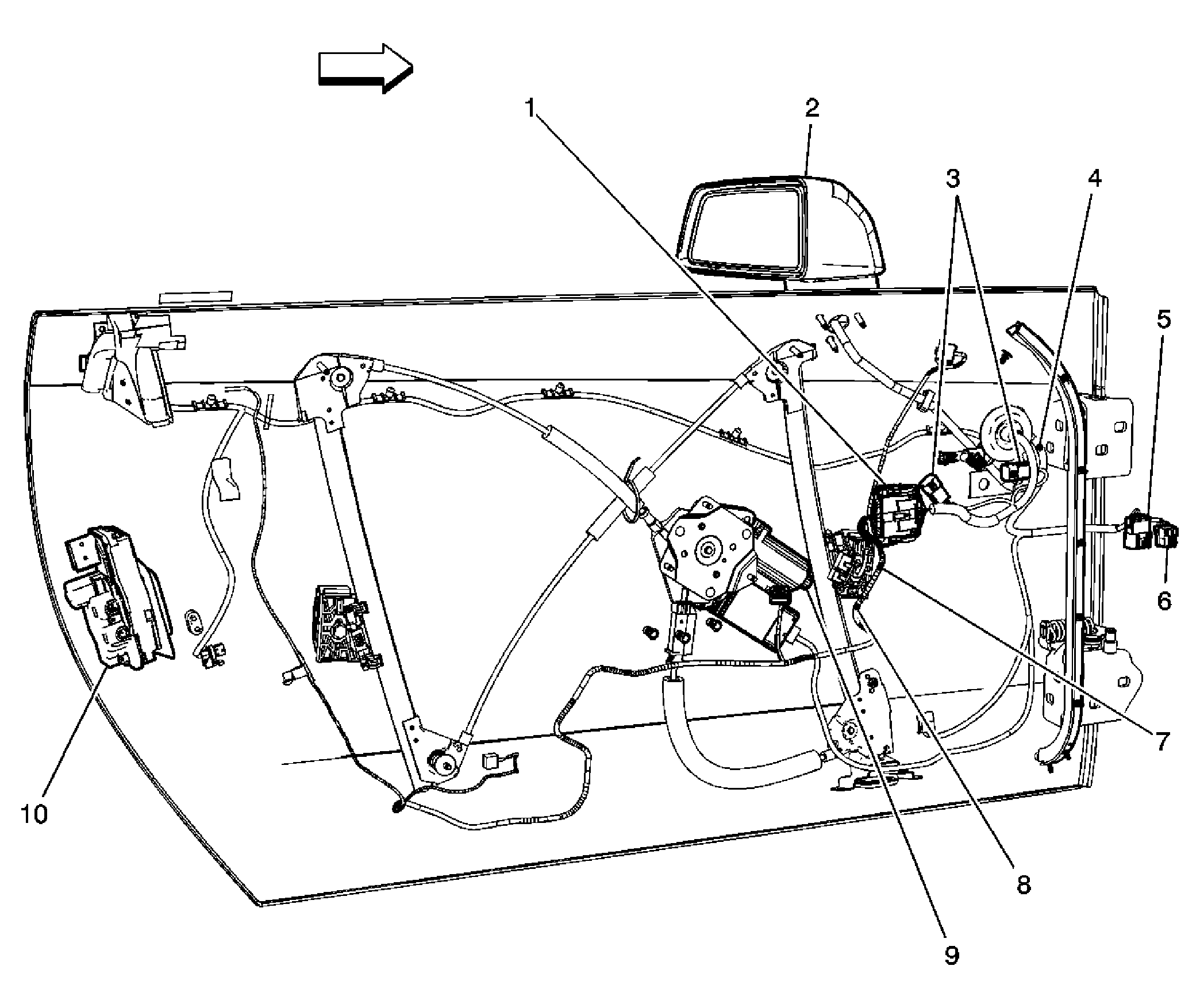

Fig 17: Identifying Driver Door Harness Routing
GM1858118Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X555
2 Outside Rearview Mirror
3 Outside Rearview Mirror Connectors
4 J539
5 X501
6 X503
7 J579
8 J559
9 Window Motor
10 Door Latch Assembly

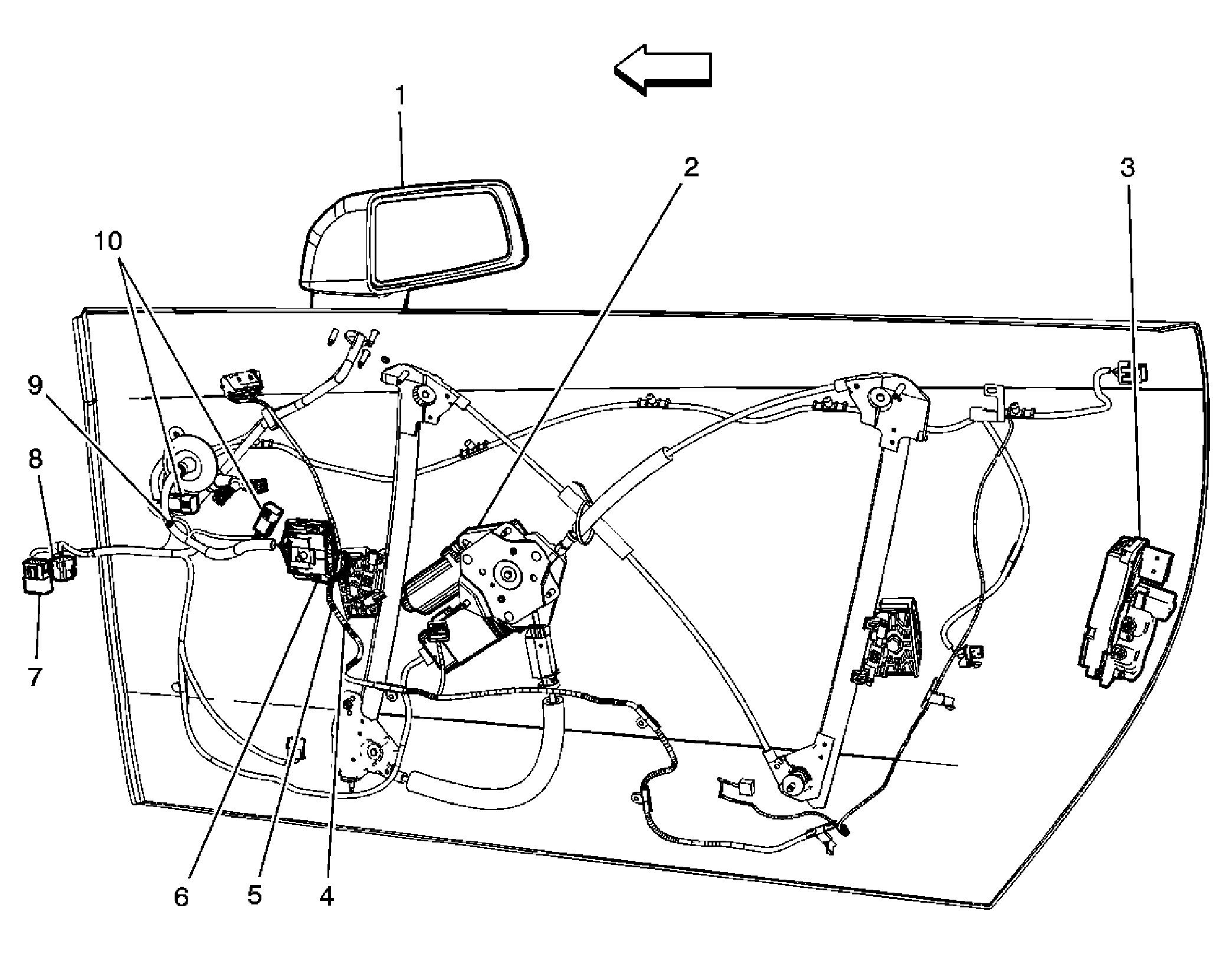

Fig 18: Identifying Passenger Door Harness Routing
GM1858117Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Rearview Mirror
2 Window Motor
3 Door Latch Assembly
4 J660
5 J680
6 X666
7 X600
8 X607
9 X911
10 Outside Rearview Mirror Connectors

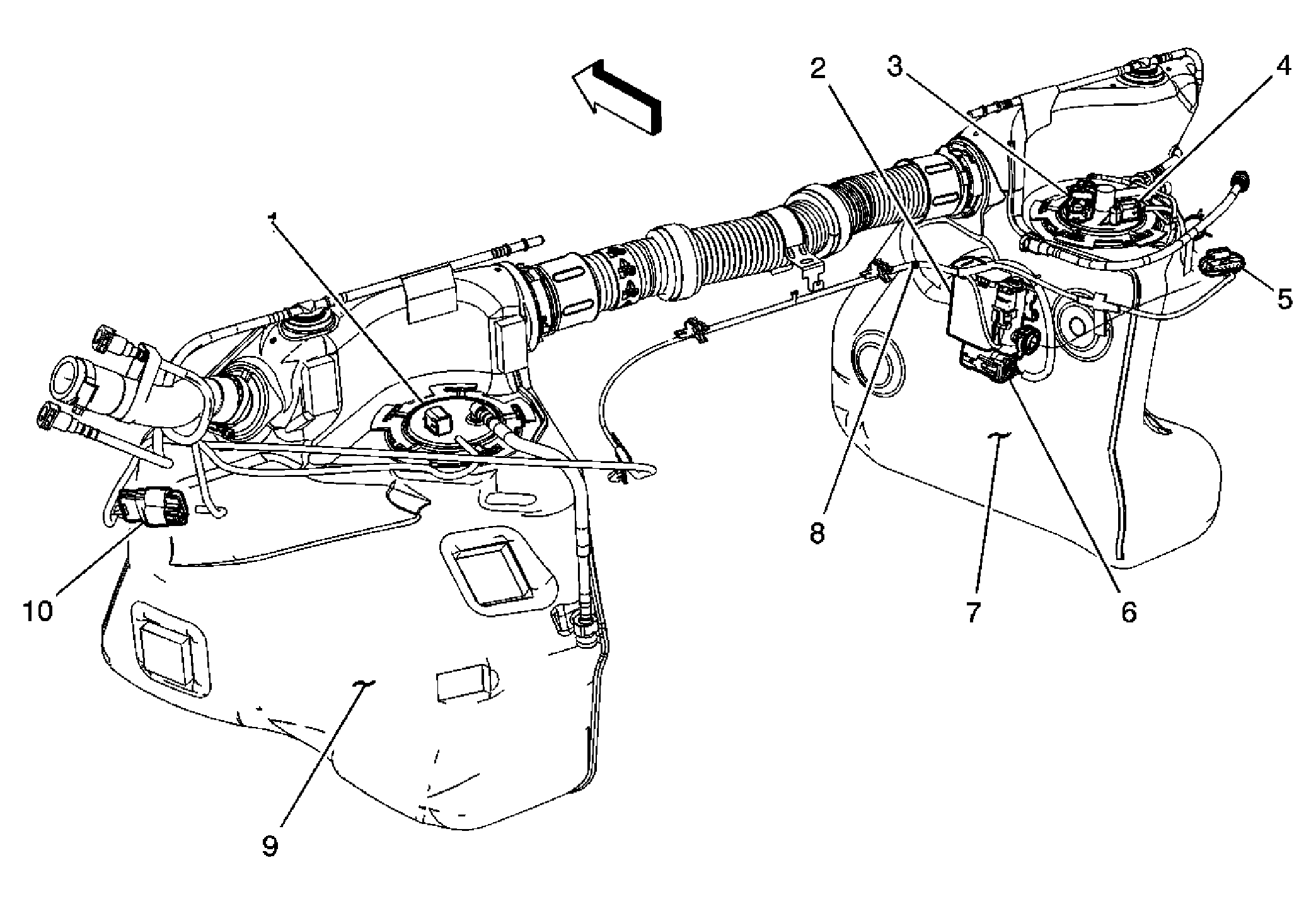

Fig 19: Identifying Fuel Tank
GM1863937Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Pump and Sender Assembly
2 Evaporative Emission (EVAP) Canister Vent Solenoid
3 Fuel Tank Pressure (FTP) Sensor
4 Fuel Level Sensor - Right
5 X460
6 X420
7 Fuel Tank-Right
8 J460
9 Fuel Tank-Left
10 X459

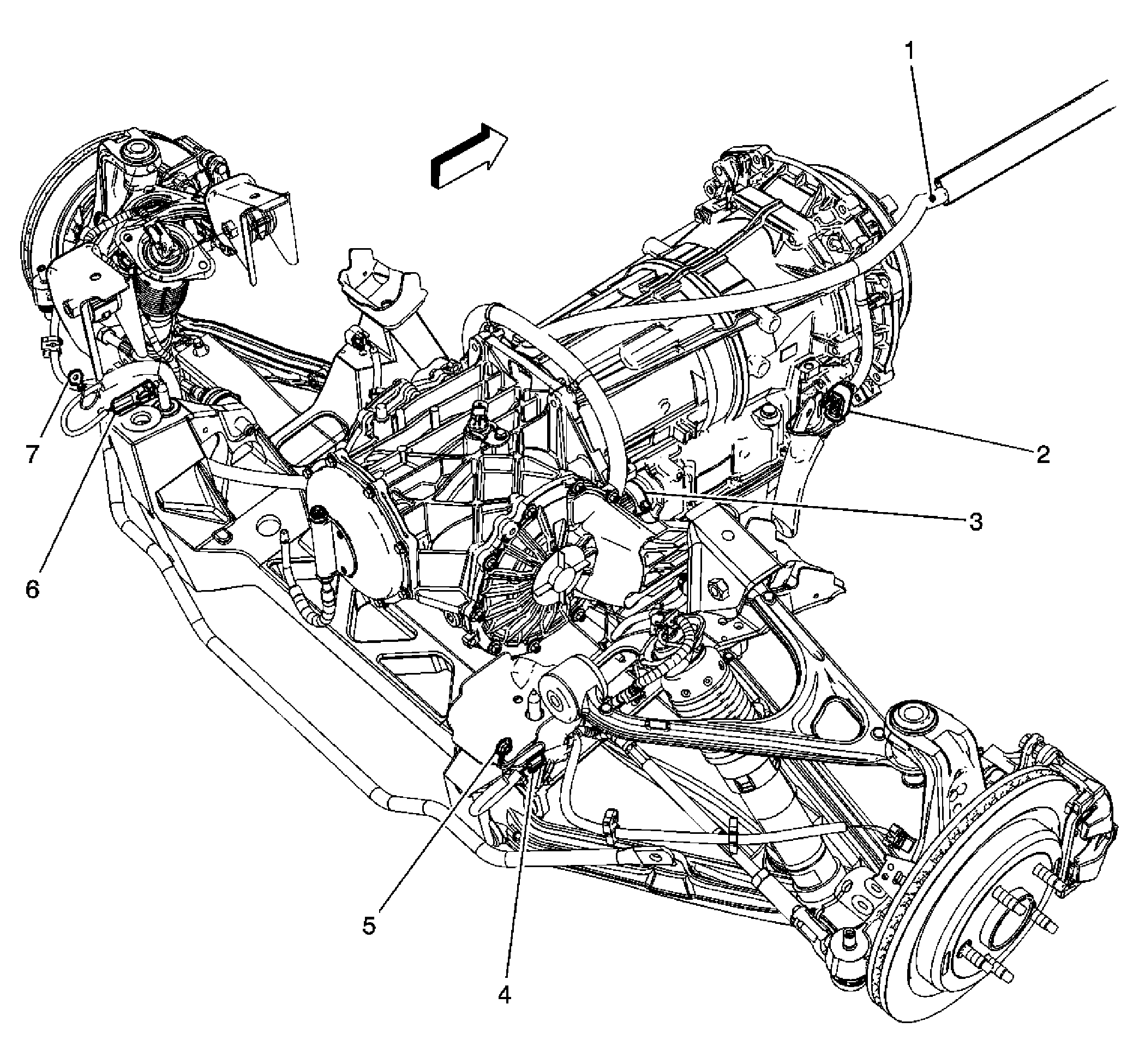

Fig 20: Identifying Transmission Harness Routing
GM1858066Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J420
2 X420
3 X400
4 X440
5 G402
6 X439
7 G401

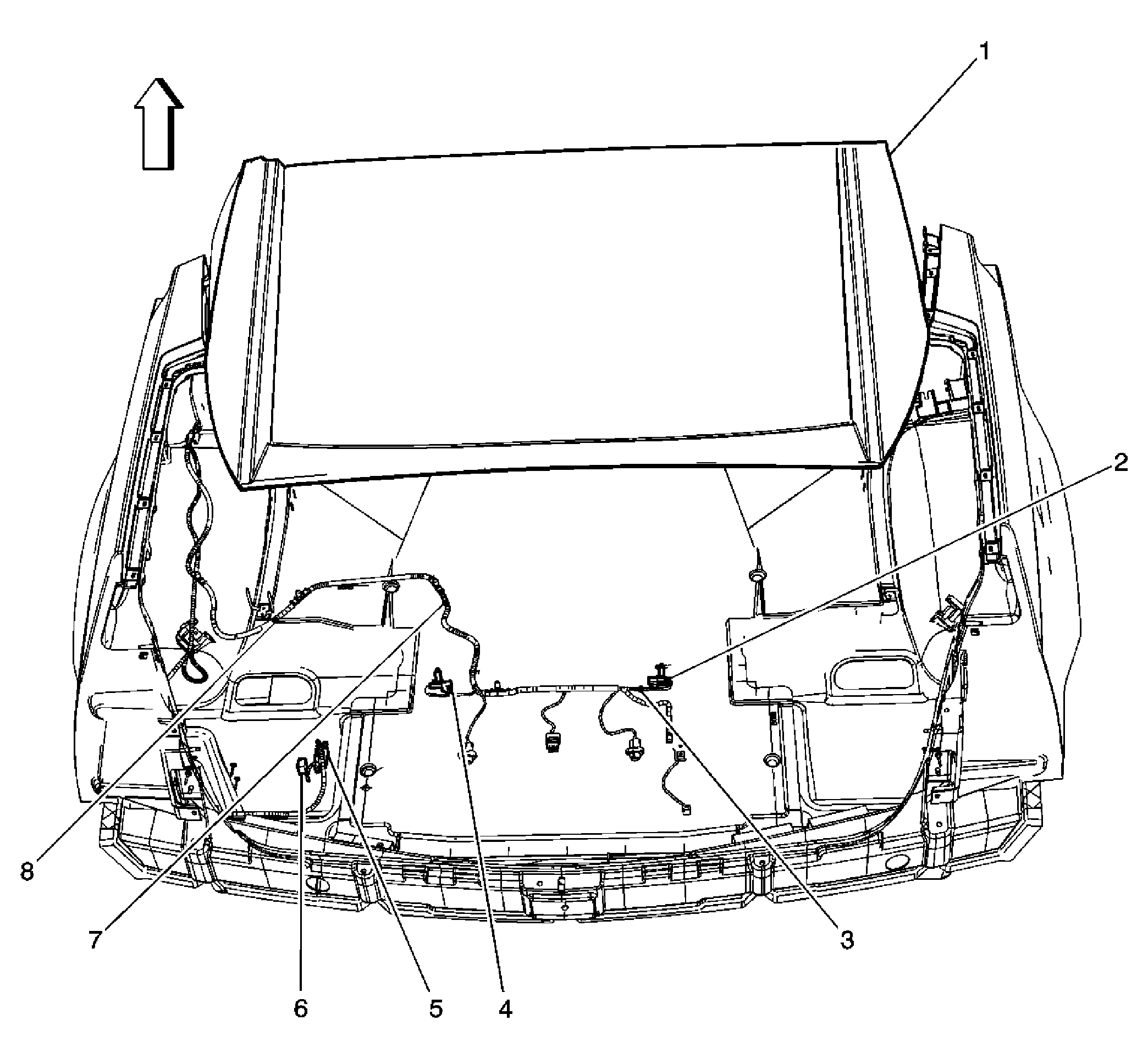

Fig 21: Identifying Rear Decklid Harness Routing
GM1858160Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Folding Top
2 X960
3 J939
4 X935
5 X455
6 X911
7 J935
8 J931

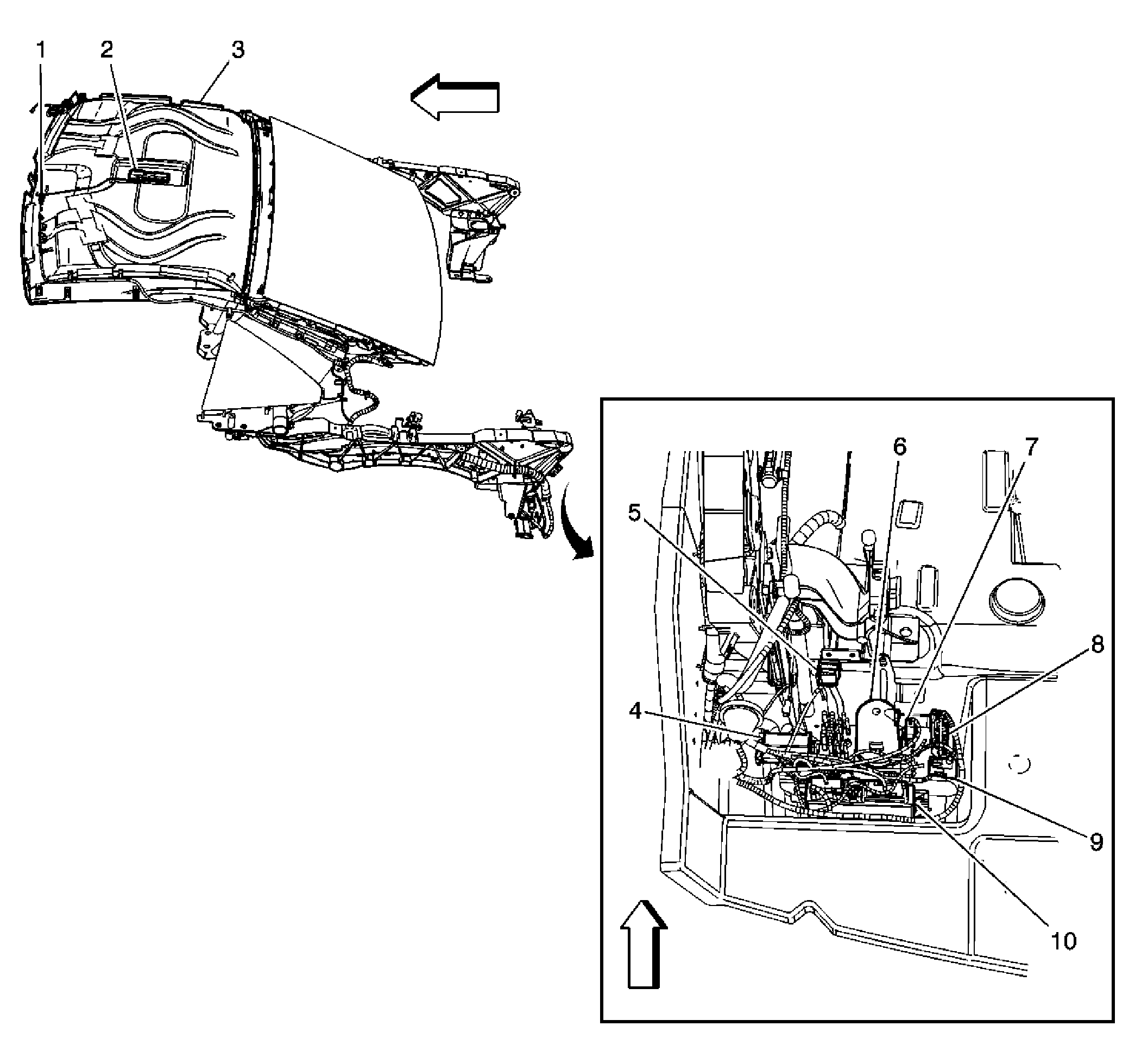

Fig 22: Identifying Folding Top Harness Routing
GM1858080Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X333
2 Intrusion Sensor
3 Folding Top
4 X431
5 X435
6 Folding Top Pump/Motor Assembly
7 X911
8 X455
9 X433
10 Folding Top Control Module

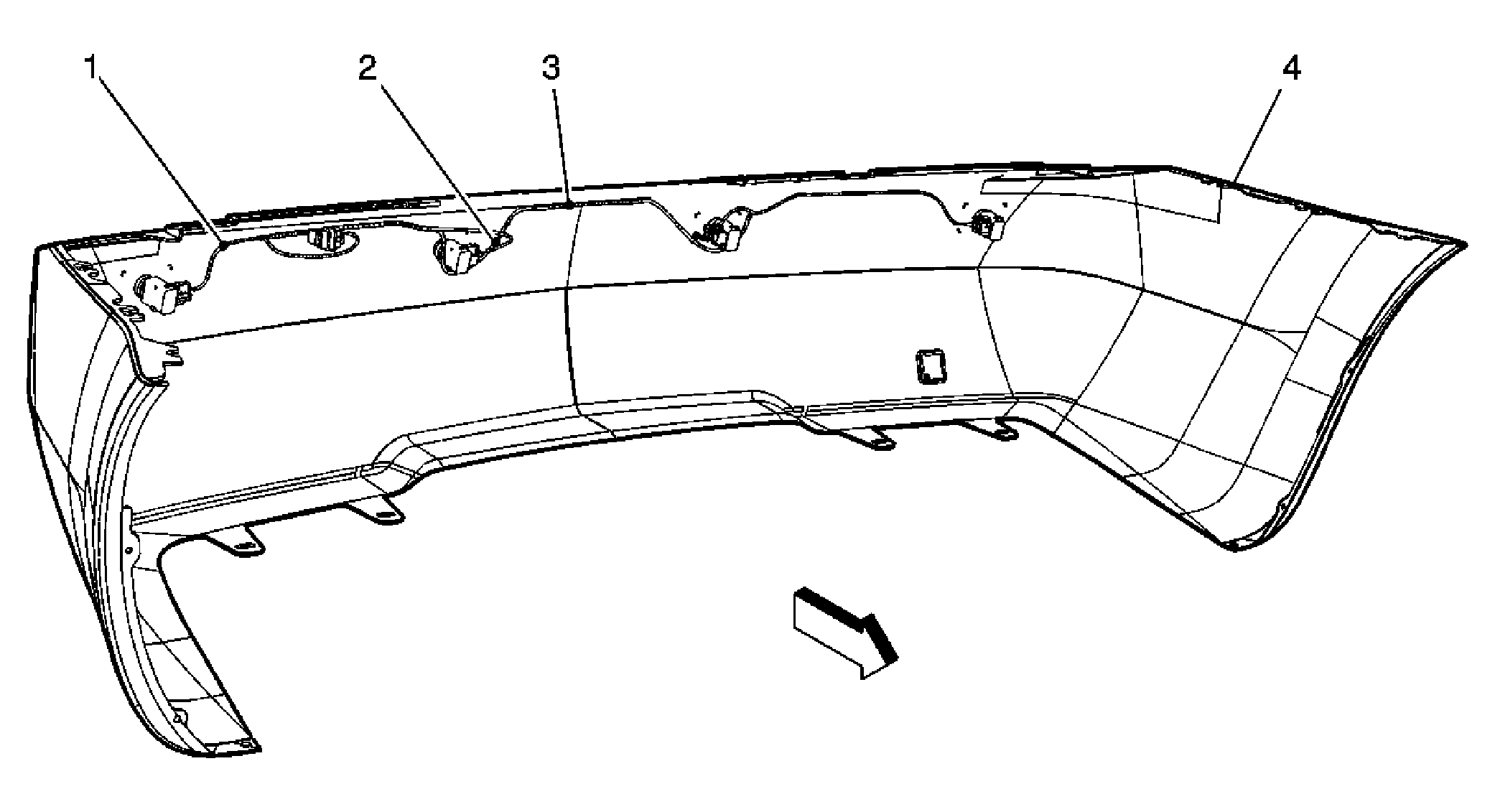

Fig 23: Identifying Rear Fascia Harness Splices
GM1859212Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Object Sensor Harness
2 J480
3 J479
4 Rear Fascia

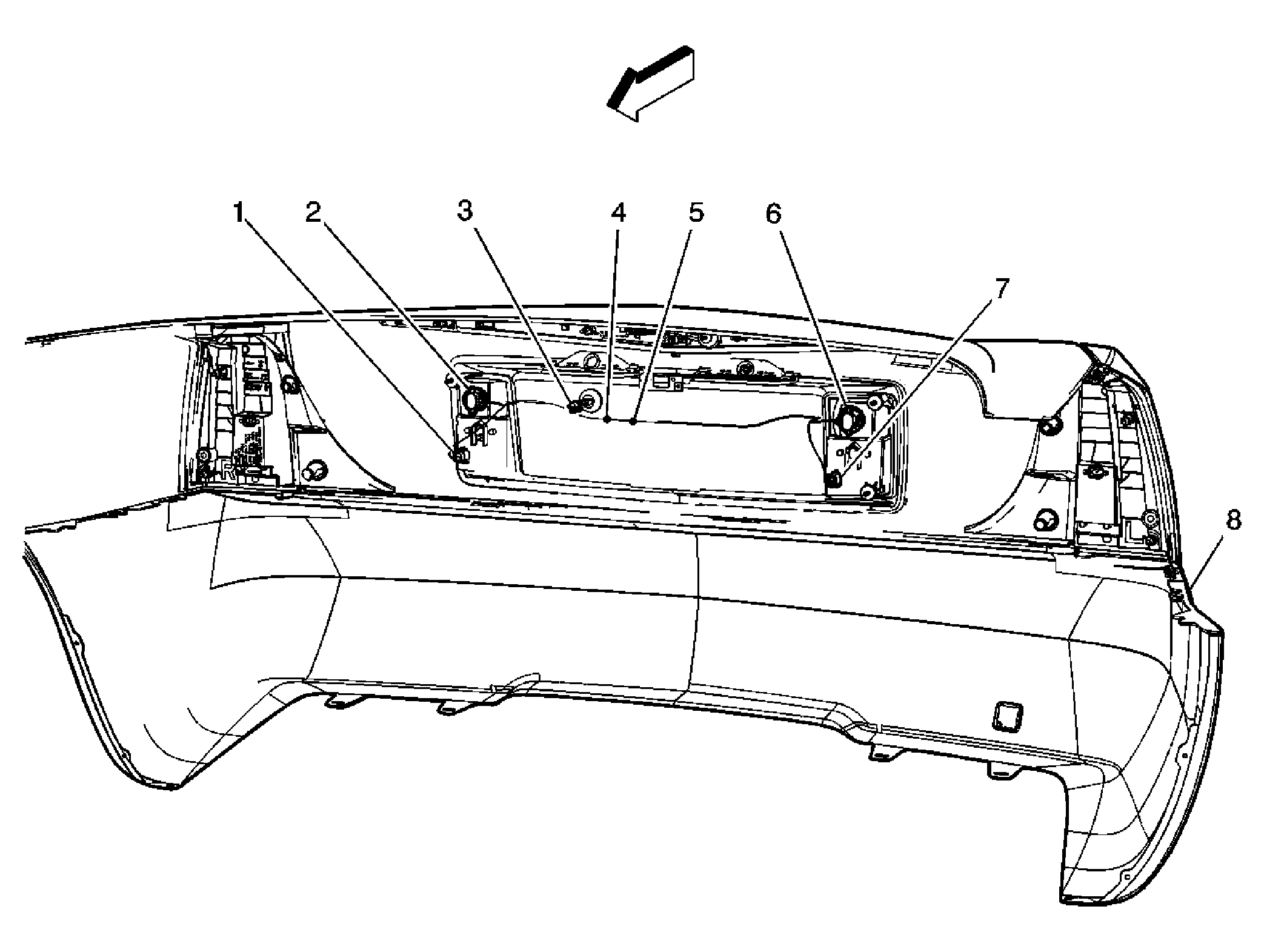

Fig 24: Identifying Rear Fascia - Export
GM1863883Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fog Lamp - Right Rear
2 Backup Lamp - Right
3 X960
4 J960
5 J962
6 Backup Lamp - Left
7 Fog Lamp - Left Rear
8 Rear Fascia
