Ground Distribution Schematics

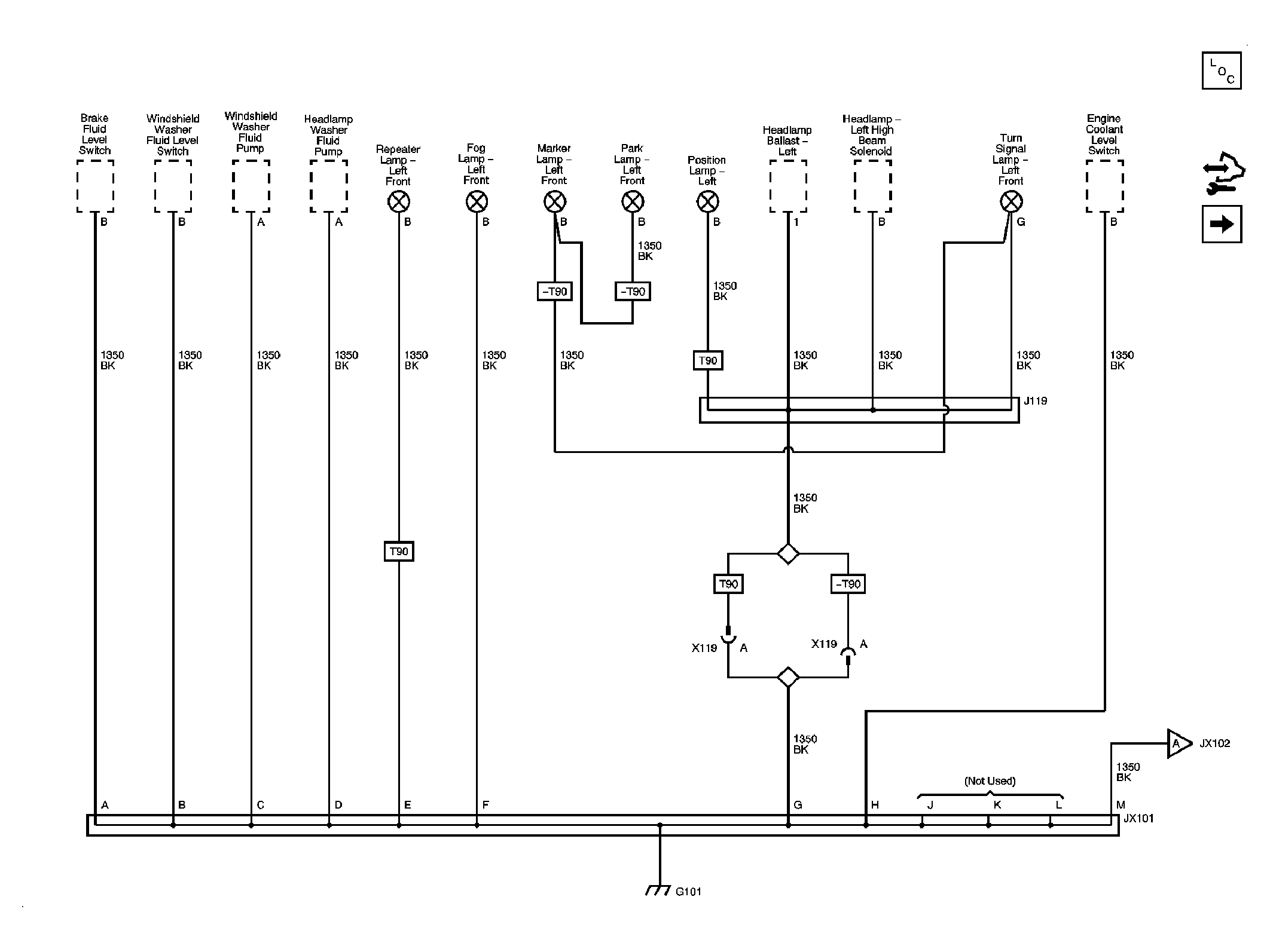

Fig 1: G101

GM2075557

Courtesy of GENERAL MOTORS CORP.

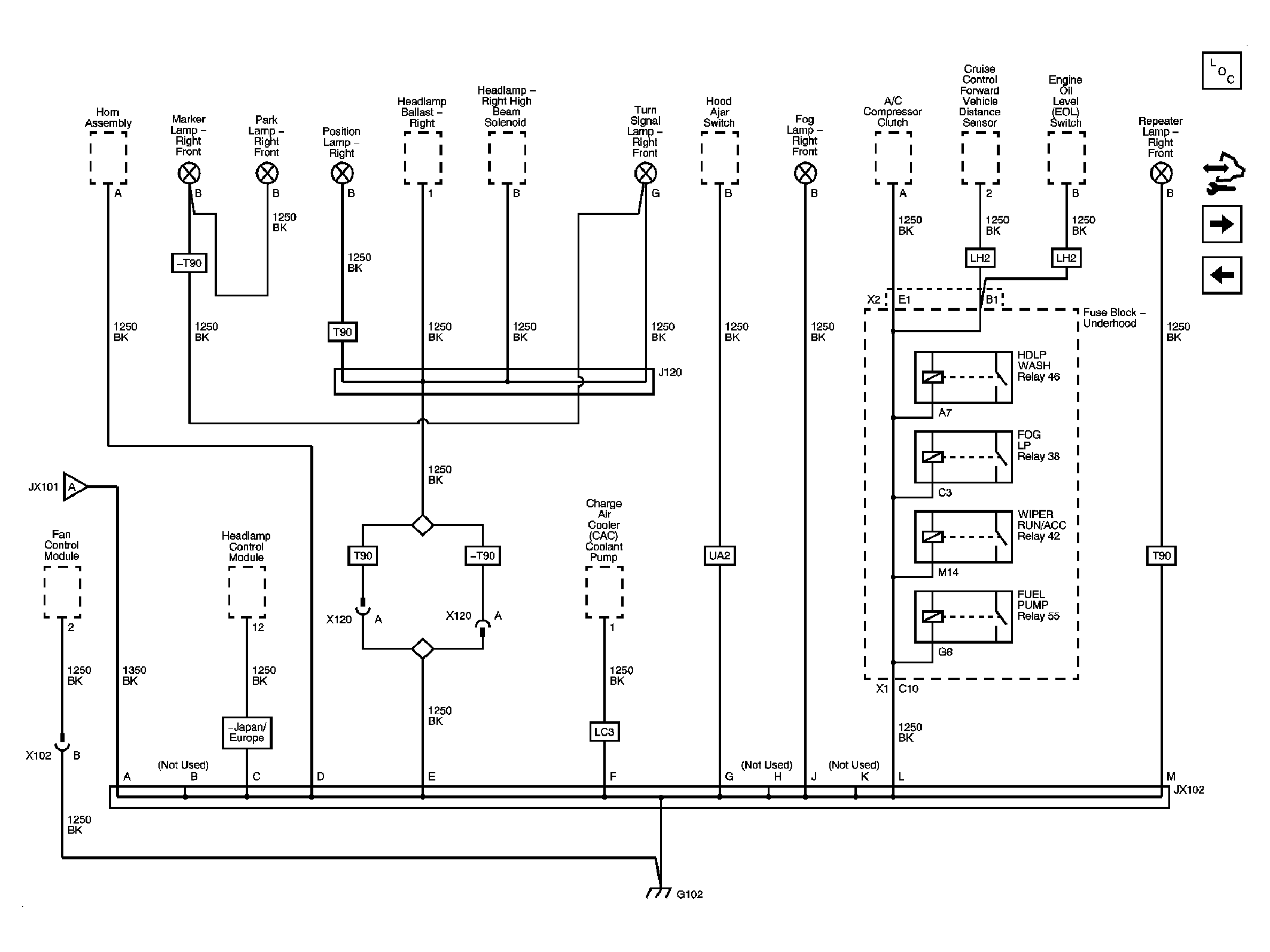

Fig 2: G102

GM2075561

Courtesy of GENERAL MOTORS CORP.

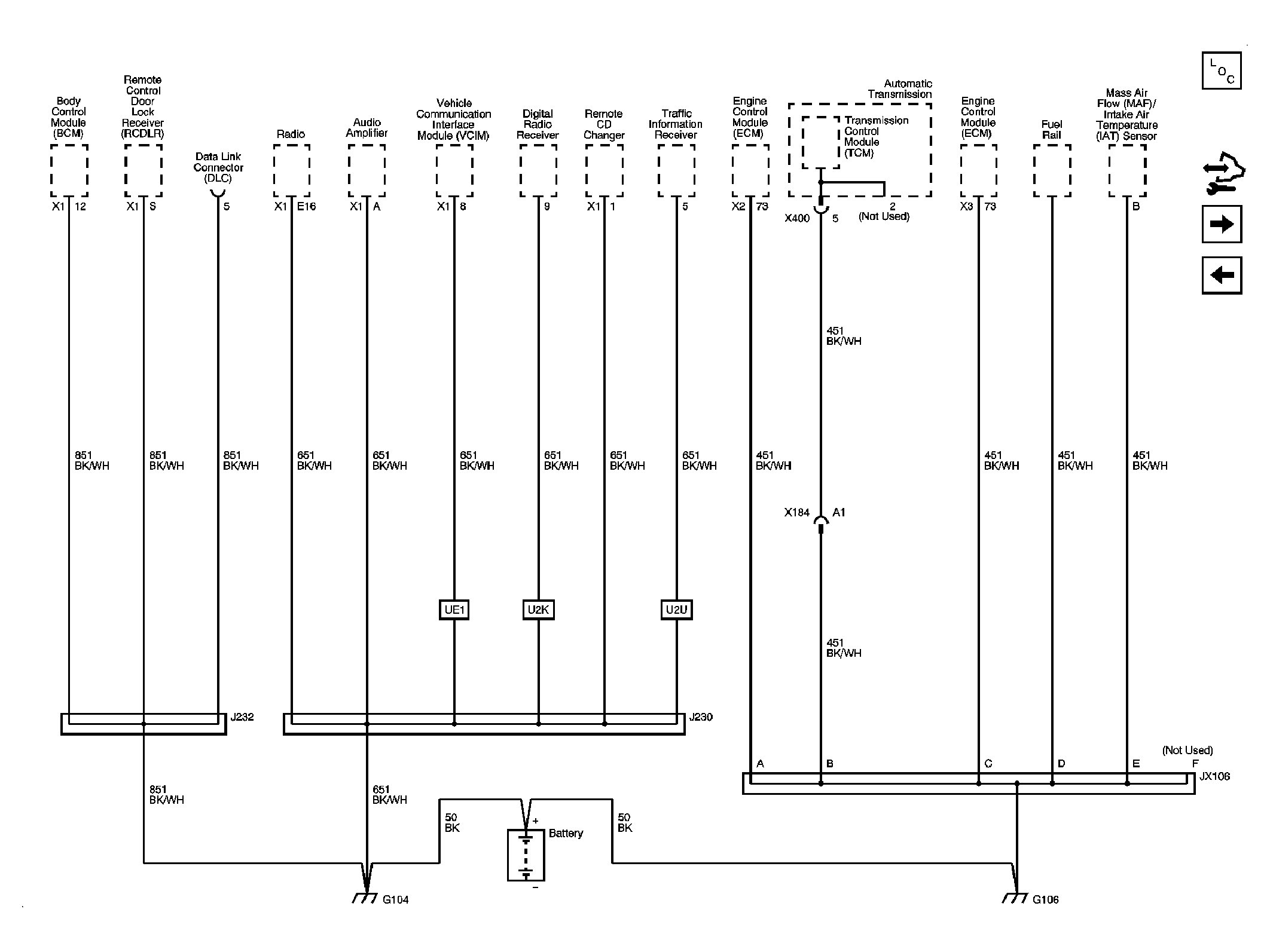

Fig 3: G104 & G106

GM2075563

Courtesy of GENERAL MOTORS CORP.

Fig 4: G105, G107, G109, G110, G111 & G112

GM2075572

Courtesy of GENERAL MOTORS CORP.

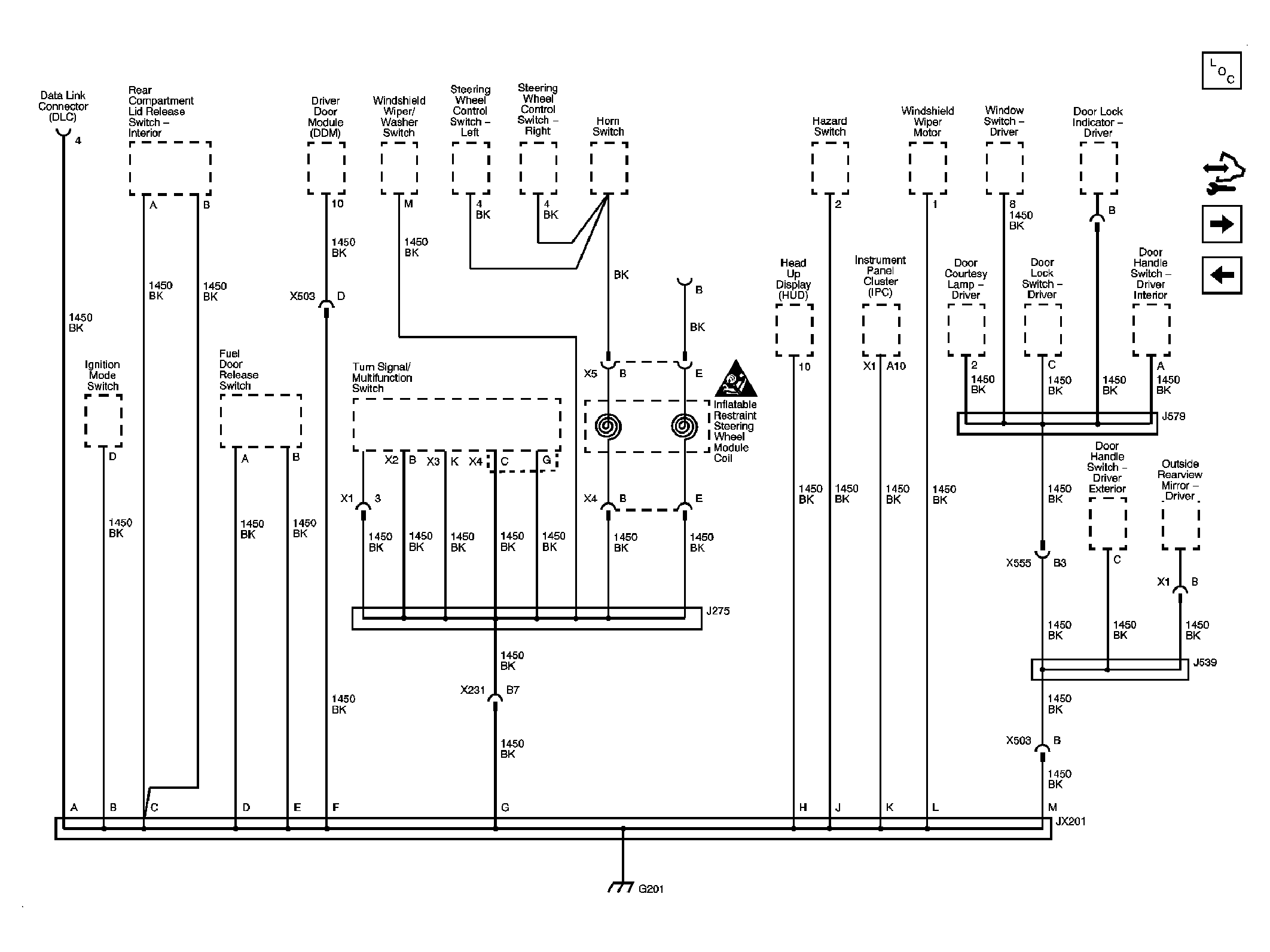

Fig 5: G201

GM2075575

Courtesy of GENERAL MOTORS CORP.

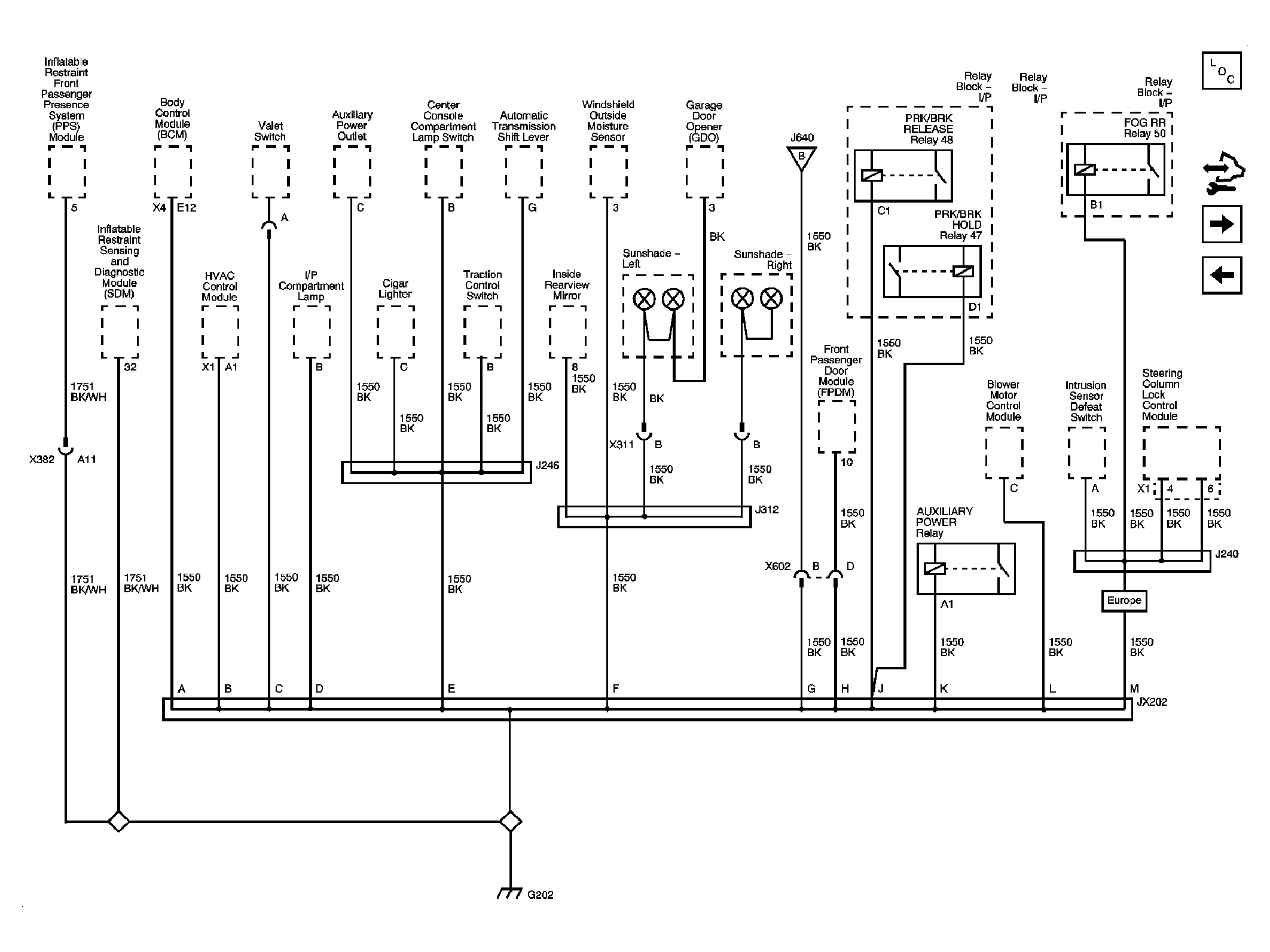

Fig 6: G202 (1 Of 2)

GM2075578

Courtesy of GENERAL MOTORS CORP.

Fig 7: G202 (2 Of 2)

GM2075581

Courtesy of GENERAL MOTORS CORP.

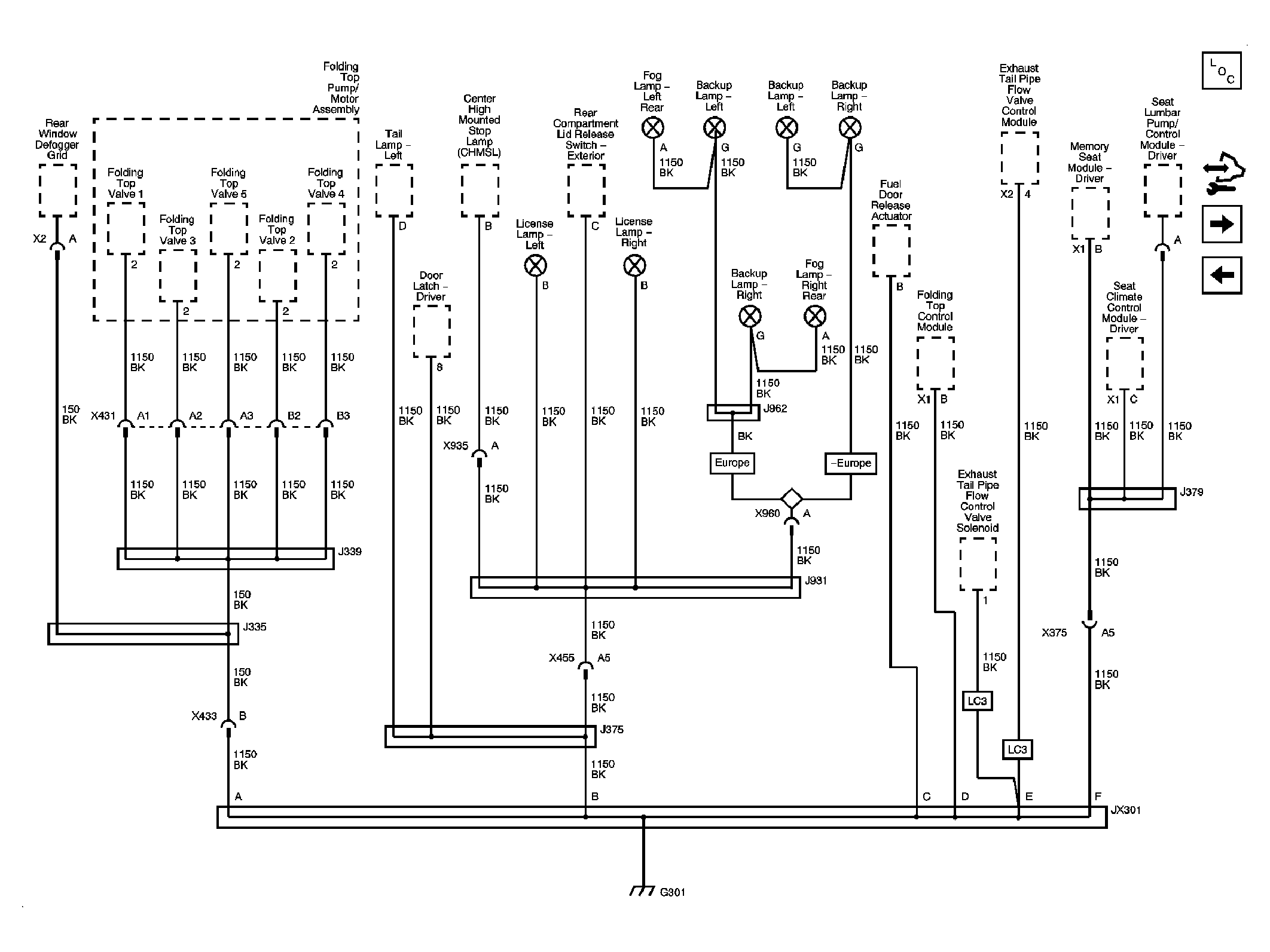

Fig 8: G301

GM2075584

Courtesy of GENERAL MOTORS CORP.

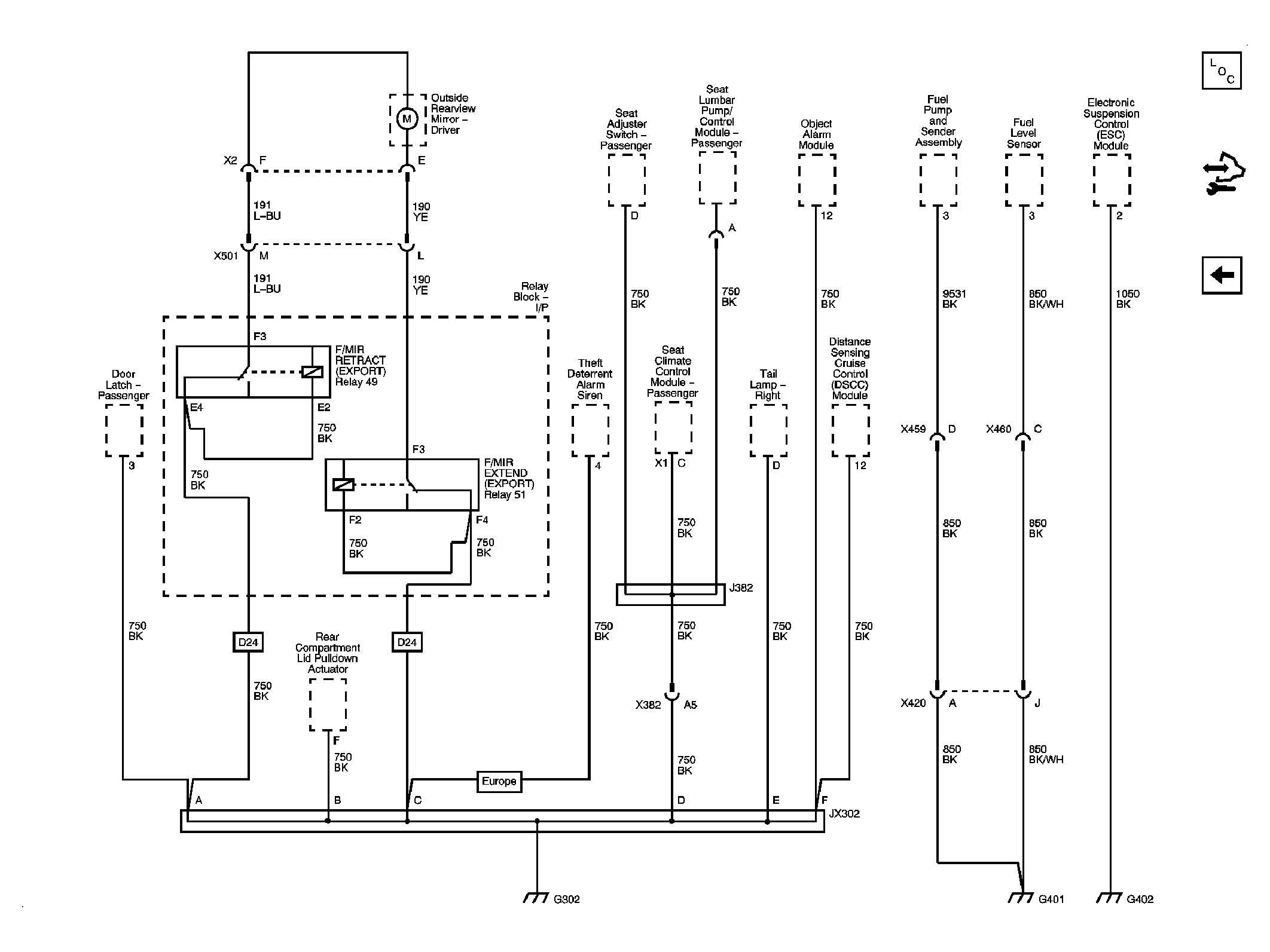

Fig 9: G302, G401 & G402

GM2075587

Courtesy of GENERAL MOTORS CORP.
