Instrument Cluster Schematics

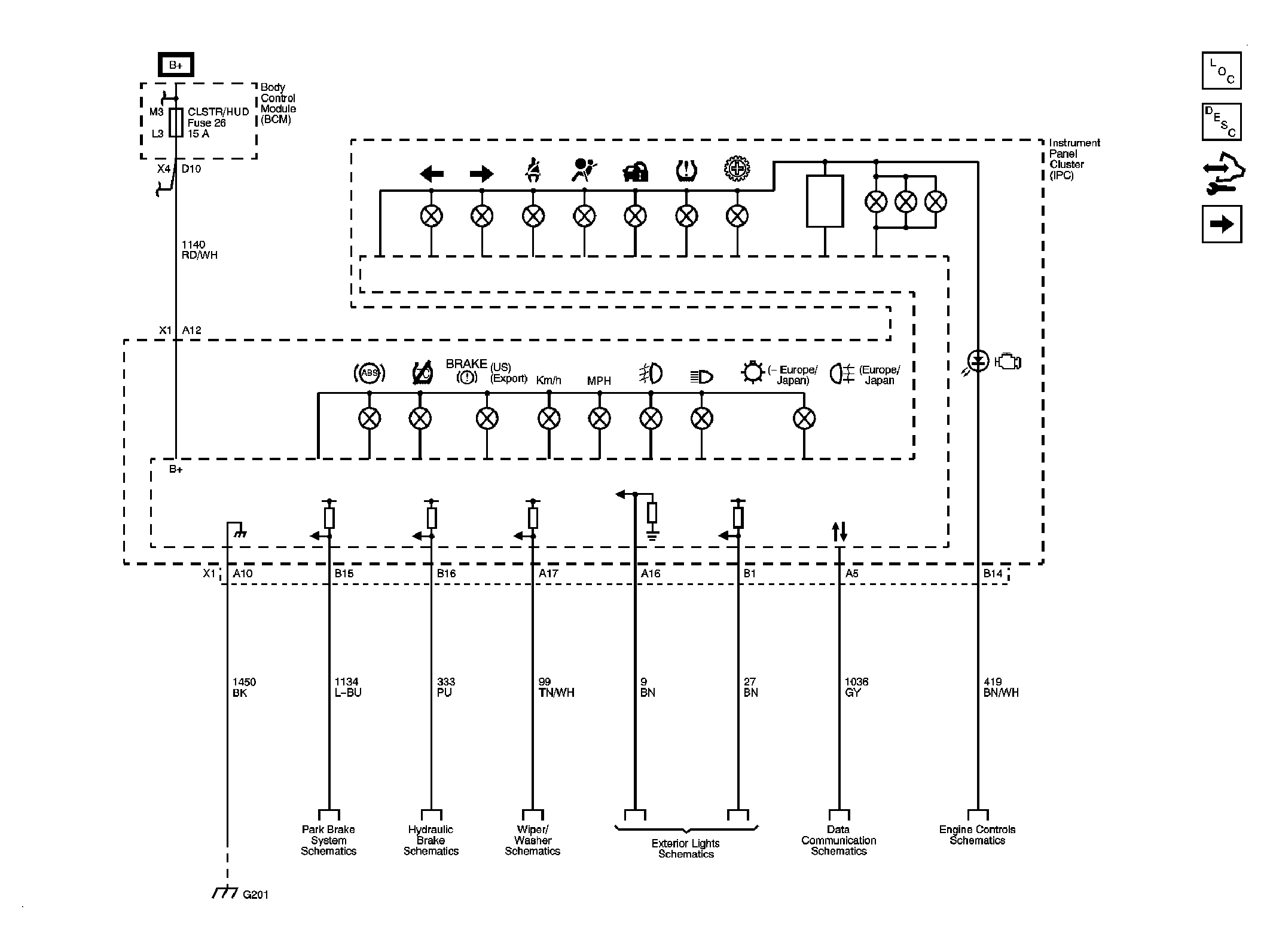

Fig 1: Power, Ground, & Indicators
Courtesy of GENERAL MOTORS CORP.

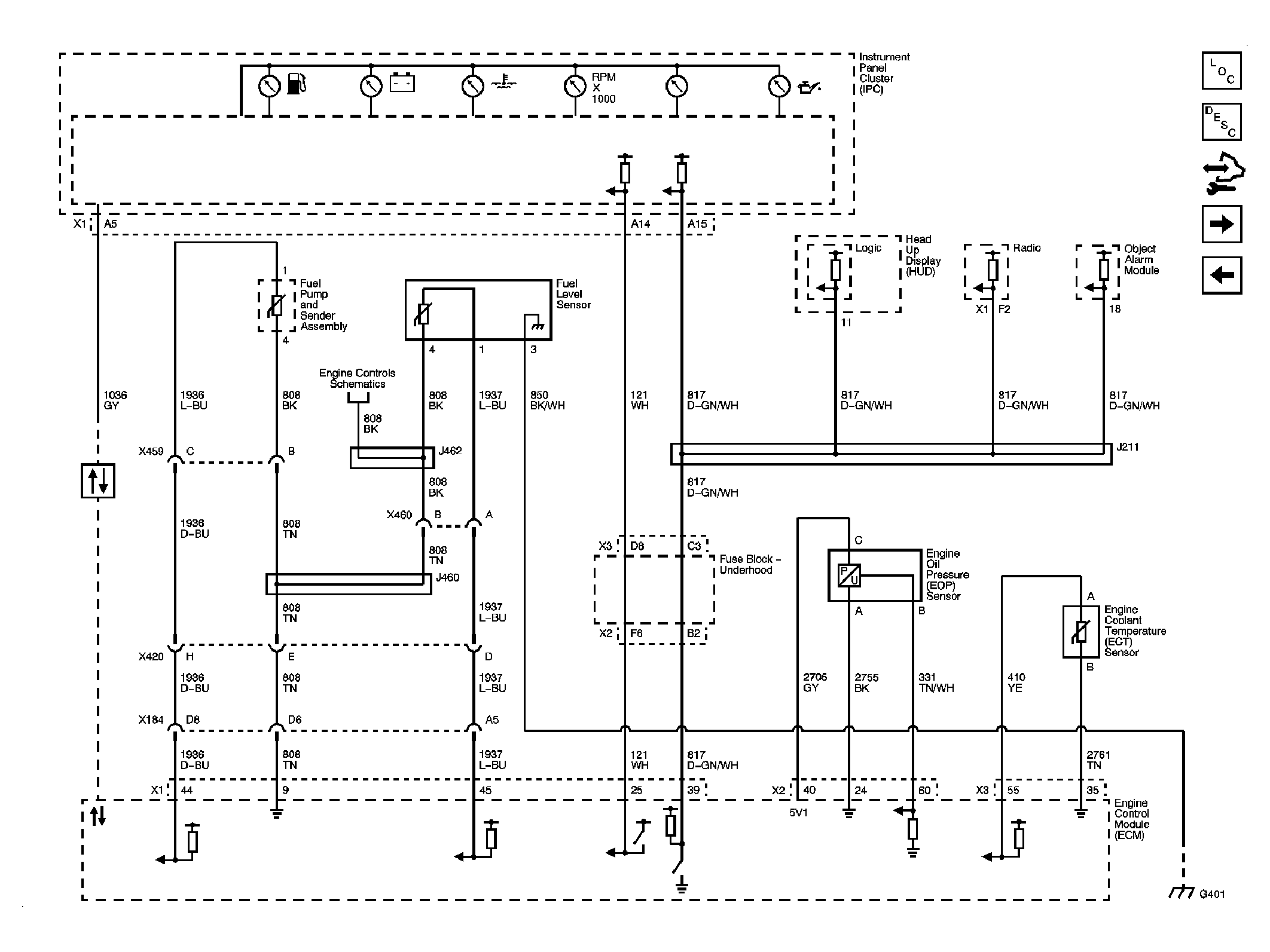

Fig 2: Gages
Courtesy of GENERAL MOTORS CORP.

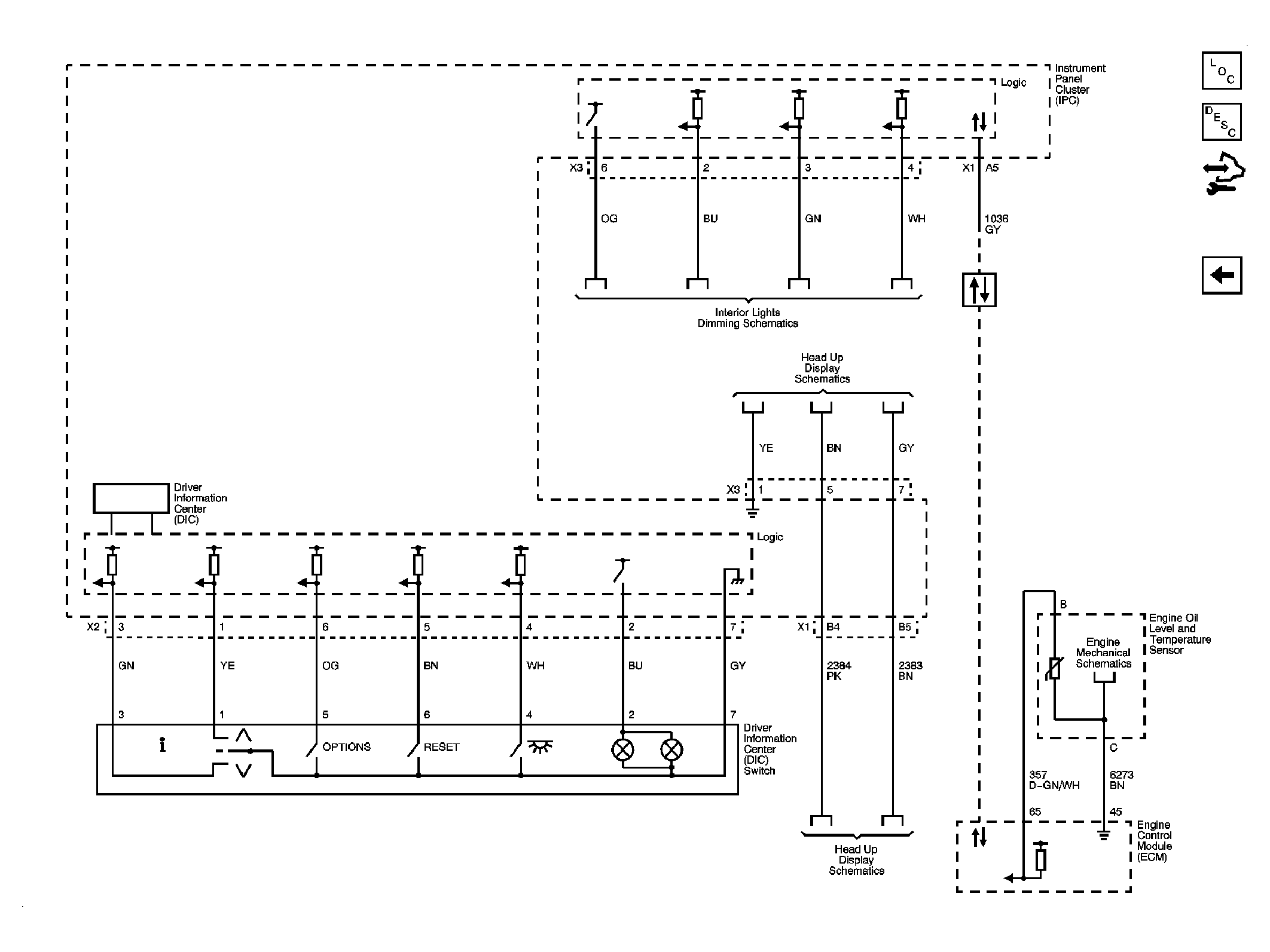

Fig 3: Messages
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
