25. Engine Front Cover Removal




Engine Front Cover Removal

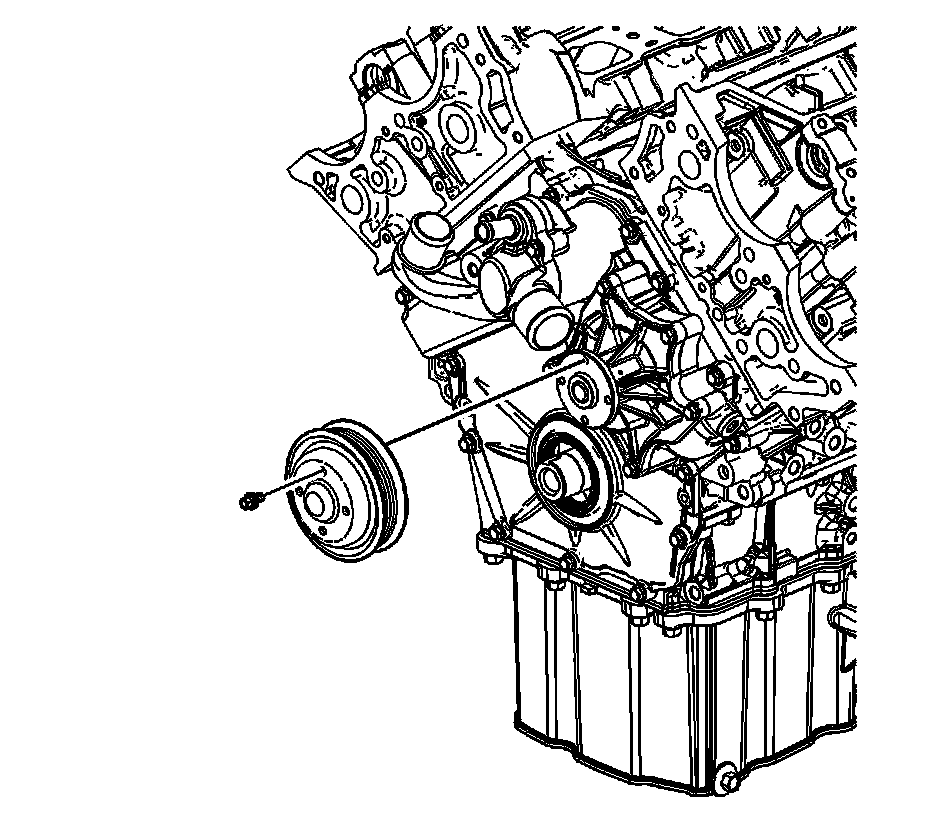

1. Remove the water pump pulley bolts.
2. Remove the water pump pulley.

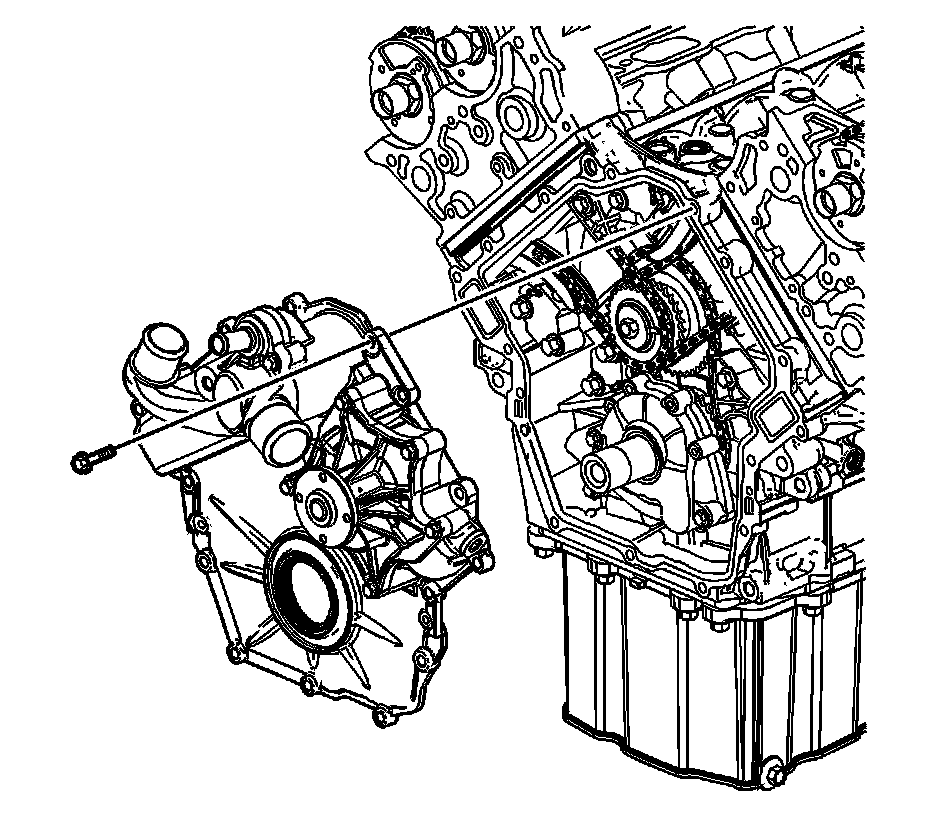

3. Remove the engine front cover bolts.
4. Remove the engine front cover.




5. Remove and discard the engine front cover gasket.




6. Remove the oil pump drive to crankshaft balancer friction washer.
