14. Crankshaft Balancer Removal

Crankshaft Balancer Removal

Tools Required
* EN 46326 Flywheel Holding Tool
* J 38416-2 Crankshaft Button
* J 41816 Crankshaft Balancer Remover




1. Install the EN 46326 .




2. Remove the crankshaft balancer bolt.




3. Place the J 38416-2 into the end of the crankshaft.

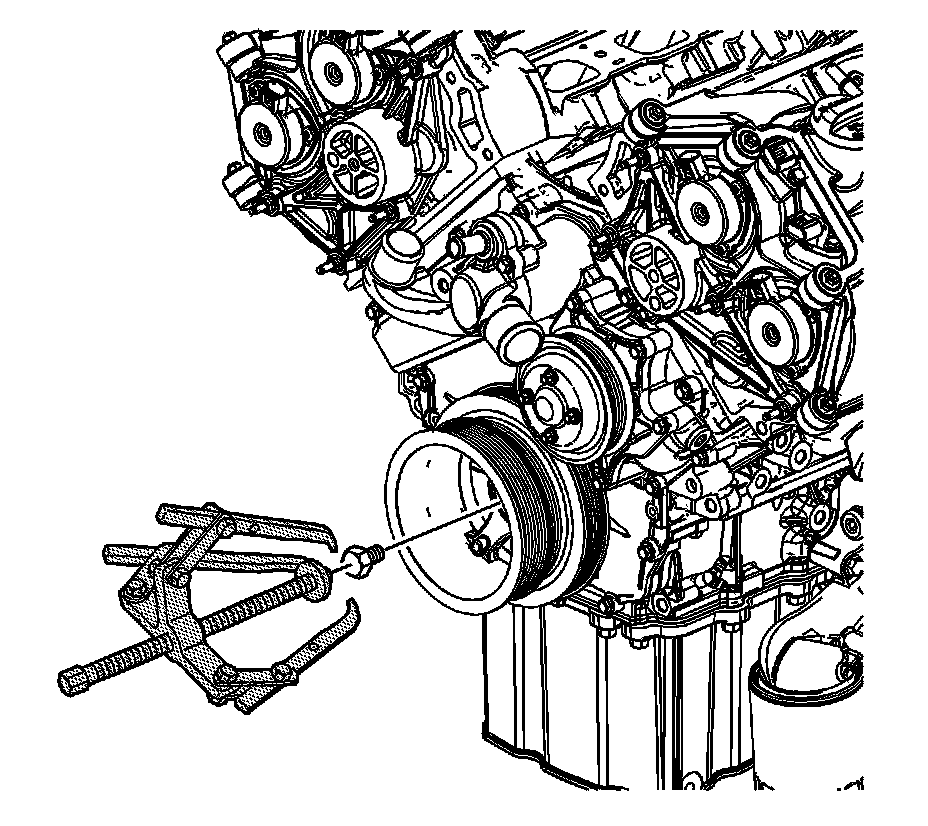

4. Install the J 41816 on the crankshaft balancer.




5. Remove the crankshaft balancer using the J 41816 .
