10. Air Conditioning (A/C) Compressor Removal




Air Conditioning (A/C) Compressor Removal

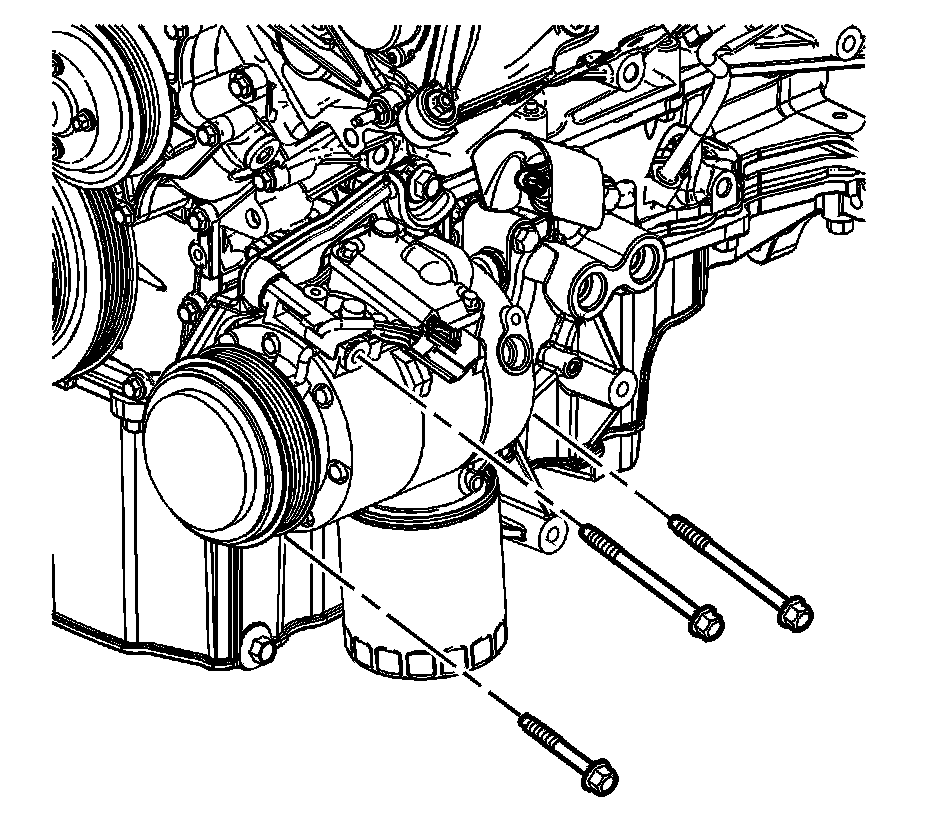

1. Remove the A/C compressor bolts.




2. Remove the A/C compressor.




3. Remove the A/C compressor bracket side bolts.




4. Remove the A/C compressor bracket front bolts.




5. Remove the A/C compressor bracket.
