Radiator Cooling Fan




Component Connector End Views

Engine Cooling Fan - Left (LC3 or LH2 with V03 or V92)

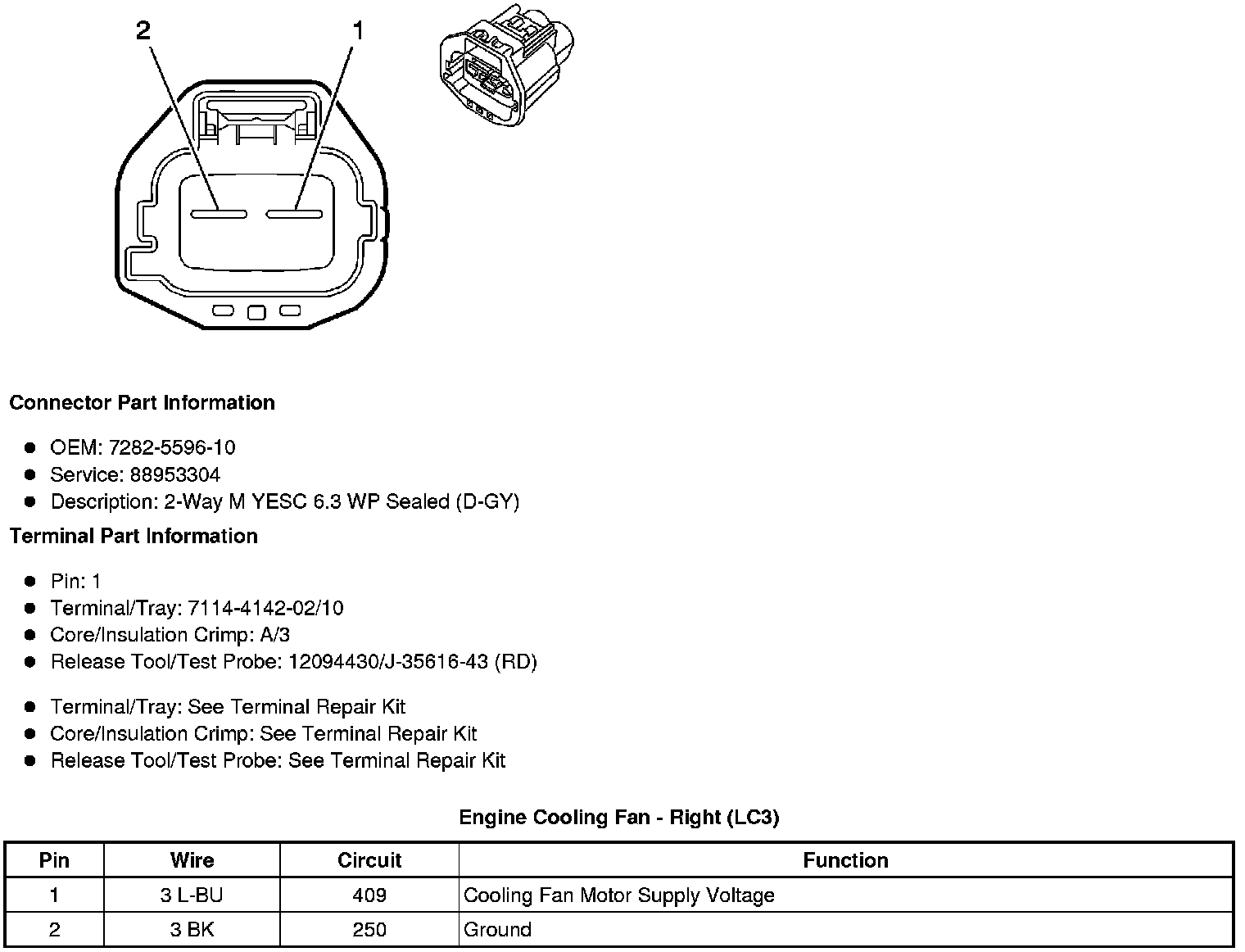

Engine Cooling Fan - Right (LC3)
