X140

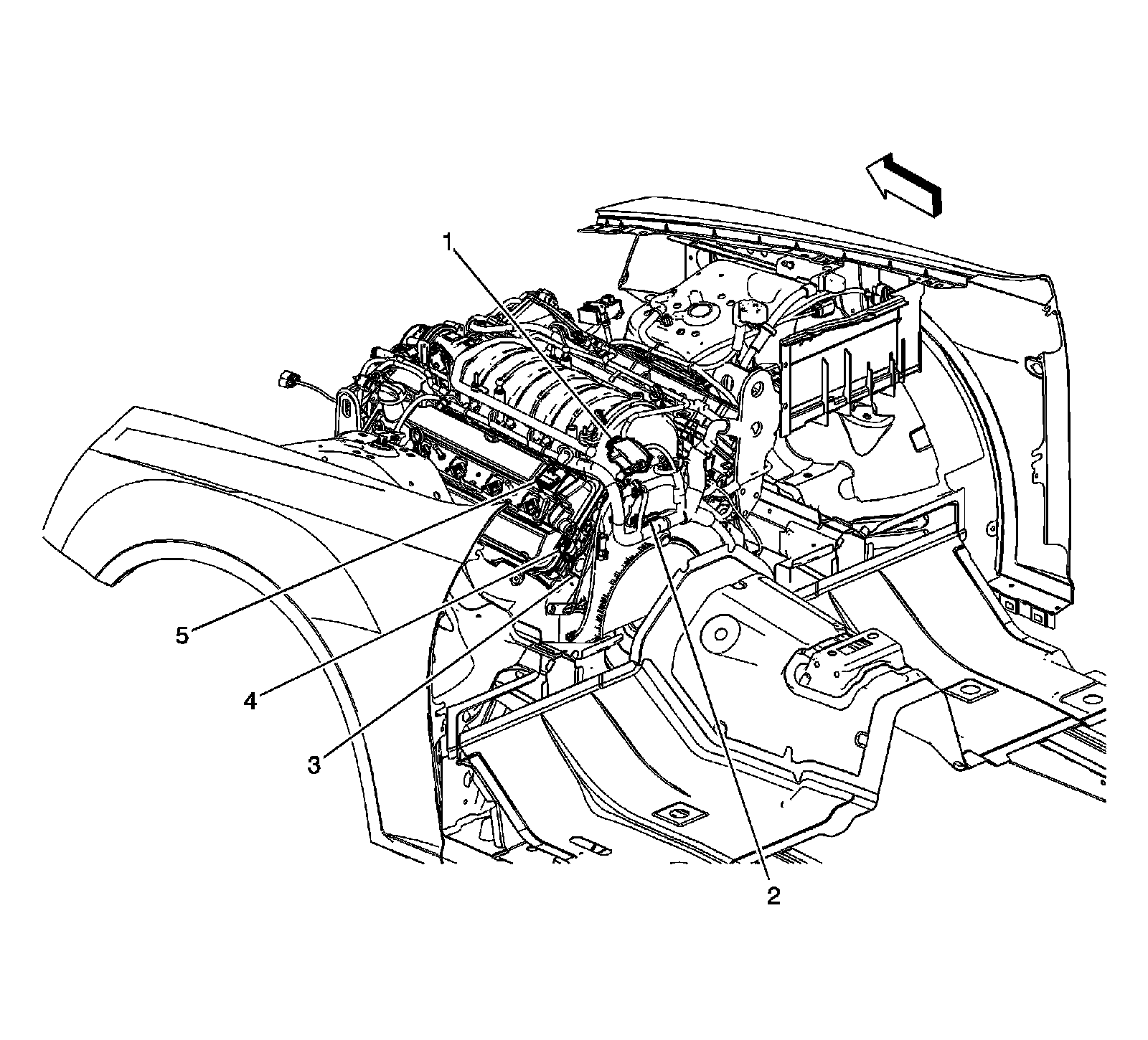

Harness Routing Views

Engine - Left Rear (LH2)




1 - X102
2 - X105
3 - Valve Cover Ground to Ground Strap
4 - Valve Cover Ground
5 - X140
