87. Intake Manifold Disassemble

Intake Manifold Disassemble





Important: Do not reuse the intake manifold-to-cylinder head sealing gaskets.

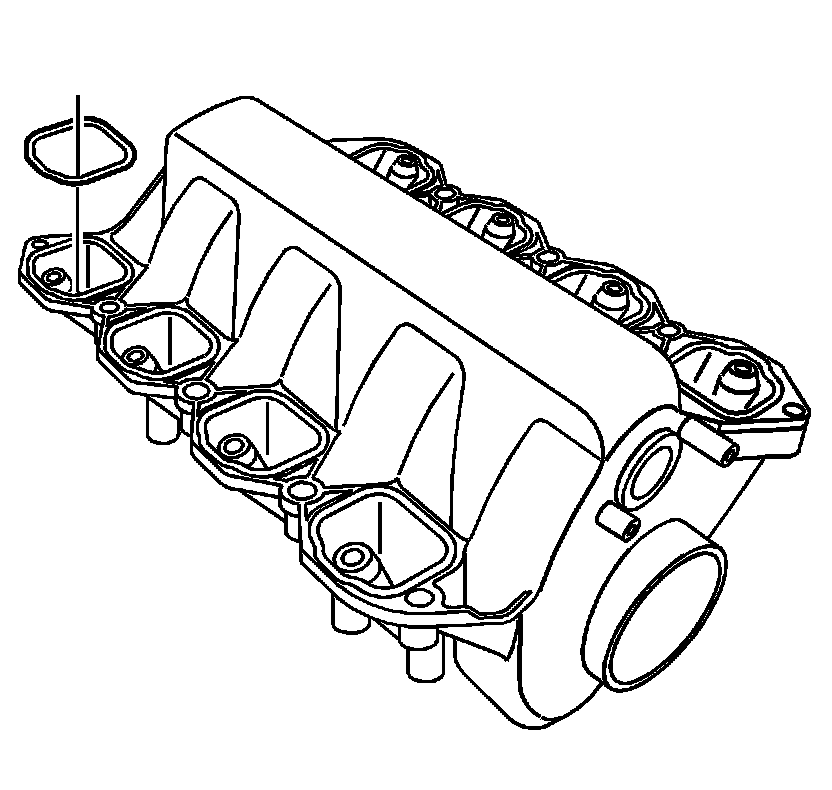

1. Remove and discard the intake manifold-to-cylinder head gaskets.

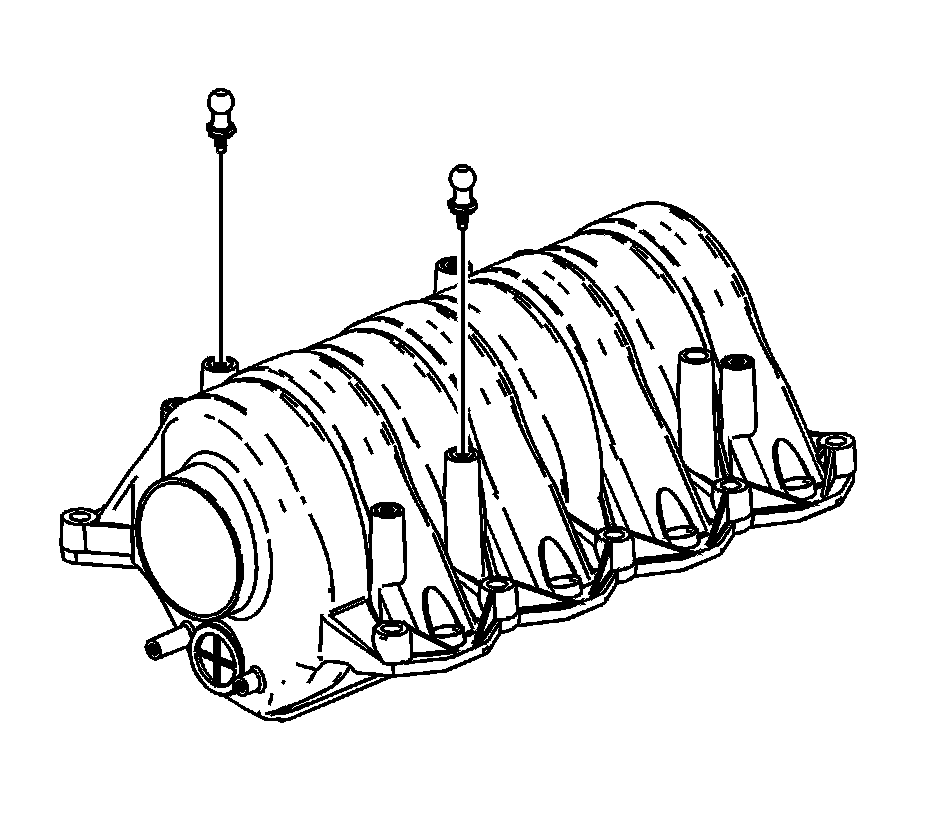

2. Remove the sight shield retainer ball studs.

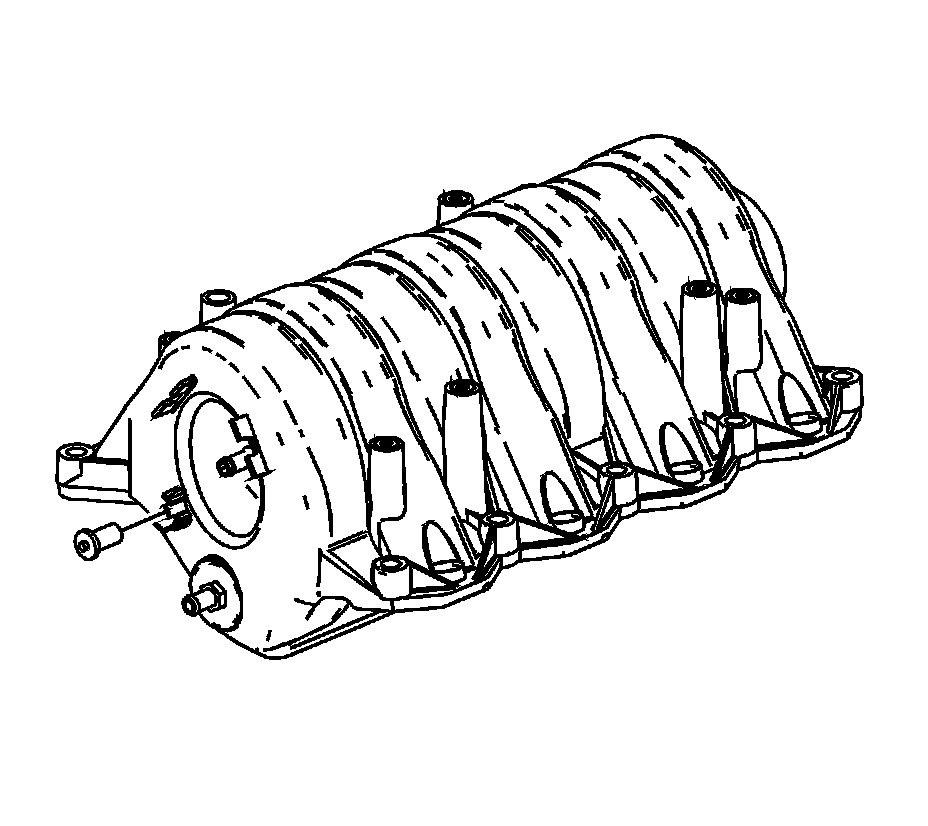

3. Remove the manifold vacuum source cap.

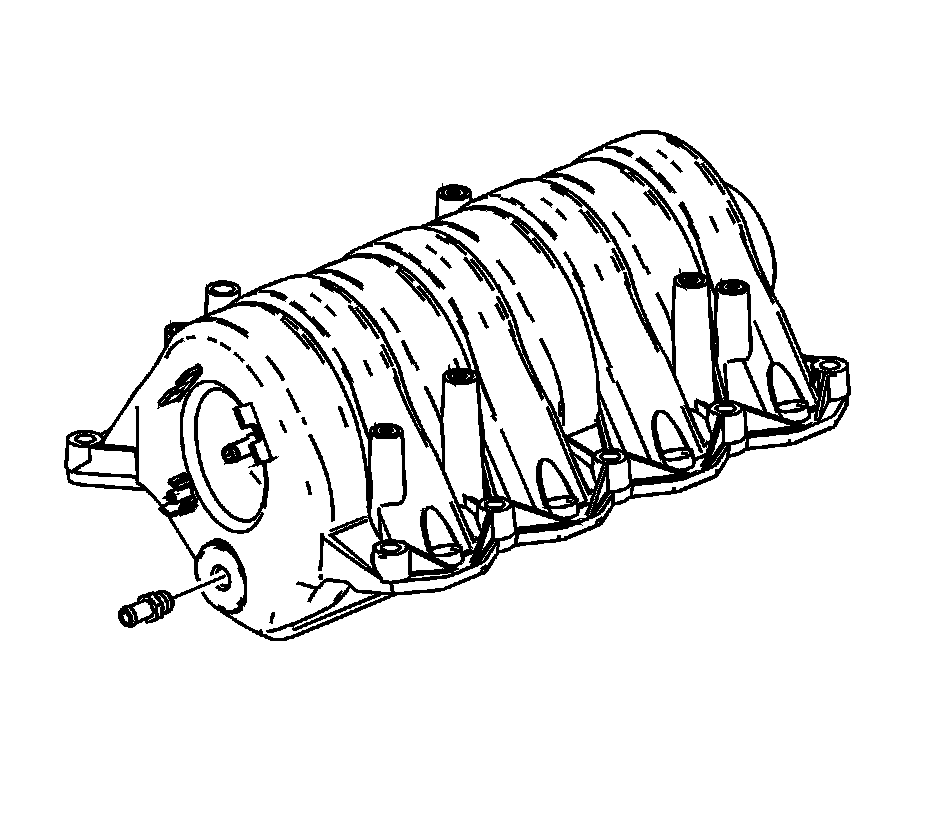

4. Remove the vacuum boost fitting.
