18. Ignition Coil Module Removal - Left Side




Ignition Coil Module Removal - Left Side

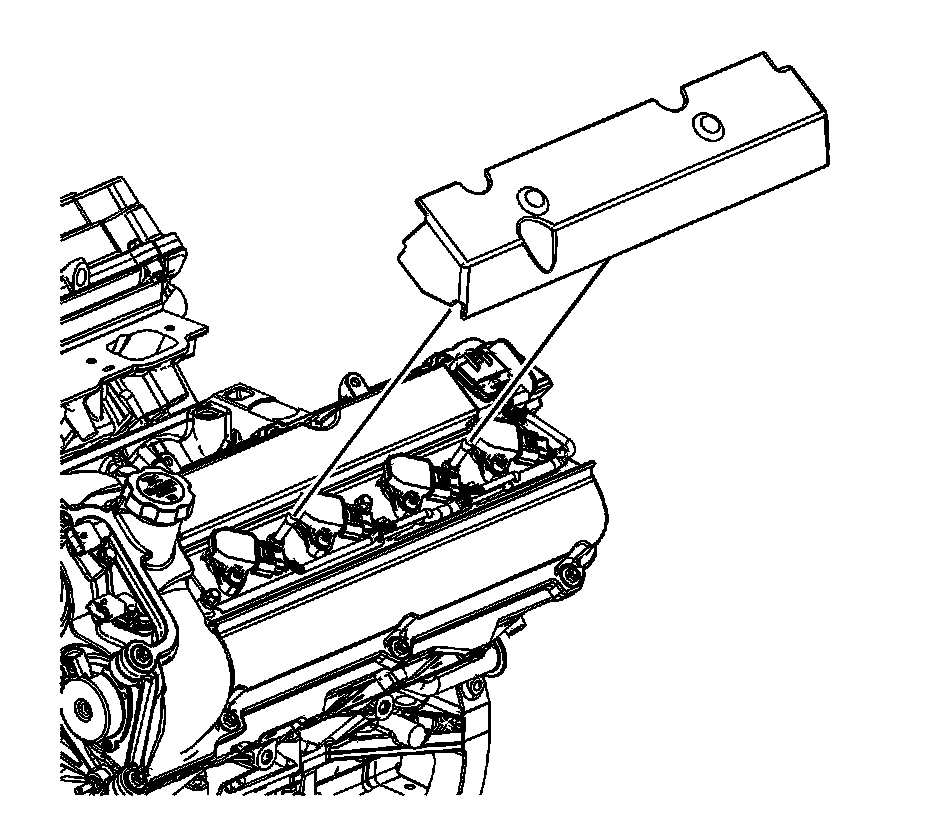

1. Remove the ignition coil assembly cover.

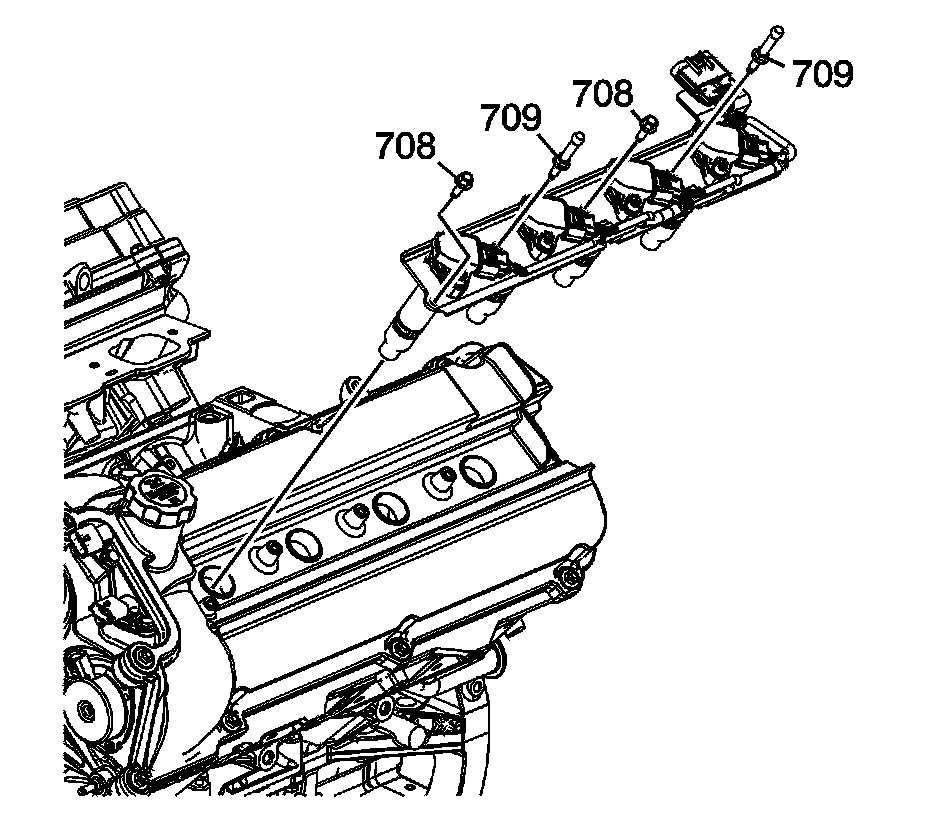

2. Remove the ignition coil assembly bolts (708) and ball studs (709).
3. Carefully, remove the ignition coil assembly.

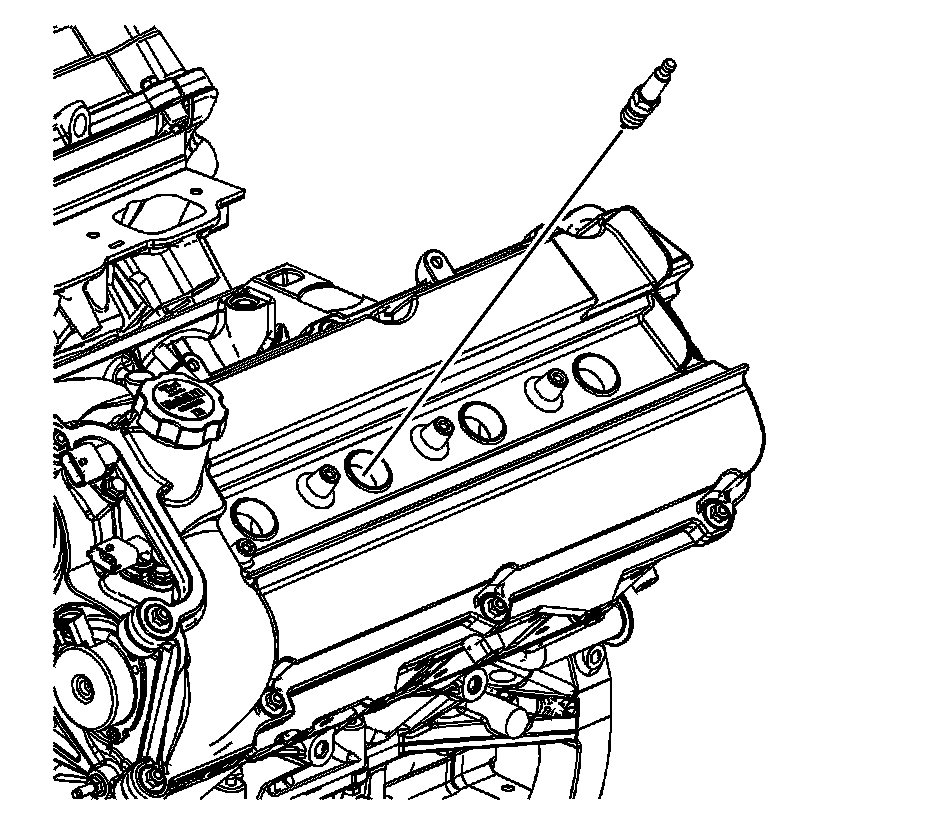

4. Remove the spark plugs.
