136. Drive Belt Idler Pulley Installation




Drive Belt Idler Pulley Installation

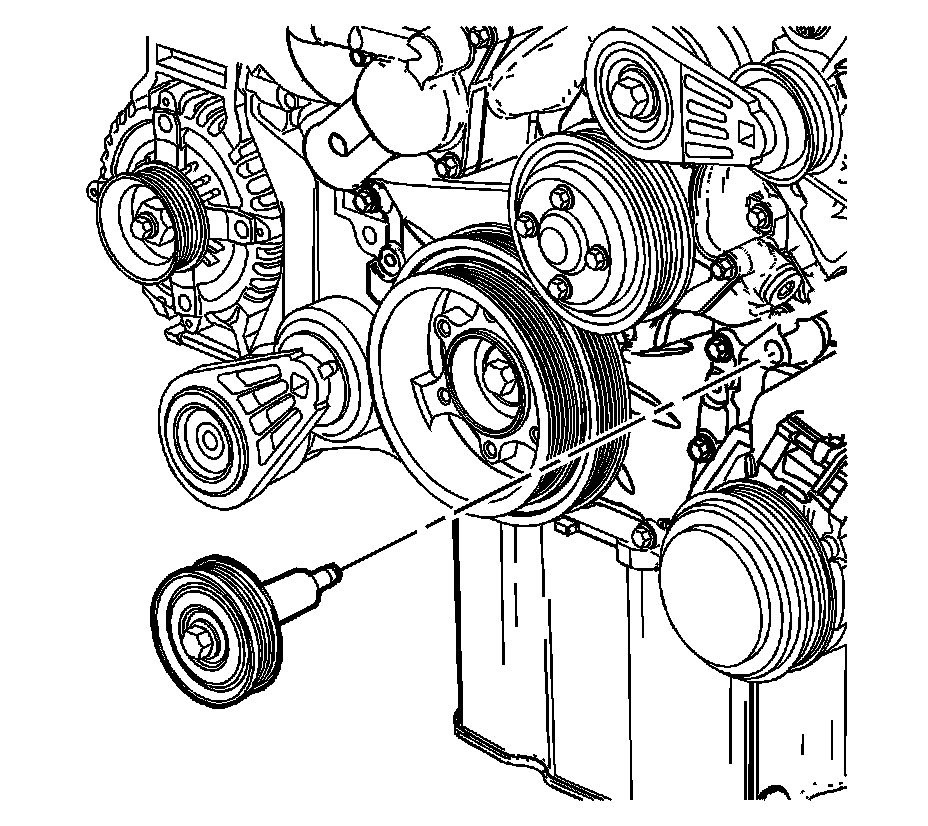

1. Place the drive belt idler pulley in position to the engine.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the drive belt idler pulley bolt and tighten to 50 Nm (37 lb ft).
