126. Oil Level Indicator and Tube Installation

Oil Level Indicator and Tube Installation

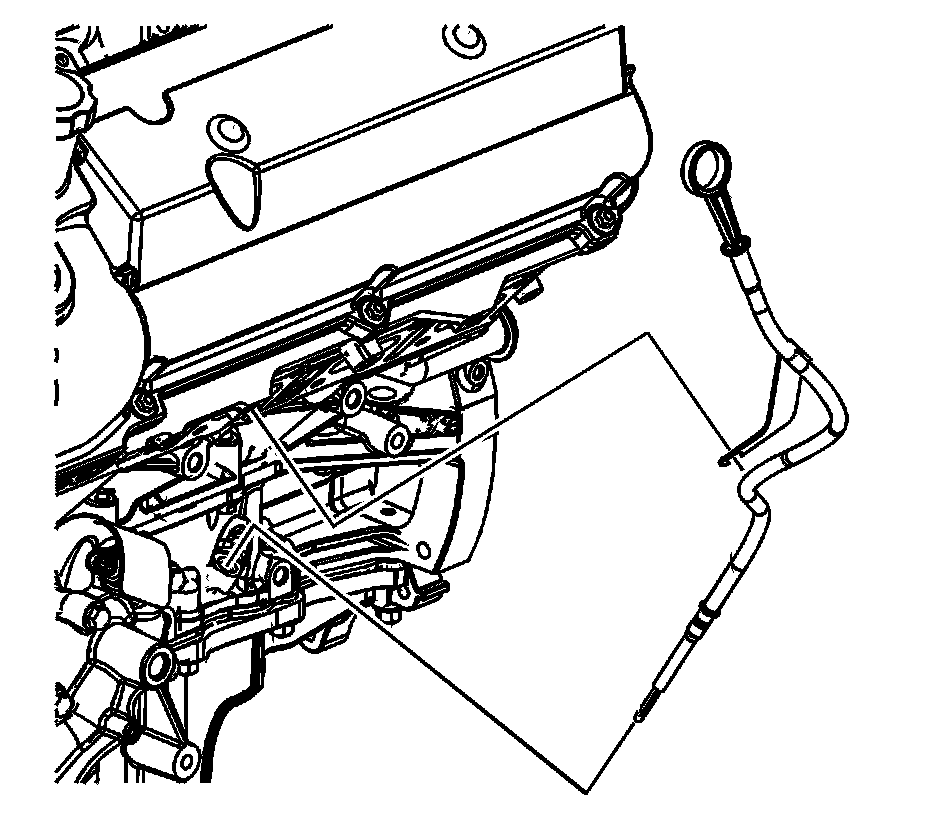

1. Install the NEW O-ring on the oil level indicator tube.




2. Install the oil level indicator tube.





Caution: Refer to Fastener Caution (Fastener Caution).

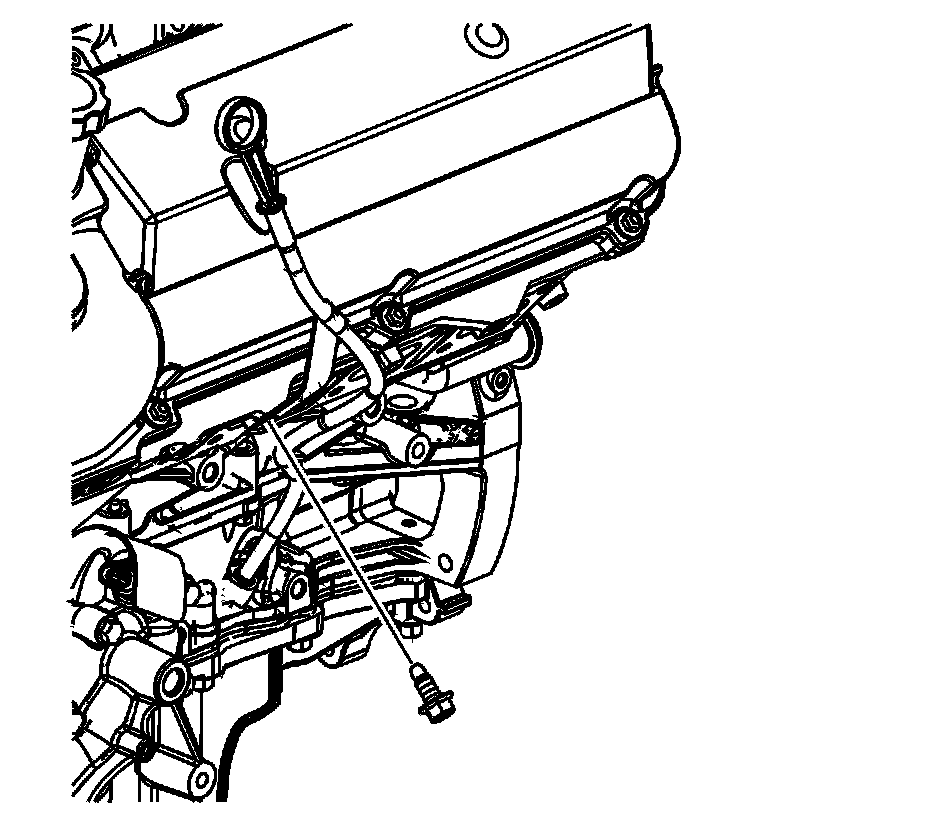

3. Install the oil level indicator tube nut and tighten to 10 Nm (89 lb in).
