121. Ignition Coil Module Installation - Right Side

Ignition Coil Module Installation - Right Side





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the right spark plugs and tighten to 15 Nm (11 lb ft).




2. Apply a small amount of dielectric grease GM P/N 12345579, (Canadian P/N 1974984), to each spark plug boot (1) of the ignition coil assembly.

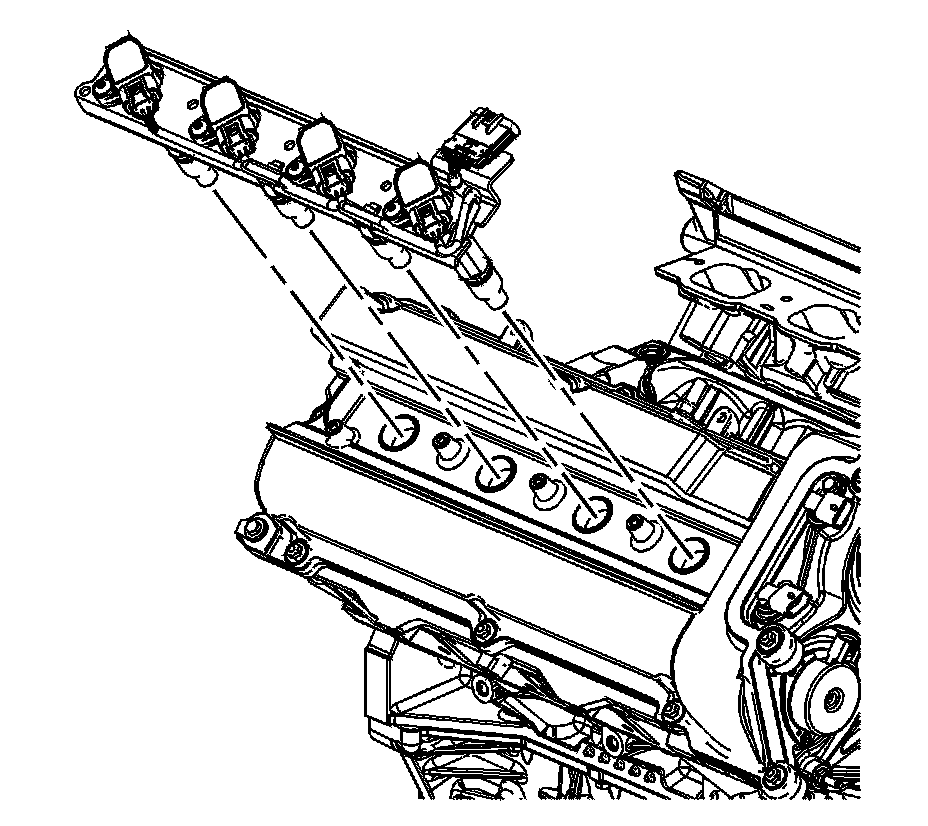

3. Carefully, install the right ignition coil assembly.

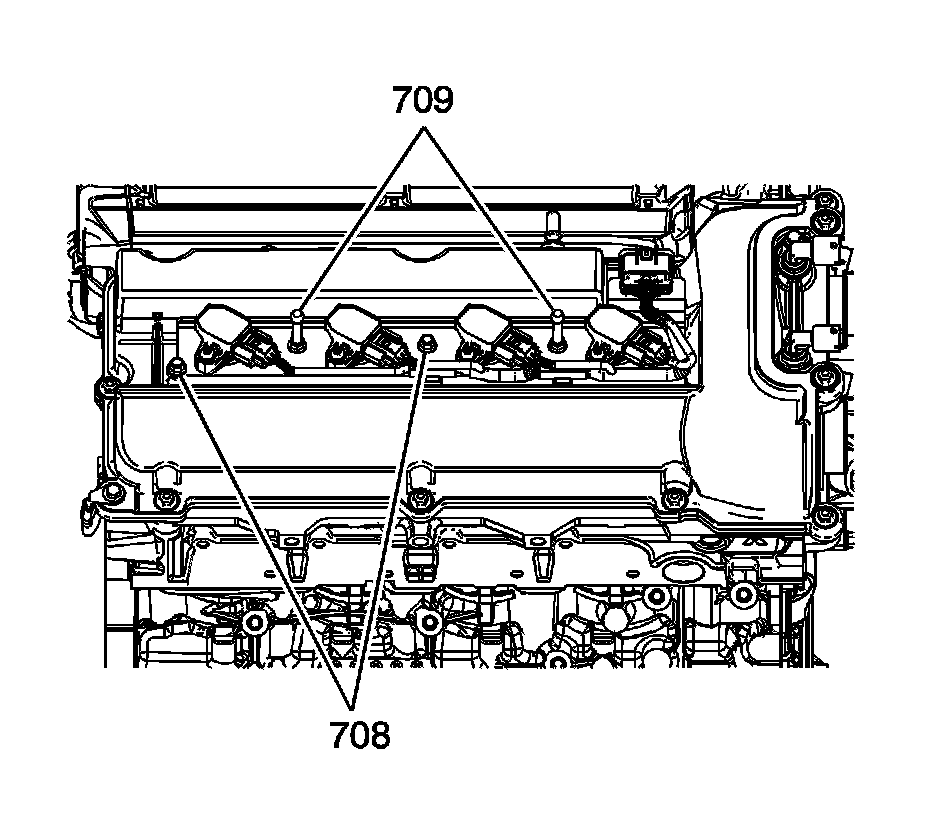

4. Install the ignition coil assembly bolts (708) and ball studs (709).
Tighten the right ignition cassette bolts and ball studs to 10 Nm (89 lb in).




5. Install the right ignition coil assembly cover.
