100. Oil Pump Suction Pipe and Screen Assembly Installation

Oil Pump Suction Pipe and Screen Assembly Installation




1. Install NEW oil pump pipe gasket on oil pump pipe.





Caution: Refer to Fastener Caution (Fastener Caution).

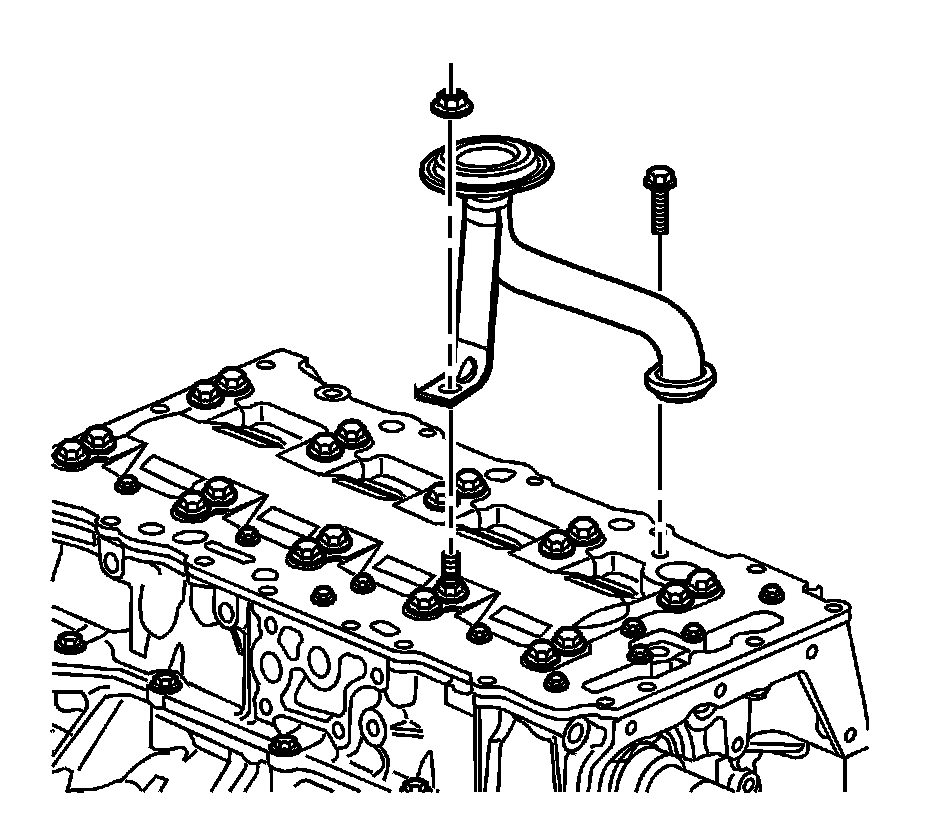

2. Install the oil pump pick-up retaining bolt and nut.

* Tighten the oil pump pick-up tube nut to 24 Nm (18 lb ft).
* Tighten the oil pump pick-up tube bolt to 10 Nm (89 lb in).
