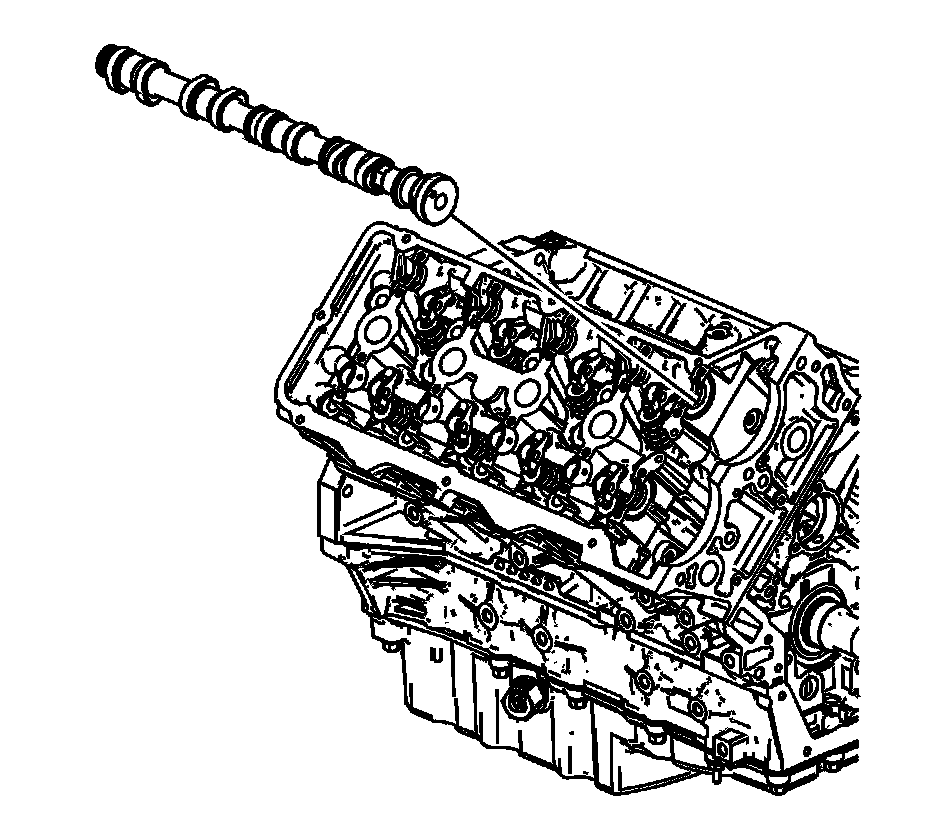

Camshaft Replacement - Right Side

Camshaft Replacement - Right Side

Removal Procedure




1. Remove the right intake camshaft actuator (4). Refer to Camshaft Position Actuator Replacement - Bank 1 (Right Side) Intake (Camshaft Position Actuator Replacement - Bank 1 (Right Side) Intake).
2. Remove the right exhaust camshaft actuator (10). Refer to Camshaft Position Actuator Replacement - Bank 1 (Right Side) Exhaust (Camshaft Position Actuator Replacement - Bank 1 (Right Side) Exhaust).




3. Remove the right intake camshaft. Refer to Intake Camshaft Removal - Right Side (Overhaul).




4. Remove the right exhaust camshaft. Refer to Exhaust Camshaft Removal - Right Side (Overhaul).
5. Clean and inspect the camshafts. Refer to Camshaft Cleaning and Inspection. Overhaul

Installation Procedure




1. Install the right exhaust camshaft. Refer to Exhaust Camshaft Installation - Right Side (Overhaul).




2. Install the right intake camshaft. Refer to Intake Camshaft Installation - Right Side (Overhaul).




3. Install the right exhaust camshaft actuator (10). Refer to Camshaft Position Actuator Replacement - Bank 1 (Right Side) Exhaust (Camshaft Position Actuator Replacement - Bank 1 (Right Side) Exhaust).
4. Install the right intake camshaft actuator (4). Refer to Camshaft Position Actuator Replacement - Bank 1 (Right Side) Intake (Camshaft Position Actuator Replacement - Bank 1 (Right Side) Intake).
