Camshaft Replacement - Left Side

Camshaft Replacement - Left Side

Removal Procedure




1. Remove the left intake camshaft actuator (6). Refer to Camshaft Position Actuator Replacement - Bank 2 (Left Side) Intake (Camshaft Position Actuator Replacement - Bank 2 (Left Side) Intake).
2. Remove the left exhaust camshaft actuator (9). Refer to Camshaft Position Actuator Replacement - Bank 2 (Left Side) Exhaust (Camshaft Position Actuator Replacement - Bank 2 (Left Side) Exhaust).

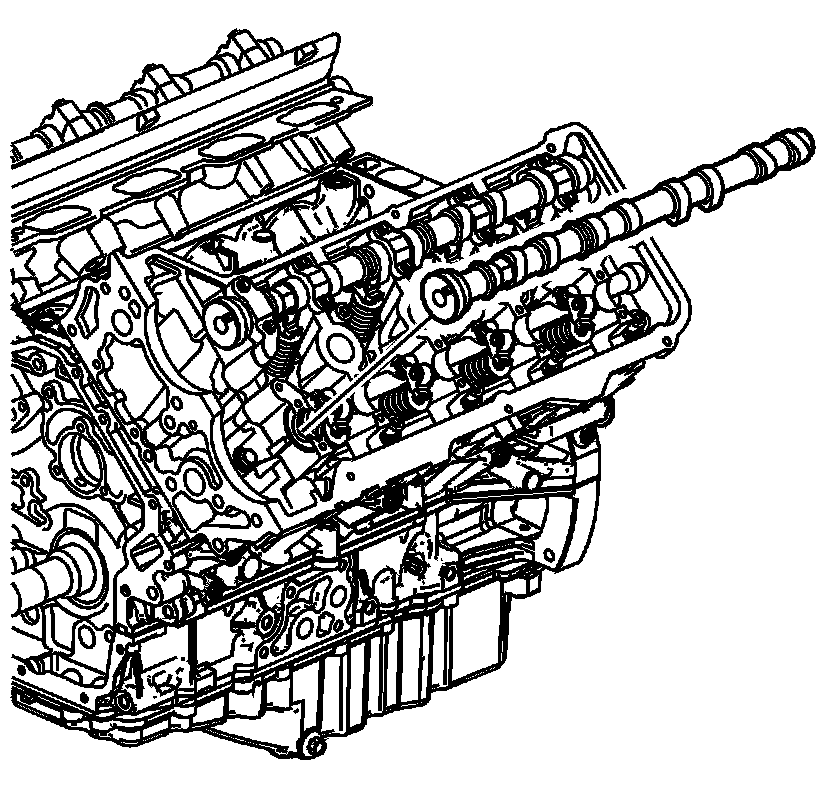

3. Remove the left intake camshaft. Refer to Intake Camshaft Removal - Left Side (Overhaul).

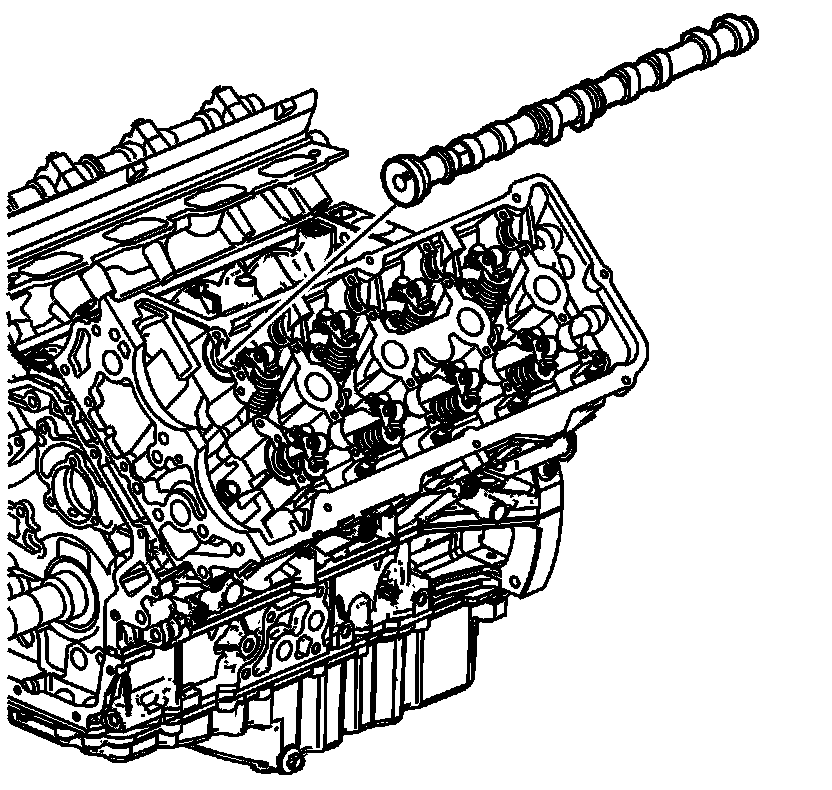

4. Remove the left exhaust camshaft. Refer to Exhaust Camshaft Removal - Left Side (Overhaul).
5. Clean and inspect the camshafts. Refer to Camshaft Cleaning and Inspection. 61. Camshaft Cleaning and Inspection

Installation Procedure




1. Install the left exhaust camshaft. Refer to Exhaust Camshaft Installation - Left Side (Overhaul).




2. Install the left intake camshaft. Refer to Intake Camshaft Installation - Left Side (Overhaul).




3. Install the left exhaust camshaft actuator (9). Refer to Camshaft Position Actuator Replacement - Bank 2 (Left Side) Exhaust (Camshaft Position Actuator Replacement - Bank 2 (Left Side) Exhaust).
4. Install the left intake camshaft actuator (6). Refer to Camshaft Position Actuator Replacement - Bank 2 (Left Side) Intake (Camshaft Position Actuator Replacement - Bank 2 (Left Side) Intake).
