Radiator Cooling Fan: Diagrams




Component Connector End Views

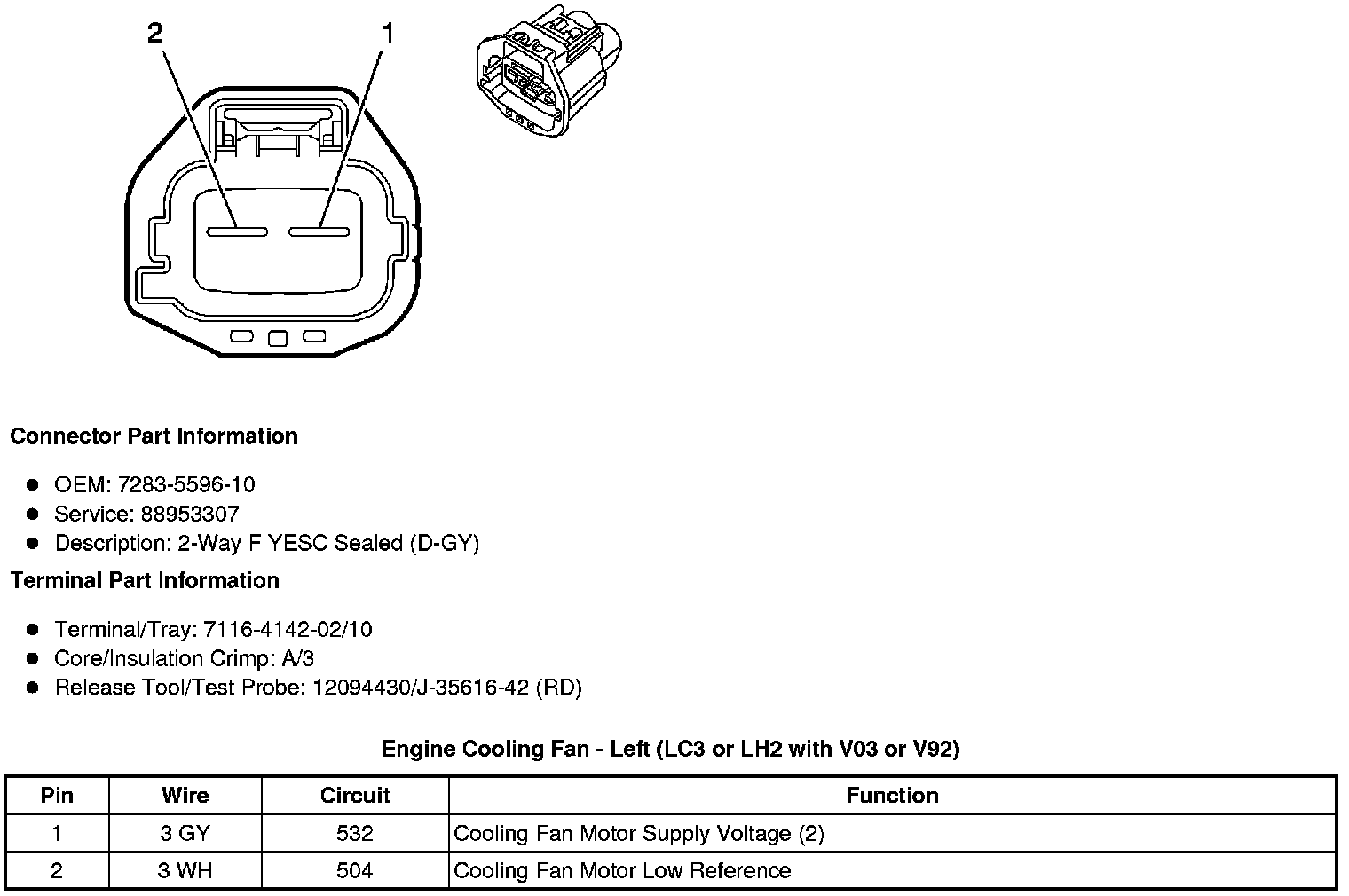

Engine Cooling Fan - Left (LC3 or LH2 with V03 or V92)

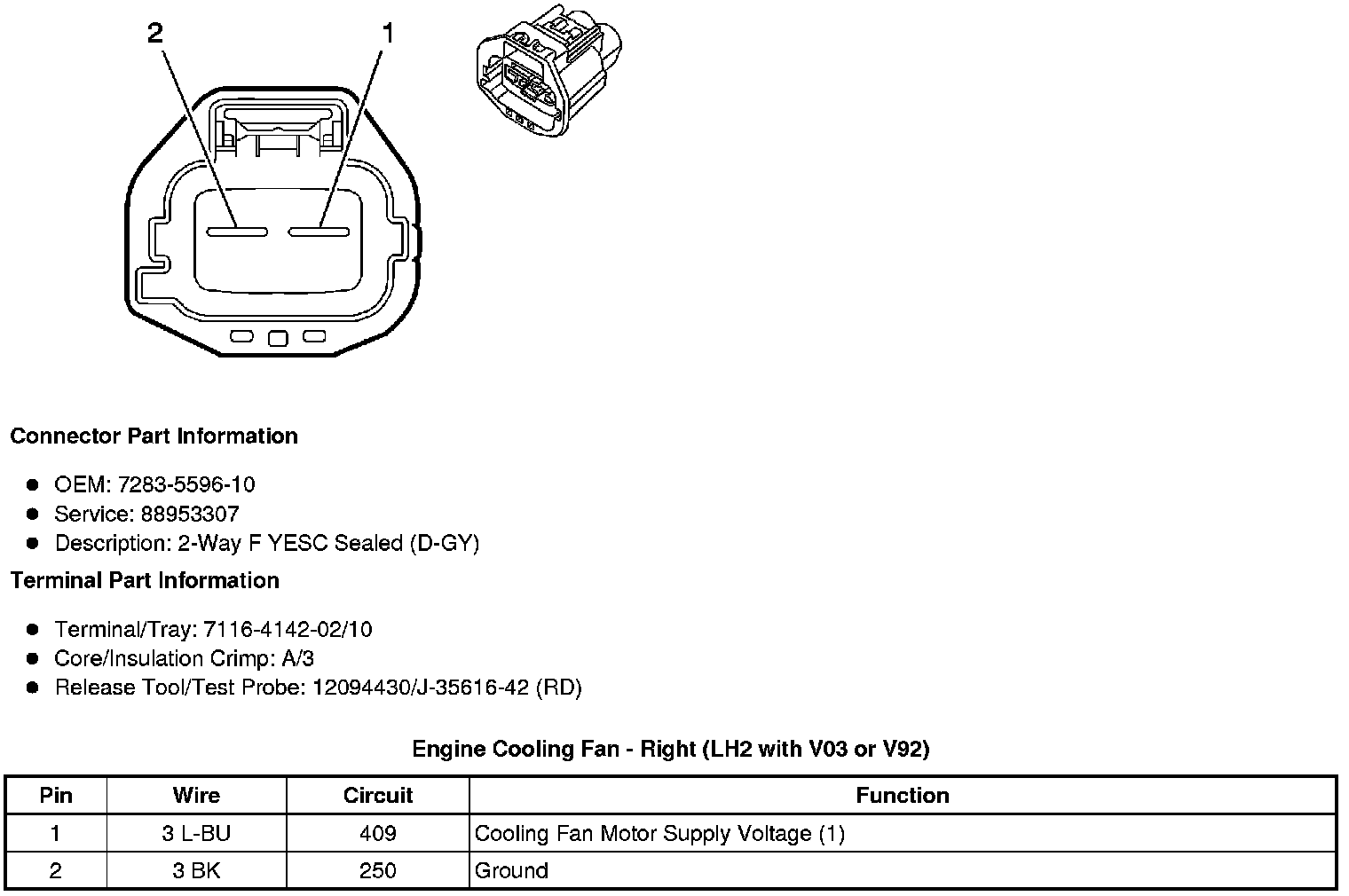

Engine Cooling Fan - Right (LH2 with V03 or V92))






Engine Cooling Fan (LTT or LH2 without V03 or V92)
