Transmission Pan Torque & Sequence

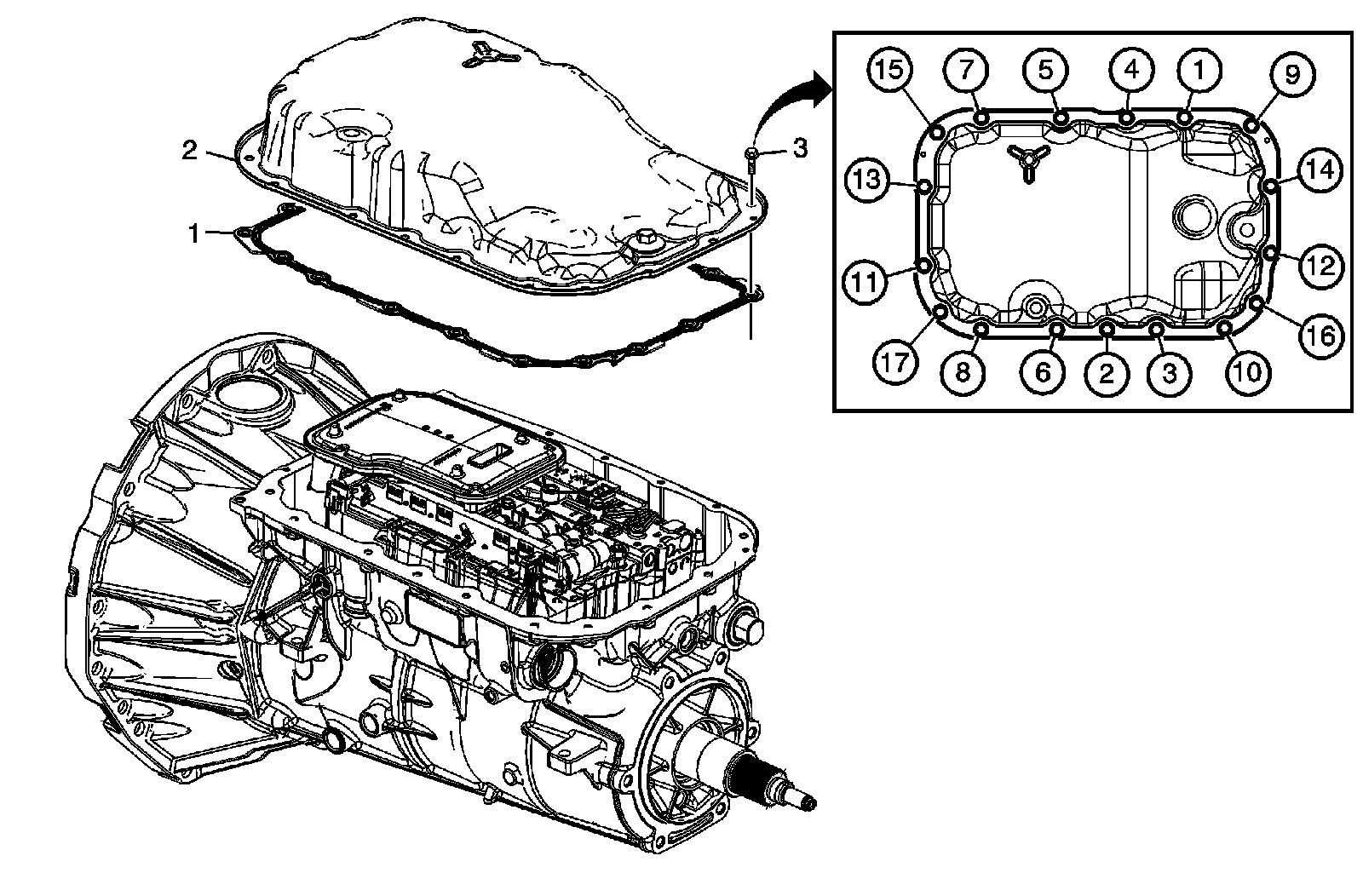

Transmission Fluid Pan Installation (6L50)

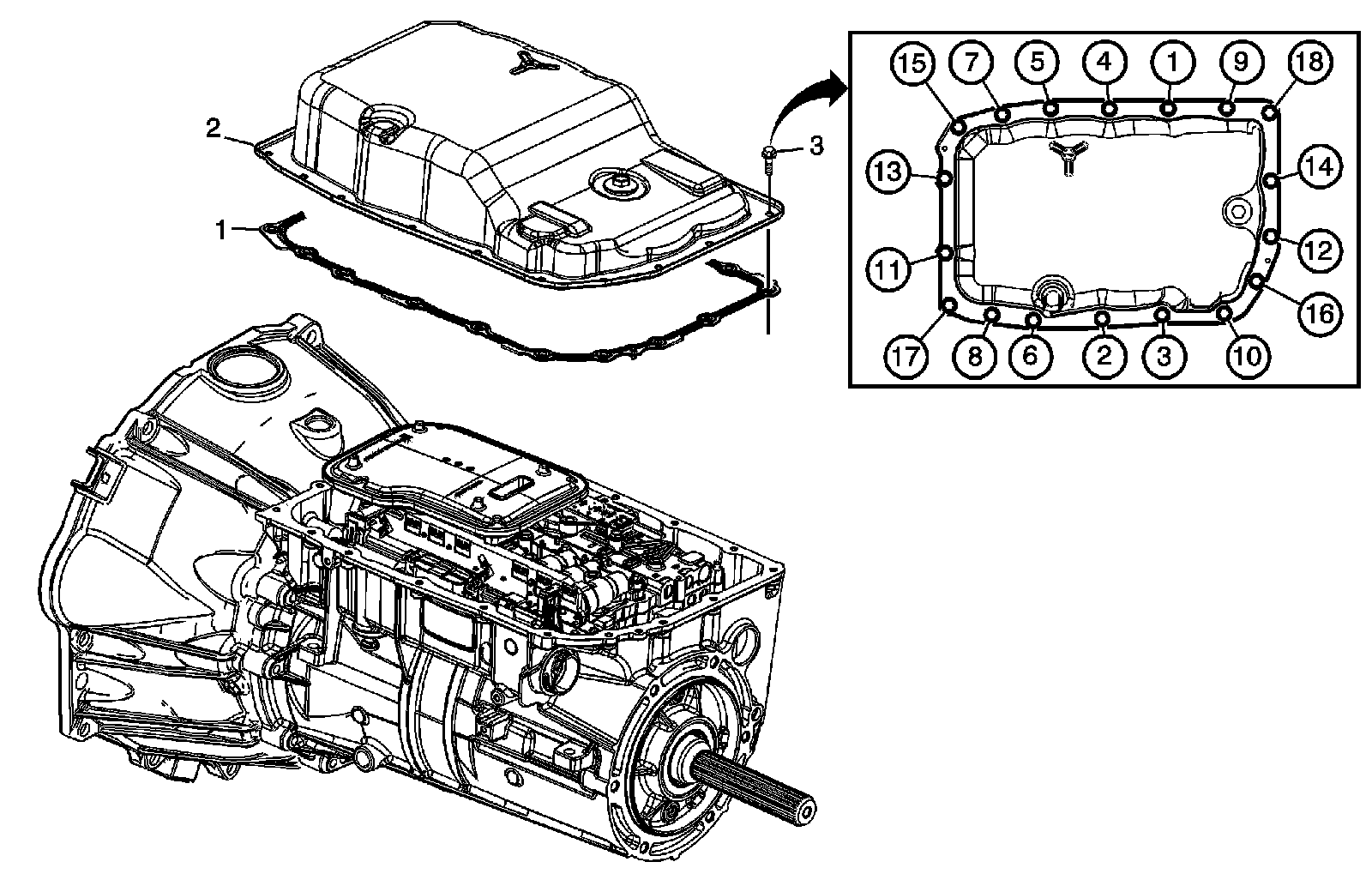

Transmission Fluid Pan Installation (6L80)





Transmission Fluid Pan Bolt 9 Nm (80 lb in)
